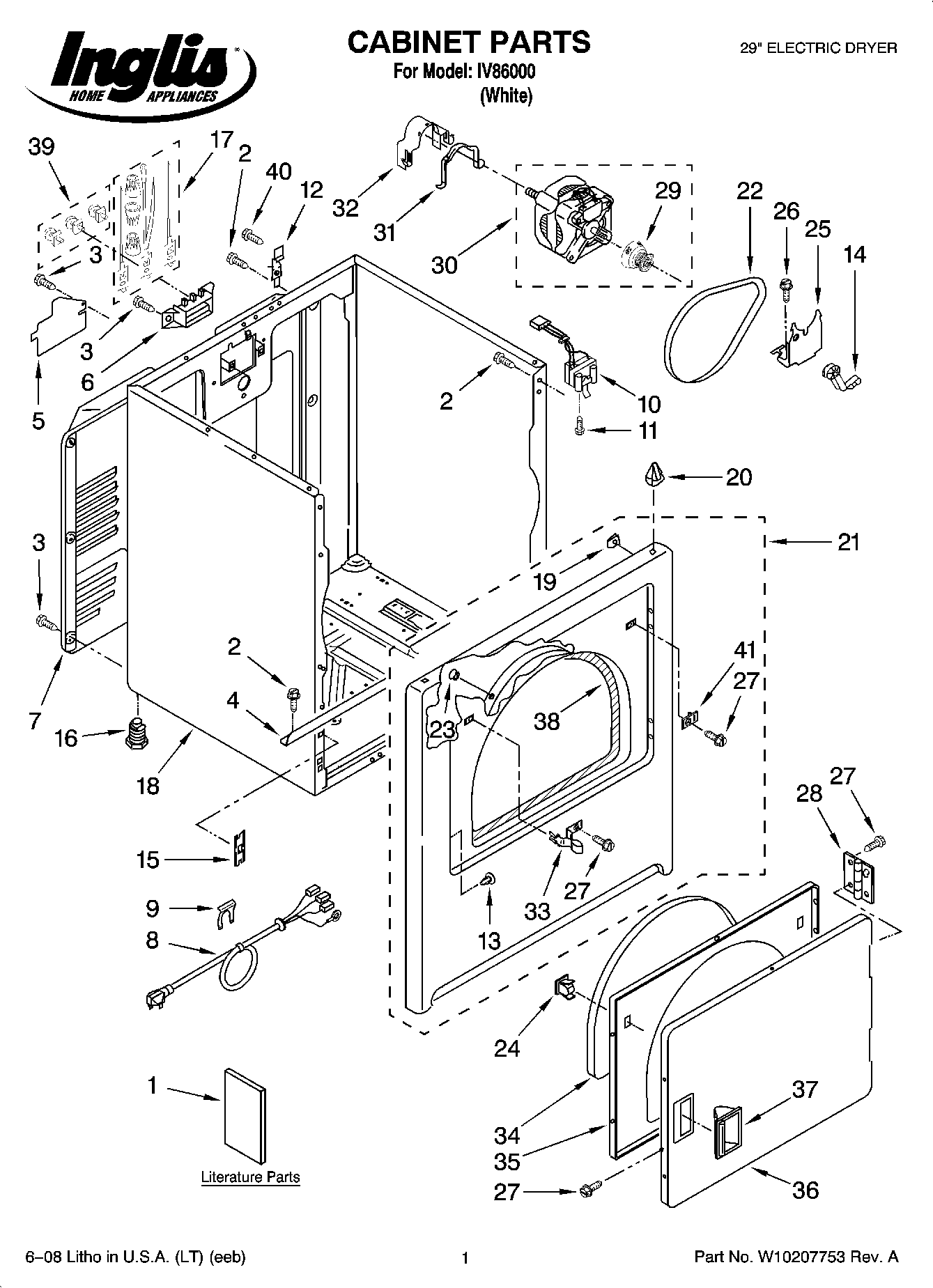

IV86000 01 – CABINET PARTS

IV86000 01 – CABINET PARTS

Written by

in

IV86000 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation, Instruction
1Wiring Diagram
1OWNERS MANUAL
1Sheet, Cycle Feature
1WPL 677818
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5Cover, Block
6WP3397659 Whirlpool Terminal Block
7280043 Whirlpool Rear Panel
8CORD-POWER
9W11712577 Whirlpool Clip
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP8066217 Whirlpool Hinge
13WP3404413 Whirlpool Plug
14WP691366 Whirlpool Dryer Idler Pulley Assembly
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
22341241 Whirlpool Dryer Drum Belt
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25WP348780 Whirlpool Base
263400500 Whirlpool Screw
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
30279827 Whirlpool Dryer Drive Motor
31WP660658 Whirlpool Clamp
32WP3404162 Whirlpool Clamp
33W11429589 Whirlpool Strike
34SEAL-DOOR DRYER
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3403630 Whirlpool Plug
