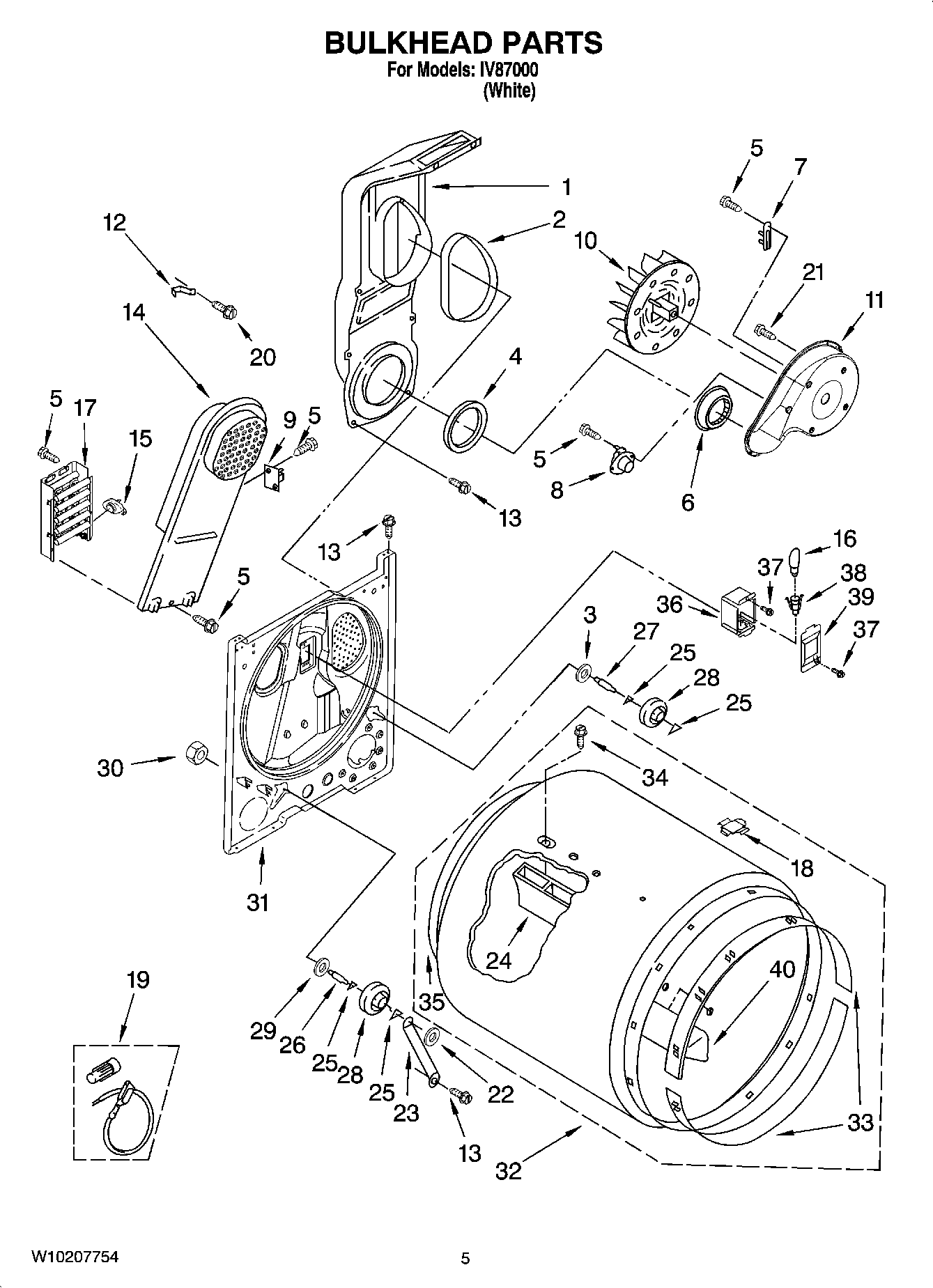

IV87000 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

IV87000 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

IV87000 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392901 Whirlpool Biscuit Spray Paint
WPL ARI77759A6
3406839 Whirlpool Drying Rack
4392899 Whirlpool Biscuit Touch-Up Paint
4392065 Whirlpool Dryer Maintenance Kit
W11224254 Whirlpool Test Kit
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1W11117429 Whirlpool Chute Assembly
2SEAL
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12CLIP, HEATER BOX
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16WP22002263 Whirlpool Dryer 10W Light Bulb
17Element, Heater
188066086 Whirlpool Plug
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21WP488729 Whirlpool Refrigerator Door Screw
22WP90296 Whirlpool Clip
23W11684613 Whirlpool Bracket
24BAFFLE-DRM
25WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26SHAFT SUPPORT ROLLER DRYER
27SHAFT SUPPORT ROLLER DRYER
28349241T Whirlpool Dryer Drum Support Roller Kit
29WP348197 Whirlpool Washer Assembly
30WP3359452 Whirlpool Nut
31W10828911 Whirlpool Bulkhead Assembly
32W10899578 Whirlpool Dryer Drum Assembly
33279441 Whirlpool Front Bearing Ring
34WPW10109200 Whirlpool Screw
35W10612022 Whirlpool Felt Seal
363977373 Whirlpool Bracket
38W11700522 Whirlpool Socket
39W11226088 Whirlpool Lens Assembly
40WP3403636 Whirlpool Drum Baffle
