IV87001 02 – TOP AND CONSOLE PARTS

IV87001 02 – TOP AND CONSOLE PARTS

Written by

in

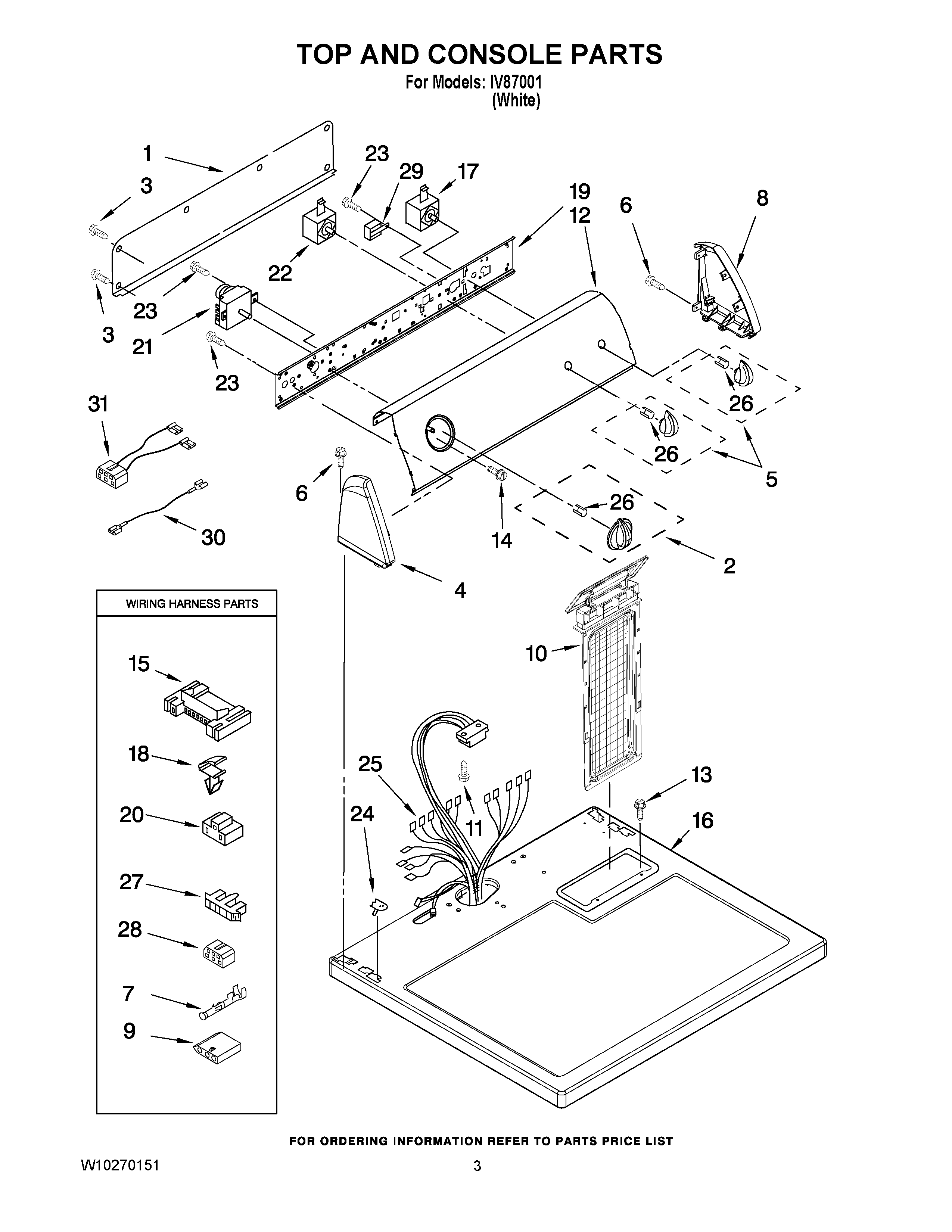

IV87001 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Timer Knob Assembly
3WP693995 Whirlpool Screw
5Knob, Control
6WP388326 Whirlpool Screw
7WP94614 Whirlpool Terminal
8W10820038 Whirlpool Endcap
93936144 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11SCREW
12Panel, Control
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WP3398095 Whirlpool Dryer Start Relay
18WP3394427 Whirlpool Clip
19Bracket, Control
203401144 Whirlpool Connector
21WPW10185982 Whirlpool Timer
22WP3399640 Whirlpool Switch
23WP90767 Whirlpool Screw
24WP357213 Whirlpool Hinge Stopper
25HARNESS, WIRING
26WP8536939 Whirlpool Spring Clip
27Connector, Timer
28Block, Disconnect
29WP694419 Whirlpool Buzzer Adjuster
30Wire, Jumper (Black)
313976562 Whirlpool Wire Harness
