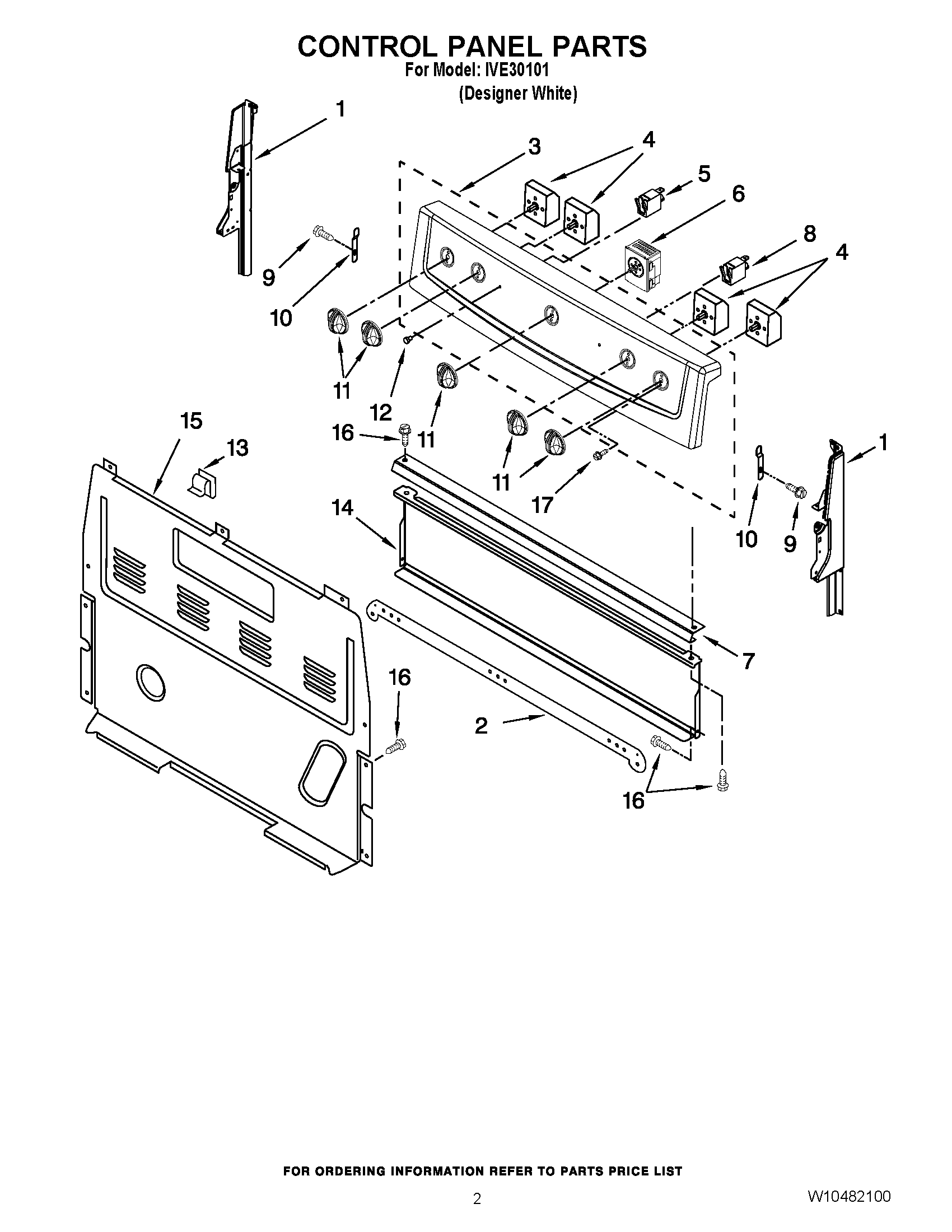

IVE30101 02 – CONTROL PANEL PARTS

IVE30101 02 – CONTROL PANEL PARTS

Written by

in

IVE30101 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2Guard, Wire
3PANEL, BACKGUARD (WHITE)
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP9762215 Whirlpool Oven Switch
7W10525121 Whirlpool Control Bracket
8WP8523266 Whirlpool Indicator Light
9WP3196175 Whirlpool Screw
103196200 Whirlpool Clip
11WPW10203524 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13WP8273564 Whirlpool Clip
14W10134247 Whirlpool Heat Shield
15WP8272473 Whirlpool Rear Cover
16SCREW
17WP3400882 Whirlpool Screw
