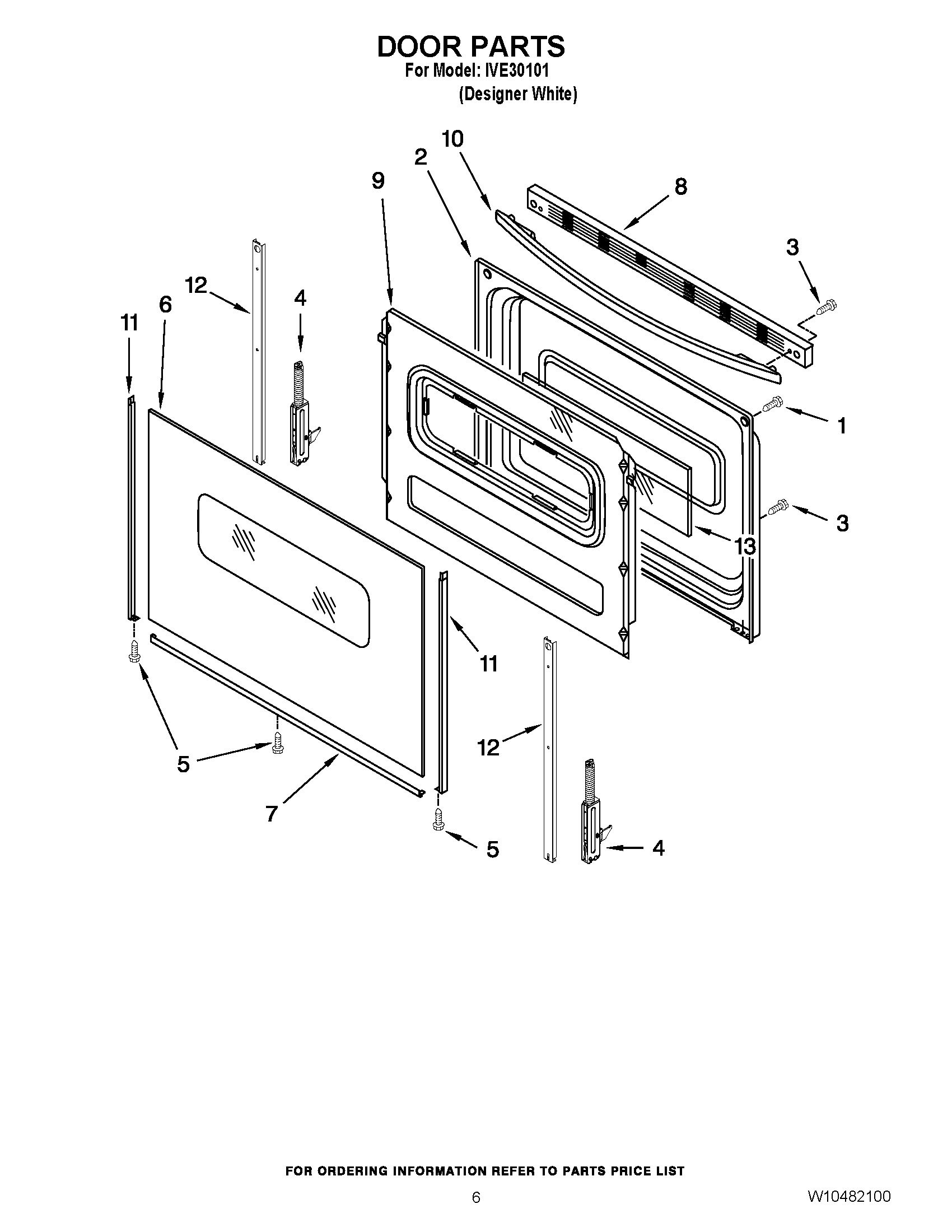

IVE30101 05 – DOOR PARTS

Products

PositionProduct
1WP3196164 Whirlpool Screw
29761340 Whirlpool Oven Door Liner
3W10777162 Whirlpool Screw
4WPW10299225 Whirlpool Door Hinge
4WPW10299227 Whirlpool Range Door Hinge
5W10491985 Whirlpool Screw
6WP9762476 Whirlpool Door Glass
7WP8523175 Whirlpool Door Trim Assembly
8WPW10016370 Whirlpool Door Trim
99761500 Whirlpool Oven Retainer
10W10202219 Whirlpool Door Handle Assembly
11WP8523172 Whirlpool Left Door Trim
11WP8523166 Whirlpool Door Trim
12W11502236 Whirlpool Door Trim
13WP9758163 Whirlpool Door Glass Assembly
