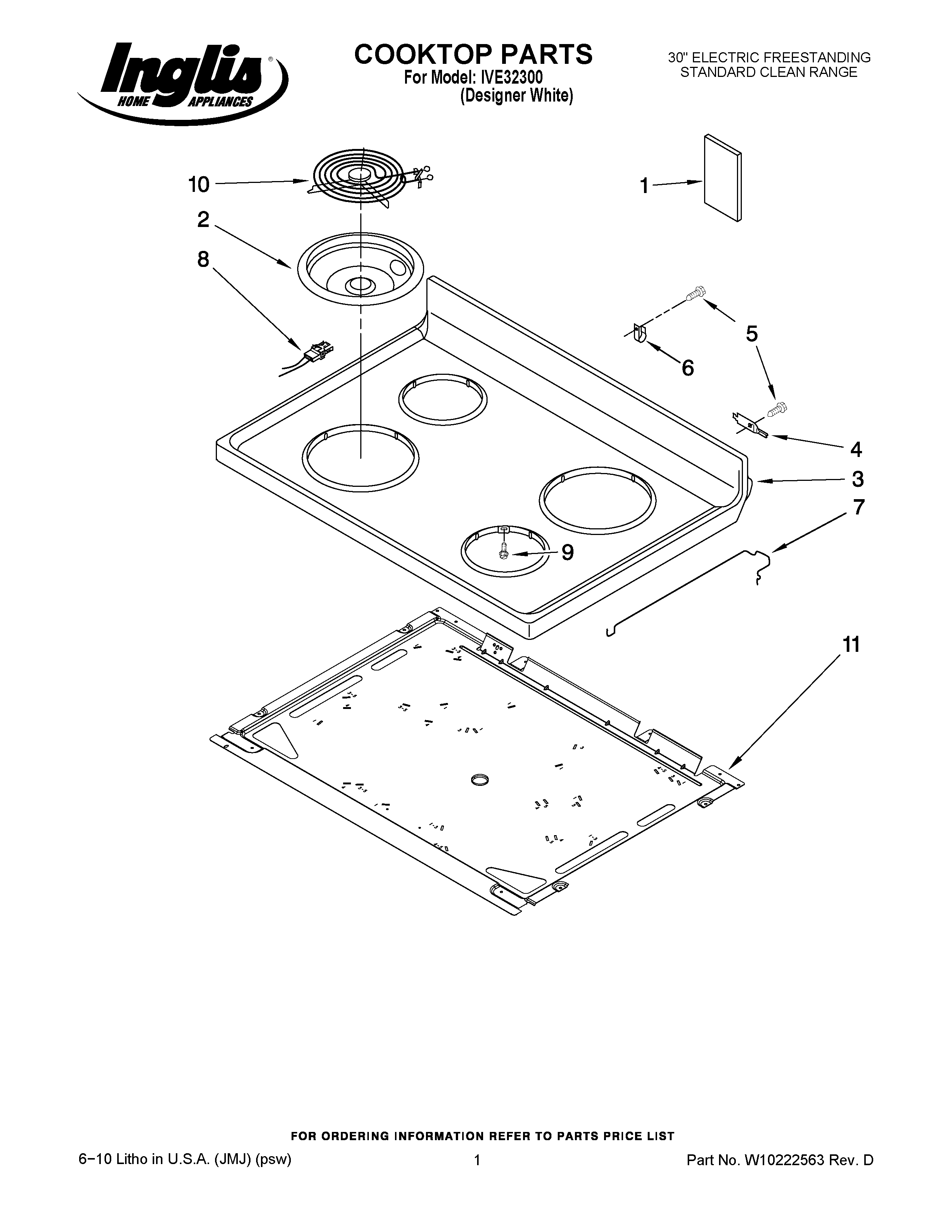

IVE32300 01 – COOKTOP PARTS

IVE32300 01 – COOKTOP PARTS

Written by

in

IVE32300 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8814399 Whirlpool Receptacle Kit
9WP3196154 Whirlpool Screw Assembly
10WP660532 Whirlpool Oven Surface Element
10WPW10259865 Whirlpool Range 8" Surface Element
11W10170526 Whirlpool Pan
