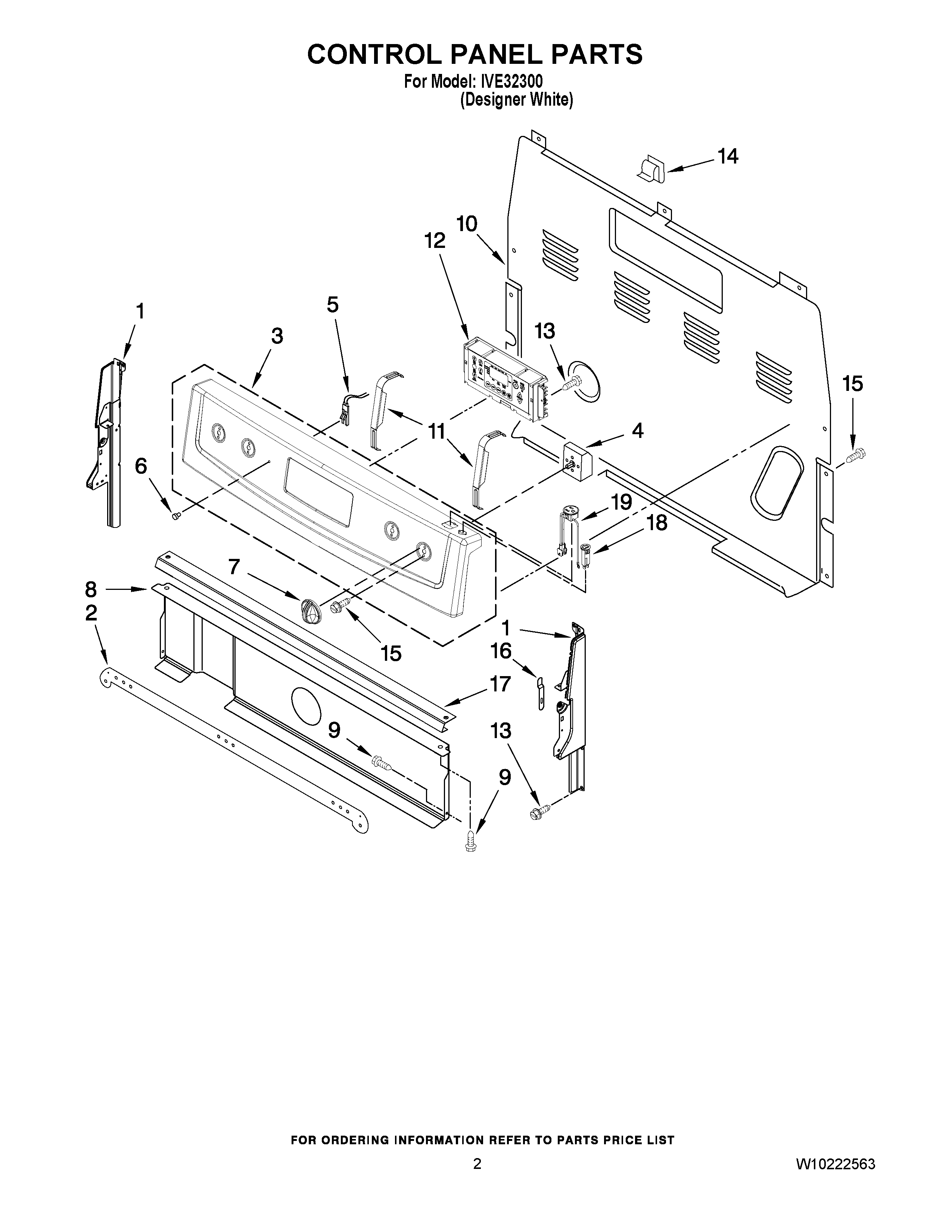

IVE32300 02 – CONTROL PANEL PARTS

IVE32300 02 – CONTROL PANEL PARTS

Written by

in

IVE32300 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2Guard, Wire
3Panel, Console (White)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
8Shield, Heat
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W11230932 Whirlpool Bracket Mounting
12WPW10476684 Whirlpool Electronic Control Board + Core
13SCREW
14WP8273564 Whirlpool Clip
15WP3400882 Whirlpool Screw
163196200 Whirlpool Clip
17W10525121 Whirlpool Control Bracket
18WP9757601 Whirlpool Breaker
19W10849725 Whirlpool Electrical Outlet
