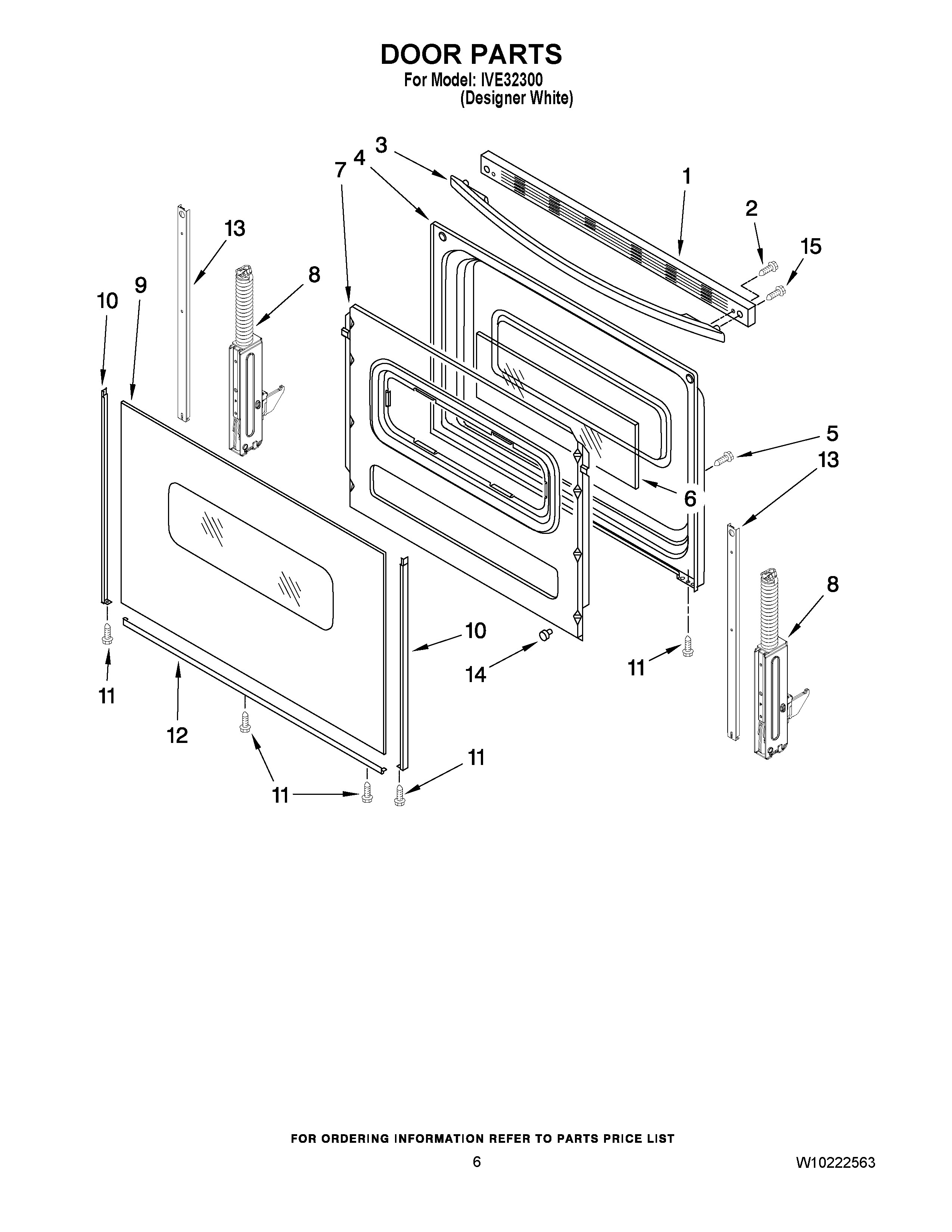

IVE32300 05 – DOOR PARTS

IVE32300 05 – DOOR PARTS

Written by

in

IVE32300 05 – DOOR PARTS

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11685635 Whirlpool Retainer
8W10347465 Whirlpool Door Hinge
9WPW10118454 Whirlpool Door Outer Glass White
10WP8523172 Whirlpool Left Door Trim
10WP8523166 Whirlpool Door Trim
11W10491985 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
13W11502236 Whirlpool Door Trim
14238614 Whirlpool Bumper Hinge
15W10777162 Whirlpool Screw
