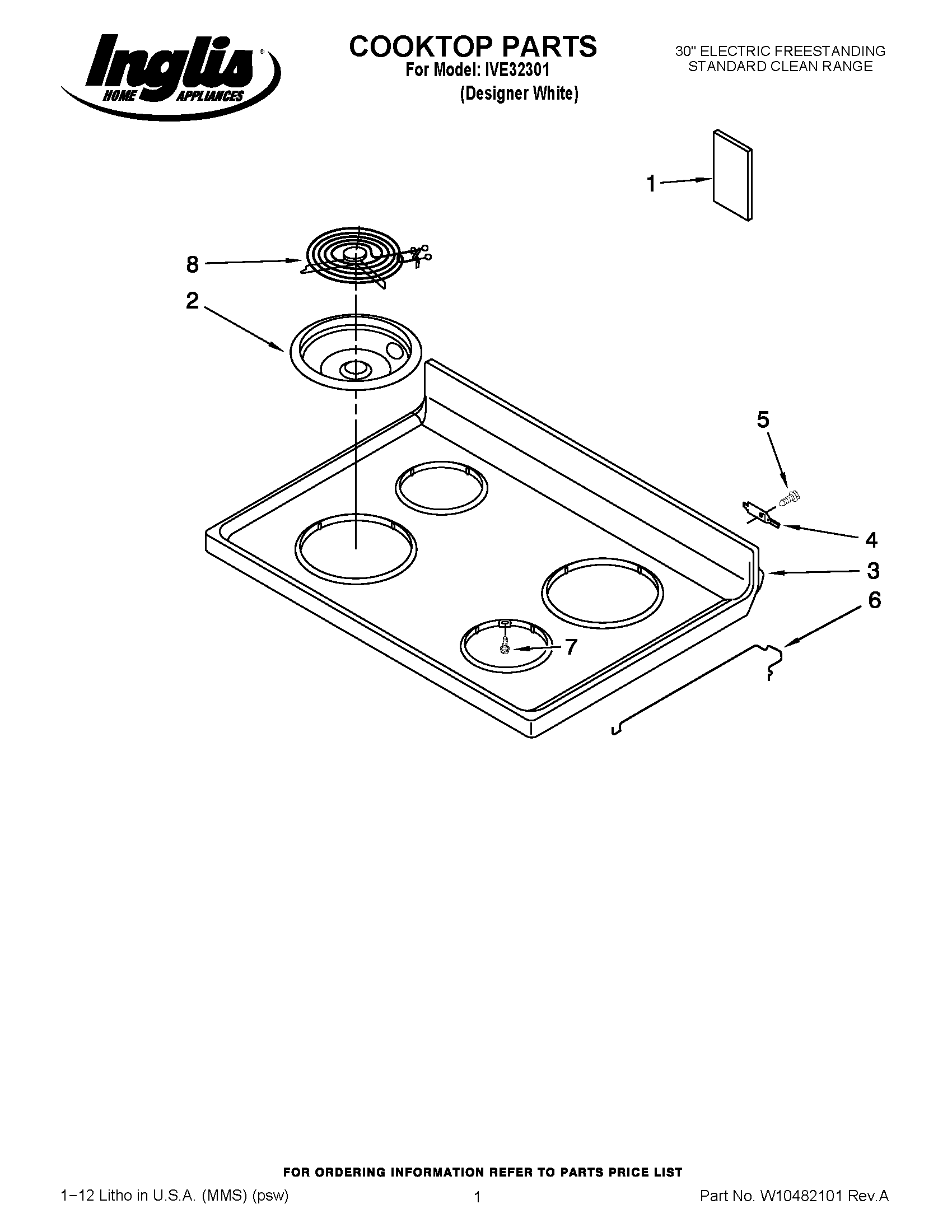

IVE32301 01 – COOKTOP PARTS

IVE32301 01 – COOKTOP PARTS

Written by

in

IVE32301 01 – COOKTOP PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTRUCTIONS, INSTALLATION
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1SHEET, TECH (ENGLISH)
1SHEET, TECH (FRENCH)
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP3195812 Whirlpool Cooktop Rod
7WP3196154 Whirlpool Screw Assembly
8WPW10259865 Whirlpool Range 8" Surface Element
8WPW10259868 Whirlpool Surface Heating Element
