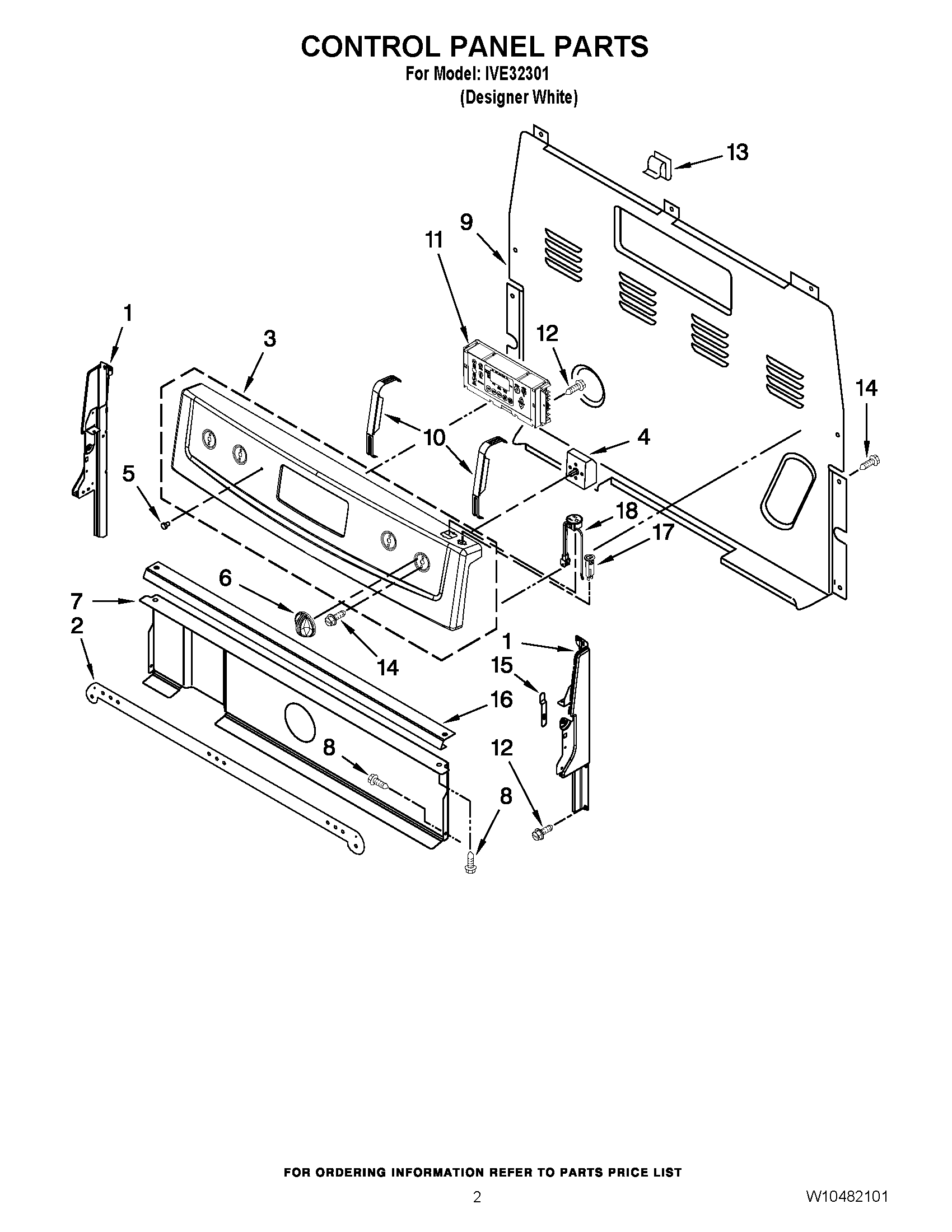

IVE32301 02 – CONTROL PANEL PARTS

IVE32301 02 – CONTROL PANEL PARTS

Written by

in

IVE32301 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2Guard, Wire
3PANEL, CONSOLE (WHITE)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP3196068 Whirlpool Light Lens
6WP9761962 Whirlpool Range Stove Burner Control Knob
7W10134247 Whirlpool Heat Shield
8WP3196175 Whirlpool Screw
9WP8272473 Whirlpool Rear Cover
10W11230932 Whirlpool Bracket Mounting
11WPW10476684 Whirlpool Electronic Control Board + Core
12SCREW
13WP8273564 Whirlpool Clip
14WP3400882 Whirlpool Screw
153196200 Whirlpool Clip
16W10525121 Whirlpool Control Bracket
17WP9757601 Whirlpool Breaker
18W10849725 Whirlpool Electrical Outlet
