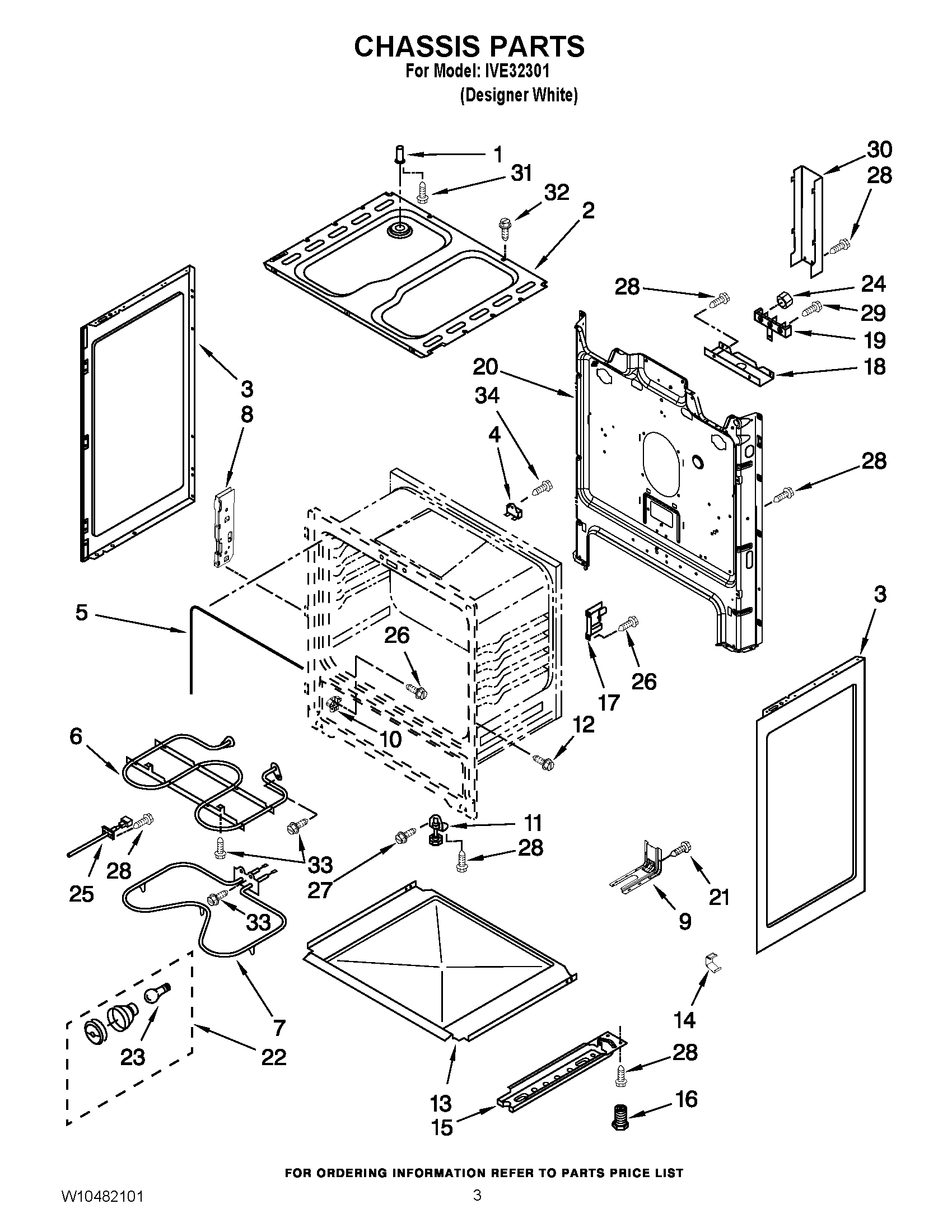

IVE32301 03 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	W11311894 Whirlpool Insulation
1	9755804 Whirlpool Oven Vent Tube
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
4	WP3196548 Whirlpool Thermal Fuse
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	W10647259 Whirlpool Hinge Receiver
9	W11447673 Whirlpool Range Tip Anchor
10	GLIDE-RANGE DRAWER KIT
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WP8203546 Whirlpool Terminal Block
20	BACK, MAIN
21	SCREW, ANTI-TIP KIT
22	W11594027 Whirlpool Range Oven Light Socket
23	RANGE ONLY 40W 120V APPL BULB
24	Nut
25	WPW10181986 Whirlpool Oven Sensor
26	WP3196557 Whirlpool Screw
28	SCREW
29	WP3400016 Whirlpool Screw Assembly
30	WPW10326122 Whirlpool Black Cover
31	WP3196567 Whirlpool Screw
32	WP3196175 Whirlpool Screw
33	WP3196154 Whirlpool Screw Assembly
34	3196172 Whirlpool Oven Screw
