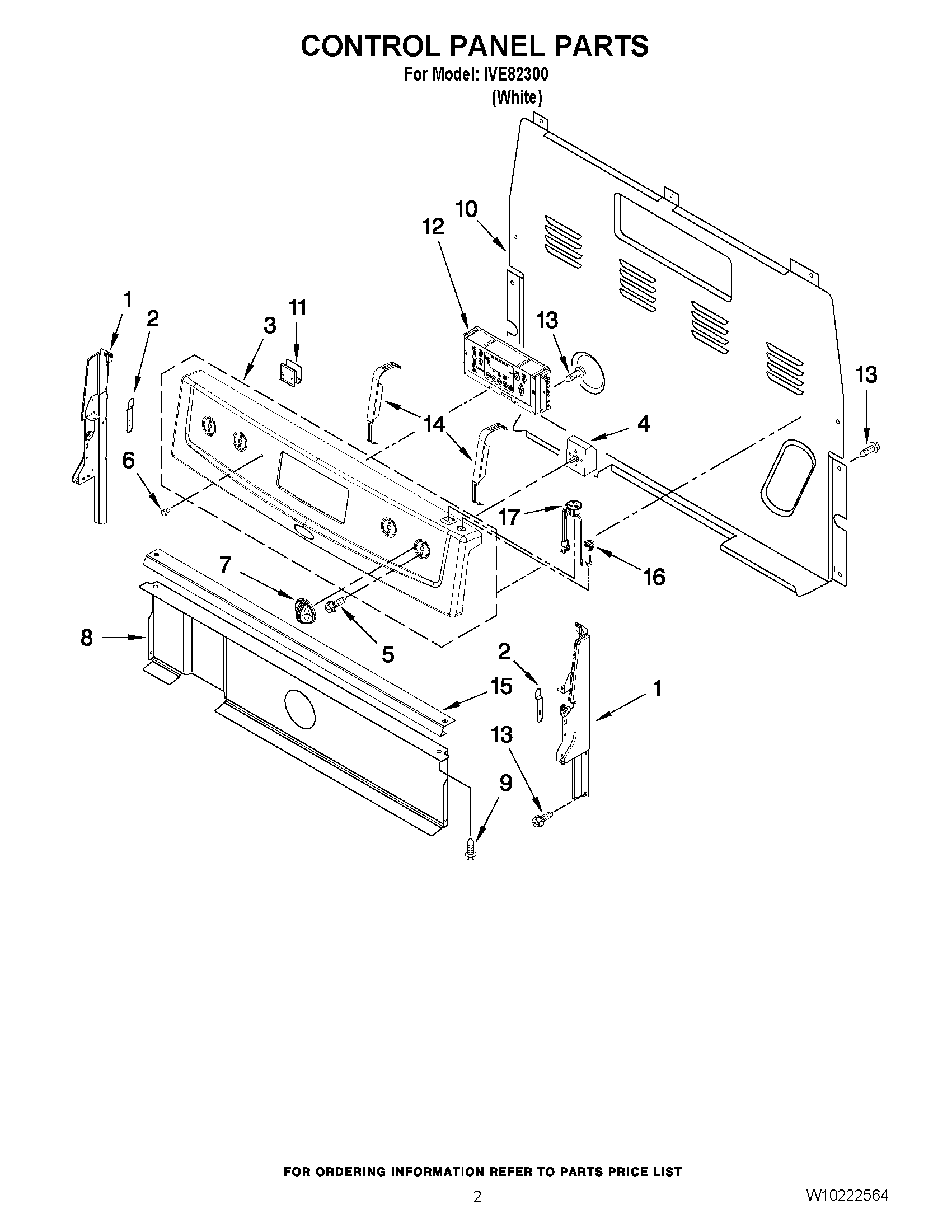

IVE82300 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	3196200 Whirlpool Clip
3	Panel, Console (White)
4	SWITCH-INF
4	WPW10149355 Whirlpool Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP3400882 Whirlpool Screw
6	WP3196068 Whirlpool Light Lens
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	WP8273564 Whirlpool Clip
12	WPW10476684 Whirlpool Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	W10525121 Whirlpool Control Bracket
16	WP9757601 Whirlpool Breaker
17	W10849725 Whirlpool Electrical Outlet
