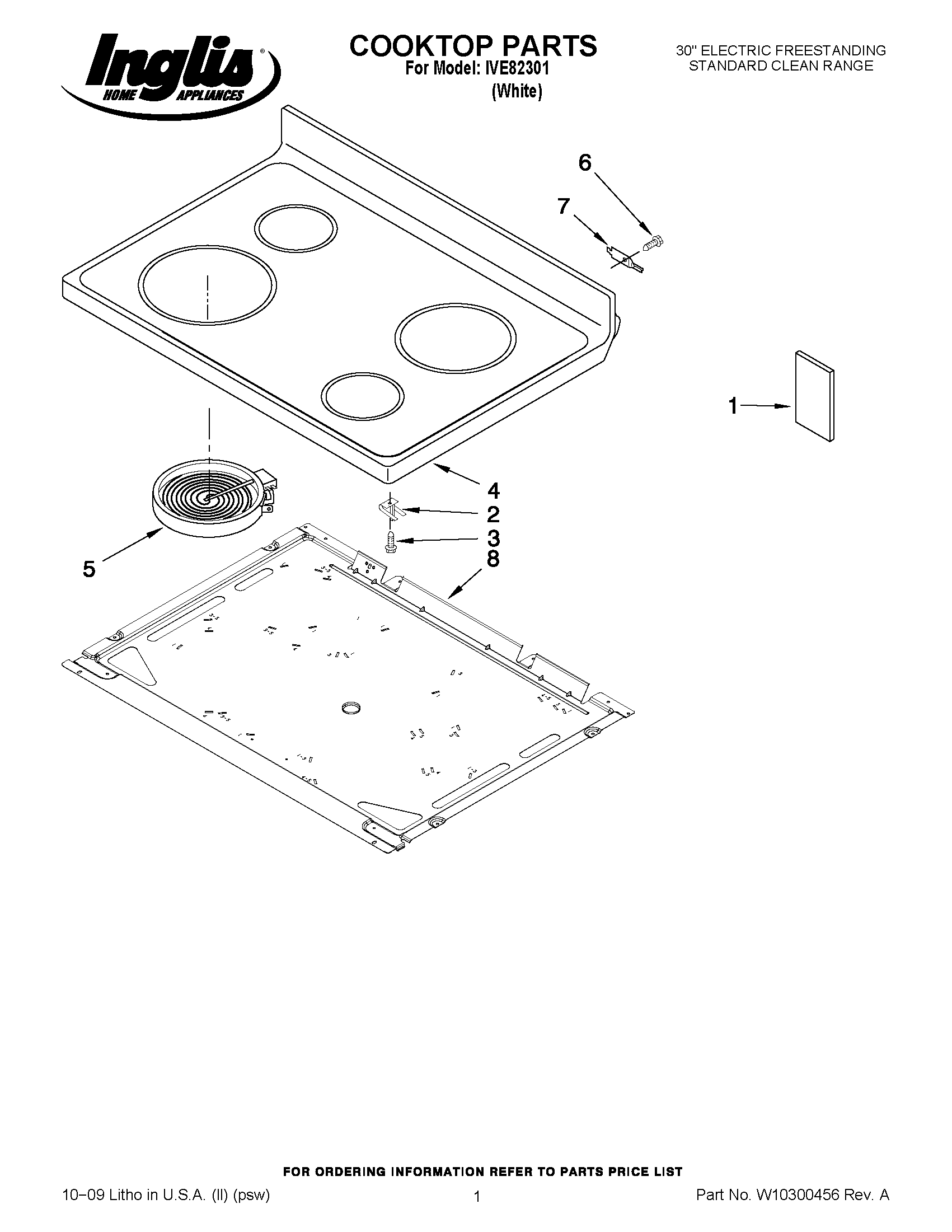

IVE82301 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Owner`s Manual
1	WIRING DIAGRAM (ENGLISH)
1	WIRING DIAGRAM (FRENCH)
1	Anti-Tip Template (English/French)
1	Anti-Tip Template (English/Spanish)
1	Safer Cooking Tips (French)
1	Instructions Installation
2	WPW10225448 Whirlpool Spring Assembly
3	WP3196170 Whirlpool Screw
4	WPW10254671 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5	W10823698 Whirlpool Surface Element Right Rear
5	W10823711 Whirlpool Surface Element Left Front and Right Rear
6	WP3196557 Whirlpool Screw
7	WP3195060 Whirlpool Cooktop Pin
8	W10170526 Whirlpool Pan
