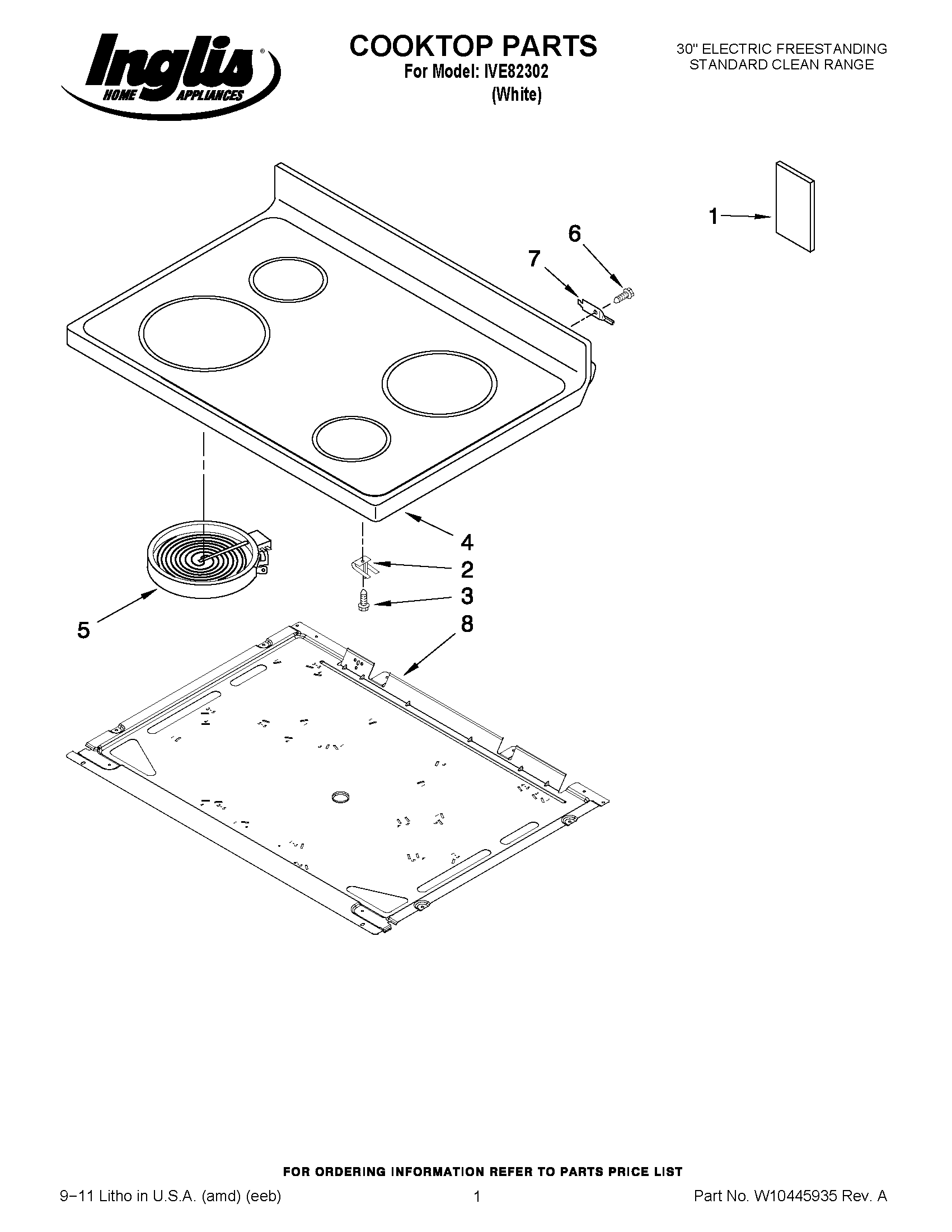

IVE82302 01 – COOKTOP PARTS

IVE82302 01 – COOKTOP PARTS

Written by

in

IVE82302 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Owner`s Manual
1TECH SHEET (ENGLISH)
1Instructions Installation
1TECH SHEET (FRENCH)
1Anti-Tip Template (English/Spanish)
1Safer Cooking Tips (French)
1Anti-Tip Template (English/French)
2WPW10225448 Whirlpool Spring Assembly
3WP3196170 Whirlpool Screw
4WPW10254671 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
5WP8273993 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
6WP3196557 Whirlpool Screw
7WP3195060 Whirlpool Cooktop Pin
8W10170526 Whirlpool Pan
