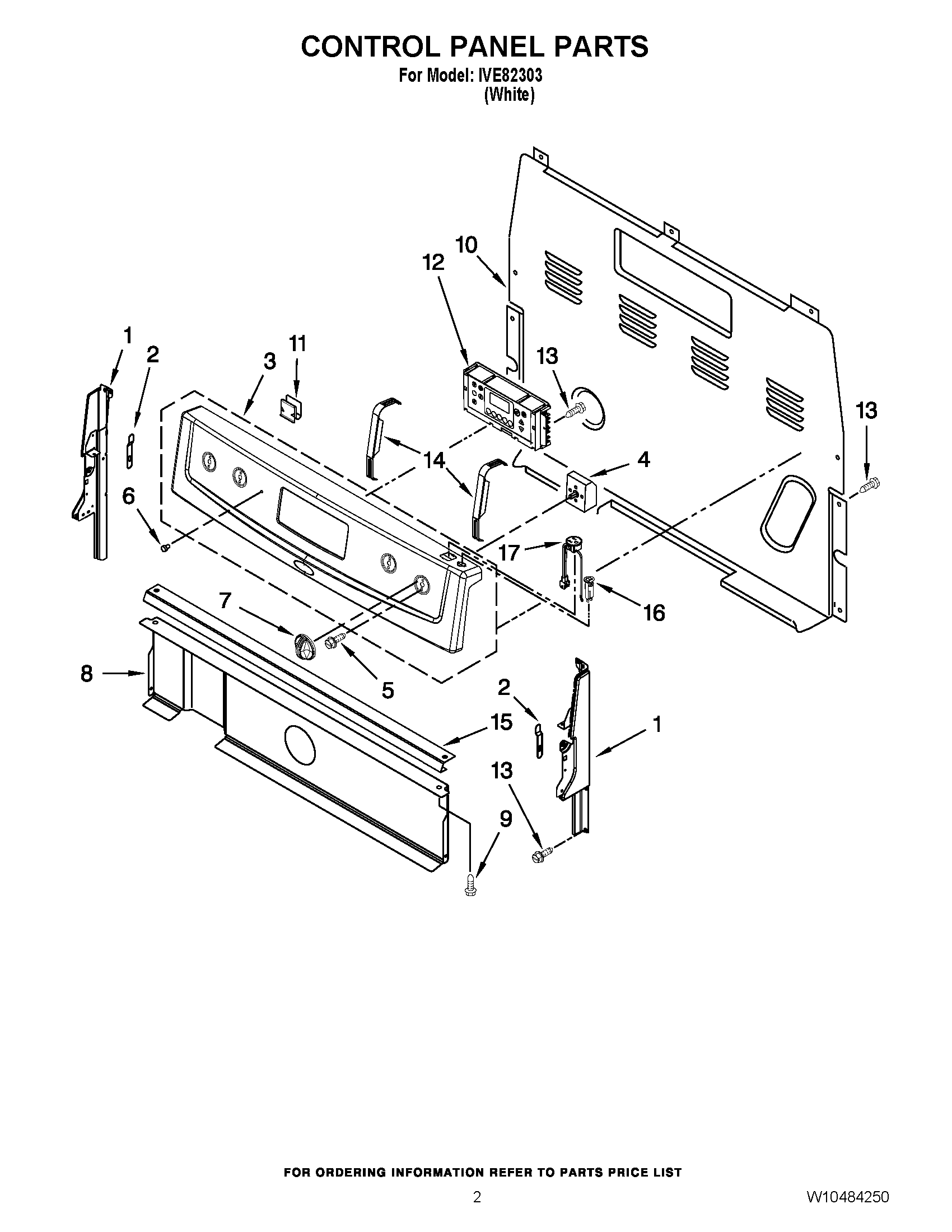

IVE82303 02 – CONTROL PANEL PARTS

IVE82303 02 – CONTROL PANEL PARTS

Written by

in

IVE82303 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
23196200 Whirlpool Clip
3Panel, Console (White)
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4SWITCH-INF
5WP3400882 Whirlpool Screw
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12WPW10476684 Whirlpool Electronic Control Board + Core
13WP3196557 Whirlpool Screw
14W11230932 Whirlpool Bracket Mounting
15W10525121 Whirlpool Control Bracket
16WP9757601 Whirlpool Breaker
17W10849725 Whirlpool Electrical Outlet
