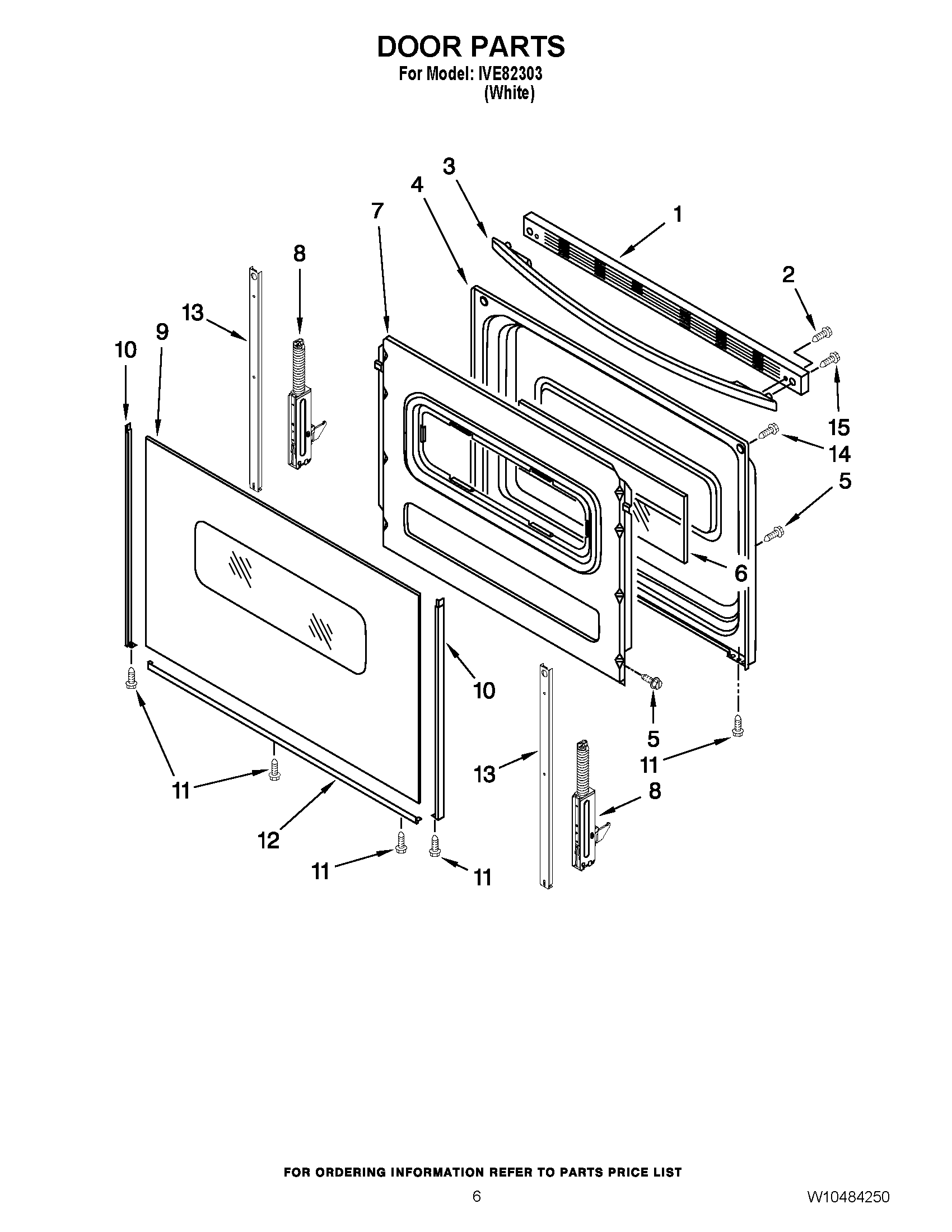

IVE82303 05 – DOOR PARTS

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
2WP3196175 Whirlpool Screw
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11685635 Whirlpool Retainer
8WPW10299225 Whirlpool Door Hinge
8WPW10299227 Whirlpool Range Door Hinge
9WPW10118454 Whirlpool Door Outer Glass White
10WP8523172 Whirlpool Left Door Trim
10WP8523166 Whirlpool Door Trim
11W10491985 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
13W11502236 Whirlpool Door Trim
14W10777162 Whirlpool Screw
15WP3196164 Whirlpool Screw
