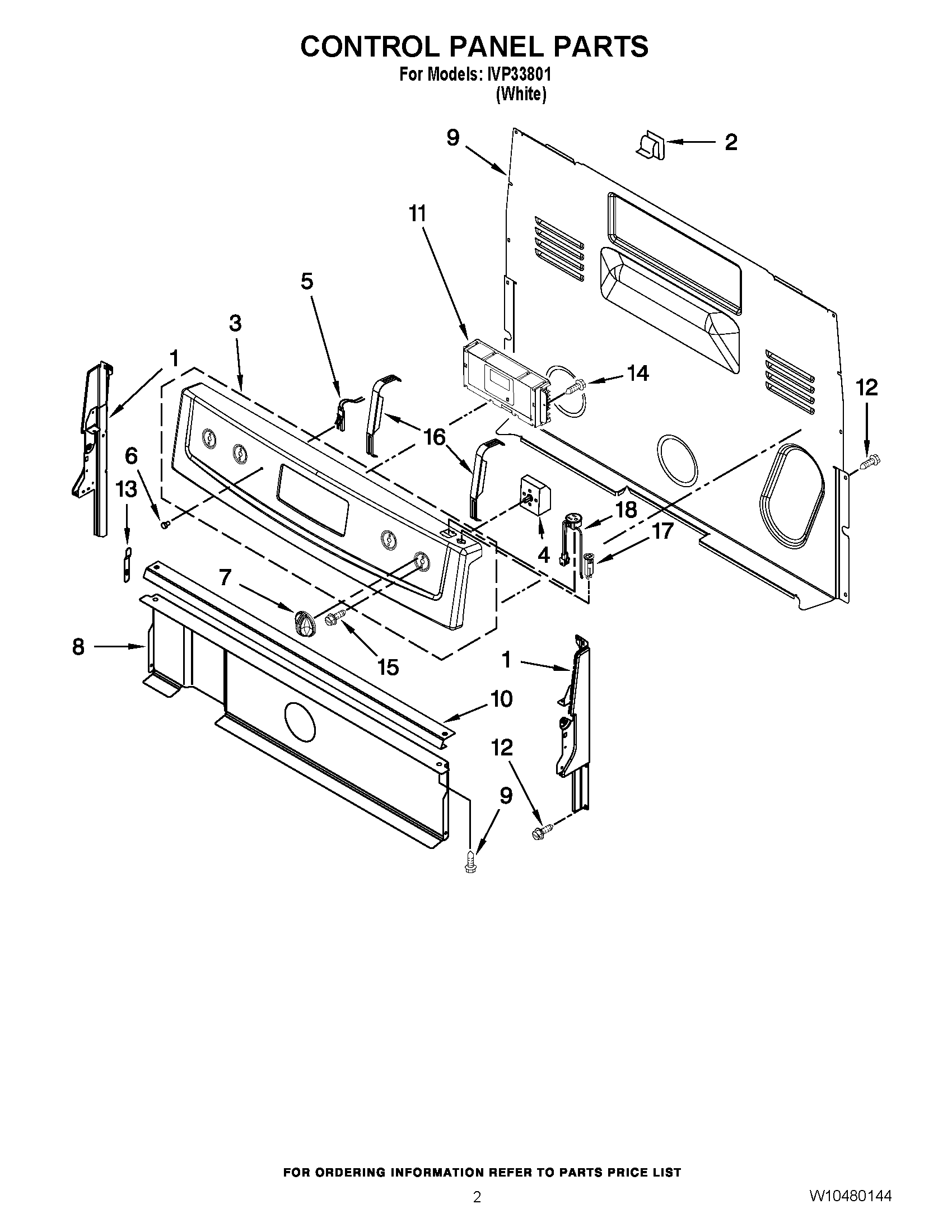

IVP33801 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3PANEL, CONSOLE (WHITE)
4WP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
9WP8272473 Whirlpool Rear Cover
10W10525121 Whirlpool Control Bracket
12SCREW
133196200 Whirlpool Clip
14WP3196557 Whirlpool Screw
15WP3400882 Whirlpool Screw
16W11230932 Whirlpool Bracket Mounting
17WP9757601 Whirlpool Breaker
18W10849725 Whirlpool Electrical Outlet
