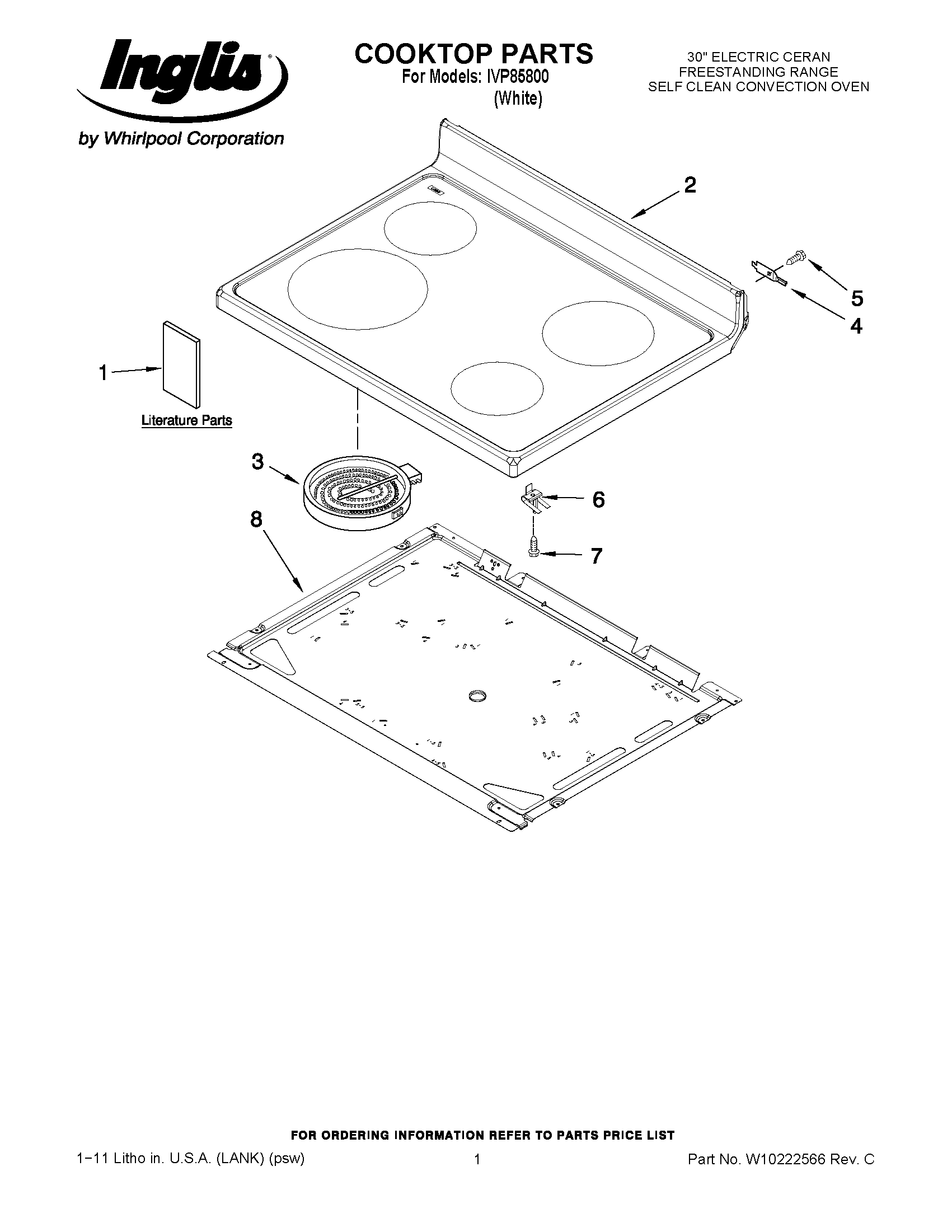

IVP85800 01 – COOKTOP PARTS

IVP85800 01 – COOKTOP PARTS

Written by

in

IVP85800 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet (English)
1Owner`s Manual
1Instructions Installation
1Tech Sheet (French)
1Anti-Tip Template (English/Spanish)
1Safer Cooking Tips (French)
1Anti-Tip Template (English/French)
2WPW10254671 Whirlpool Cooktop
3W10823692 Whirlpool Dual Radiant Element
3W10823711 Whirlpool Surface Element Left Front and Right Rear
3W10823698 Whirlpool Surface Element Right Rear
4WP3195060 Whirlpool Cooktop Pin
5WP3196557 Whirlpool Screw
6WPW10225448 Whirlpool Spring Assembly
7WP3196170 Whirlpool Screw
8W10170526 Whirlpool Pan
