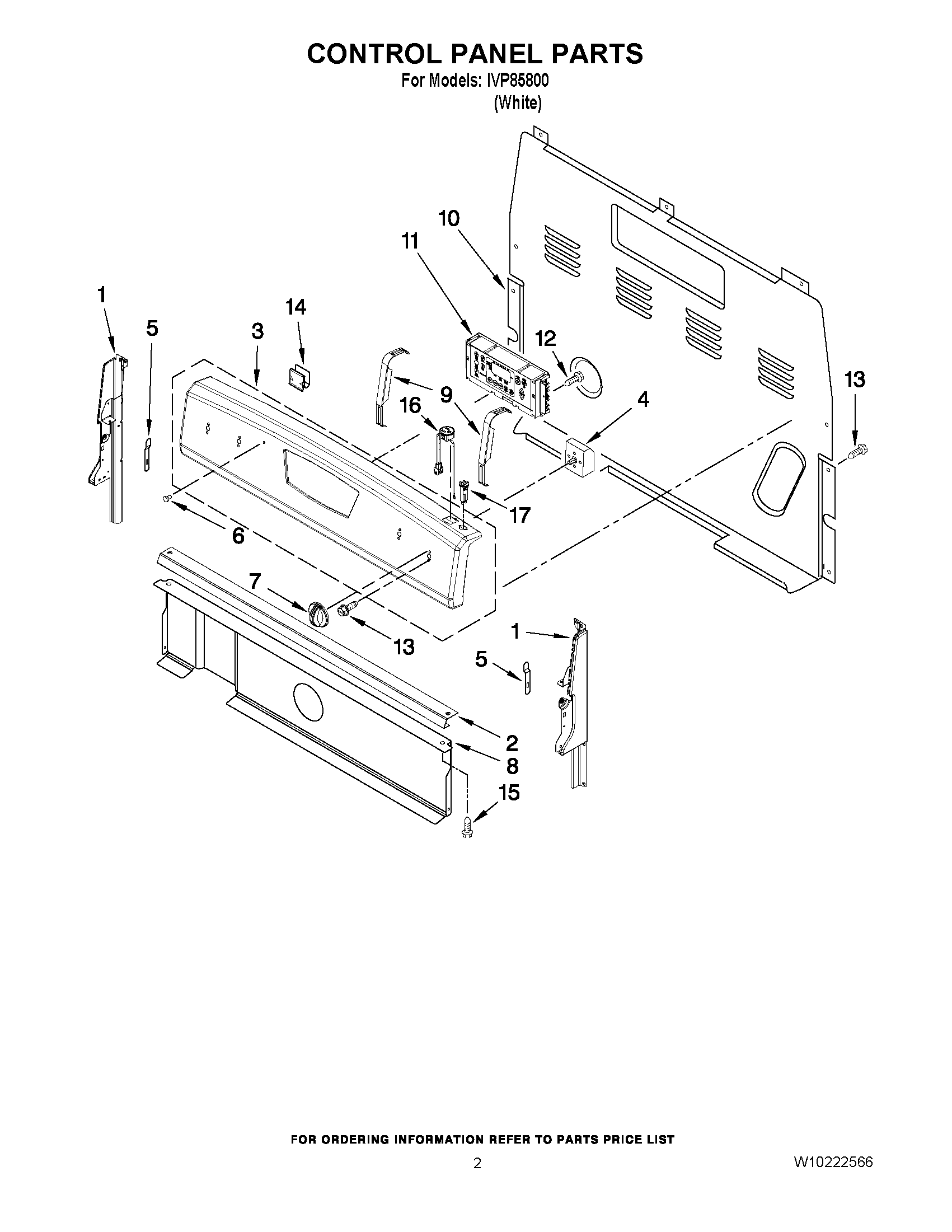

IVP85800 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3Panel, Console (White)
4WP3149404 Whirlpool Oven Surface Element Switch
4WPW10149355 Whirlpool Infinite Switch
4SWITCH-INF
53196200 Whirlpool Clip
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
9W11230932 Whirlpool Bracket Mounting
10WP8272473 Whirlpool Rear Cover
11WPW10173537 Whirlpool Electronic Control Board
12SCREW
13WP3400882 Whirlpool Screw
14WP8273564 Whirlpool Clip
15WP3400832 Whirlpool Screw
153196166 Whirlpool Screw
16W10849725 Whirlpool Electrical Outlet
17WP9757601 Whirlpool Breaker
