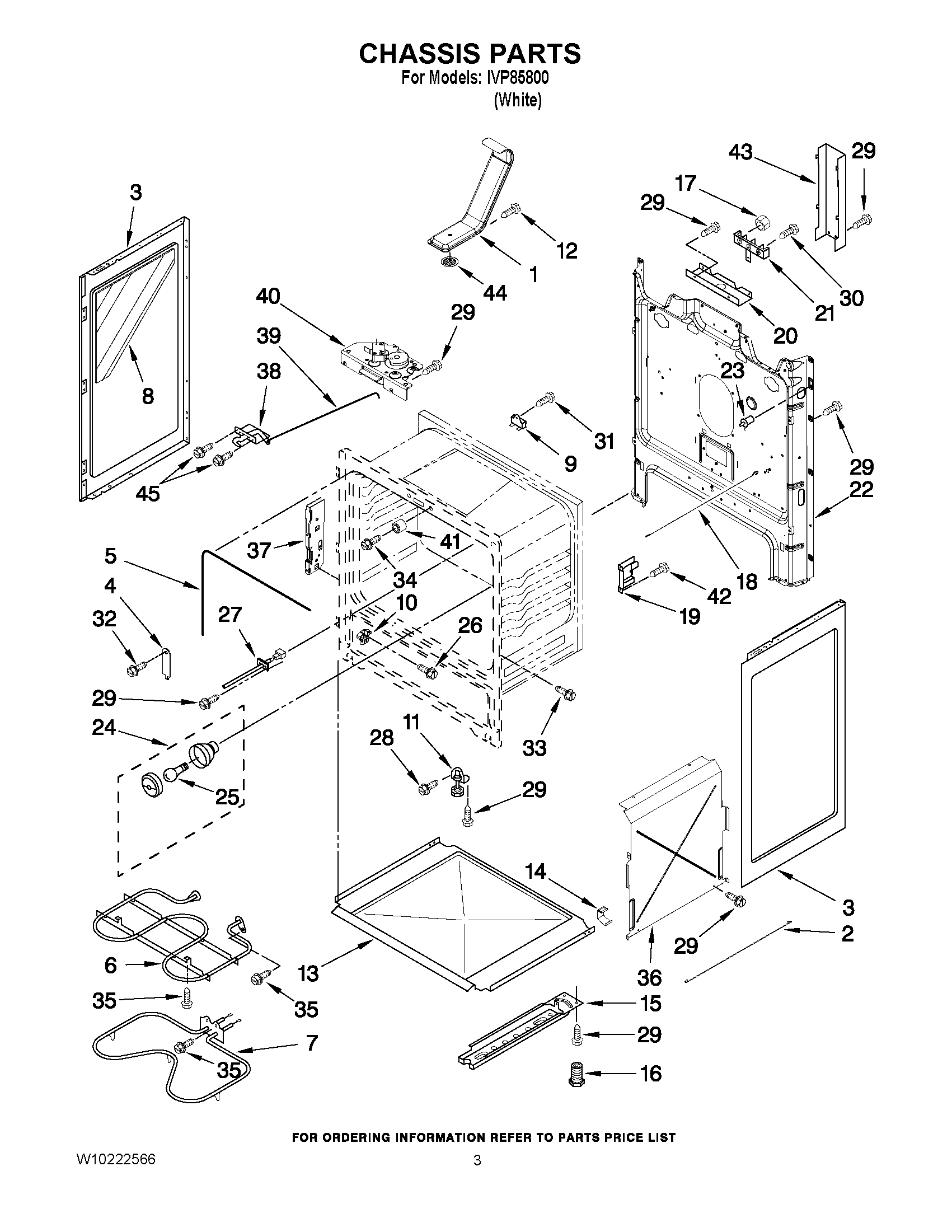

IVP85800 03 – CHASSIS PARTS

Products

Position	Product
NI	WP8272612 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	8053915 Whirlpool Oven Insulation
1	WPW10134285 Whirlpool Vent Tube
2	W10465685 Whirlpool Retainer Assembly
3	WPW10575396 Whirlpool Side Panel
4	9761517 Whirlpool Oven Clip Assembly
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	W10182346 Whirlpool Insulation Assembly
9	WP3196548 Whirlpool Thermal Fuse
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	Nut
18	9757239 Whirlpool Oven Door Rod
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	Back, Main
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3196175 Whirlpool Screw
27	WPW10181986 Whirlpool Oven Sensor
28	Screw
29	SCREW
30	WP3400016 Whirlpool Screw Assembly
31	3196172 Whirlpool Oven Screw
32	W10777162 Whirlpool Screw
33	WPW10067840 Whirlpool Screw
34	WP3400832 Whirlpool Screw
35	WP3196154 Whirlpool Screw Assembly
36	W10450380 Whirlpool Retainer
37	W10647259 Whirlpool Hinge Receiver
38	WP9761013 Whirlpool Door Latch
39	Rod, Latch
40	WPW10107840 Whirlpool Door Latch
41	W10877054 Whirlpool Spacer Assembly
42	WP3196557 Whirlpool Screw
43	WPW10326122 Whirlpool Black Cover
44	9761301 Whirlpool Oven Screen
45	W11169708 Whirlpool Screw
