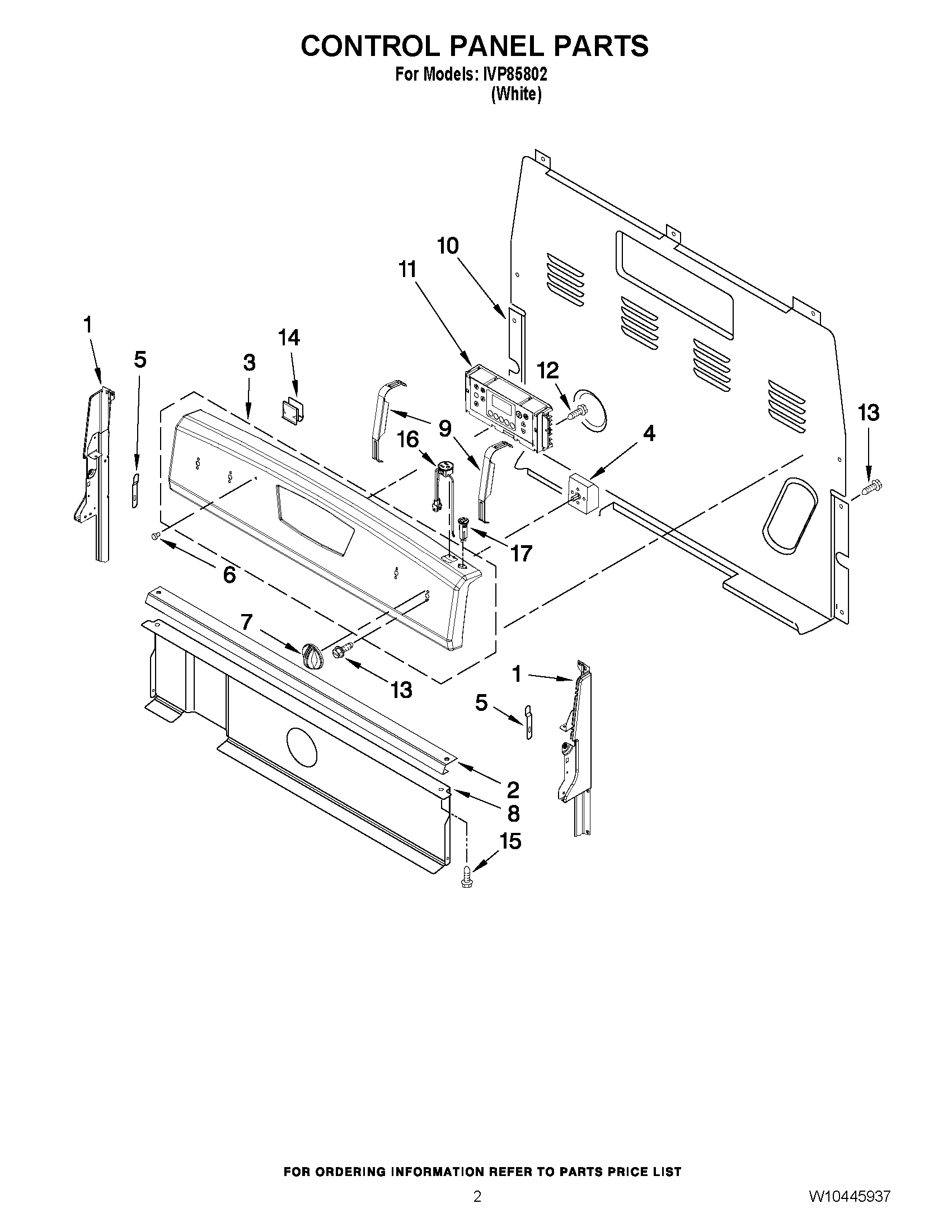

IVP85802 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	Panel, Console (White)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4	SWITCH-INF
5	3196200 Whirlpool Clip
6	WP3196068 Whirlpool Light Lens
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	W11230932 Whirlpool Bracket Mounting
10	WP8272473 Whirlpool Rear Cover
12	SCREW
13	WP3400882 Whirlpool Screw
14	WP8273564 Whirlpool Clip
15	3196166 Whirlpool Screw
16	W10849725 Whirlpool Electrical Outlet
17	WP9757601 Whirlpool Breaker
