IVP85802 05 – DOOR PARTS

IVP85802 05 – DOOR PARTS

Written by

in

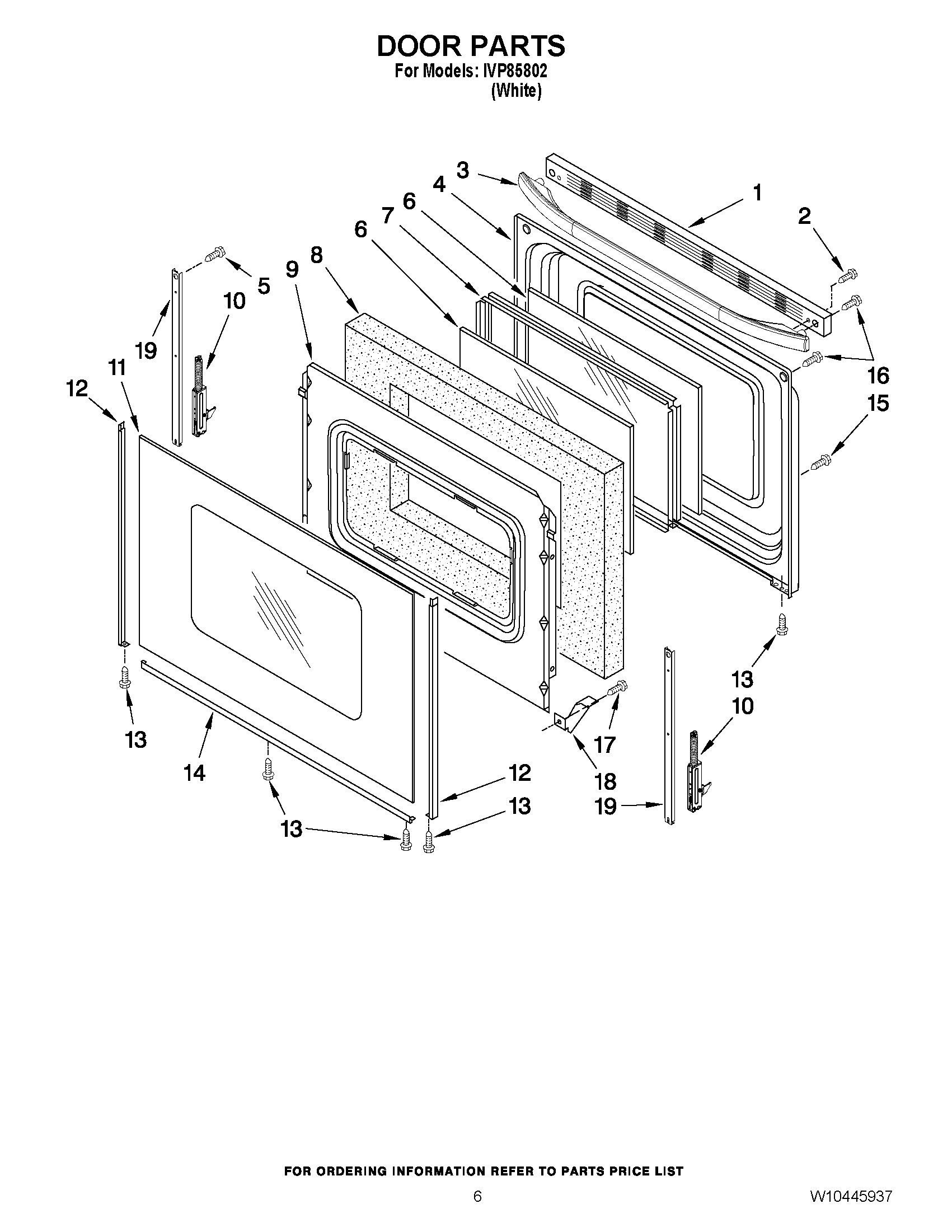

IVP85802 05 – DOOR PARTS

Products

PositionProduct
1WPW10016370 Whirlpool Door Trim
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3Handle, Door (White)
4WP9761344 Whirlpool Door Liner
5WP3196164 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10WPW10299227 Whirlpool Range Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W10777162 Whirlpool Screw
17WP3196175 Whirlpool Screw
18W10137382 Whirlpool Clip
19W11502236 Whirlpool Door Trim
