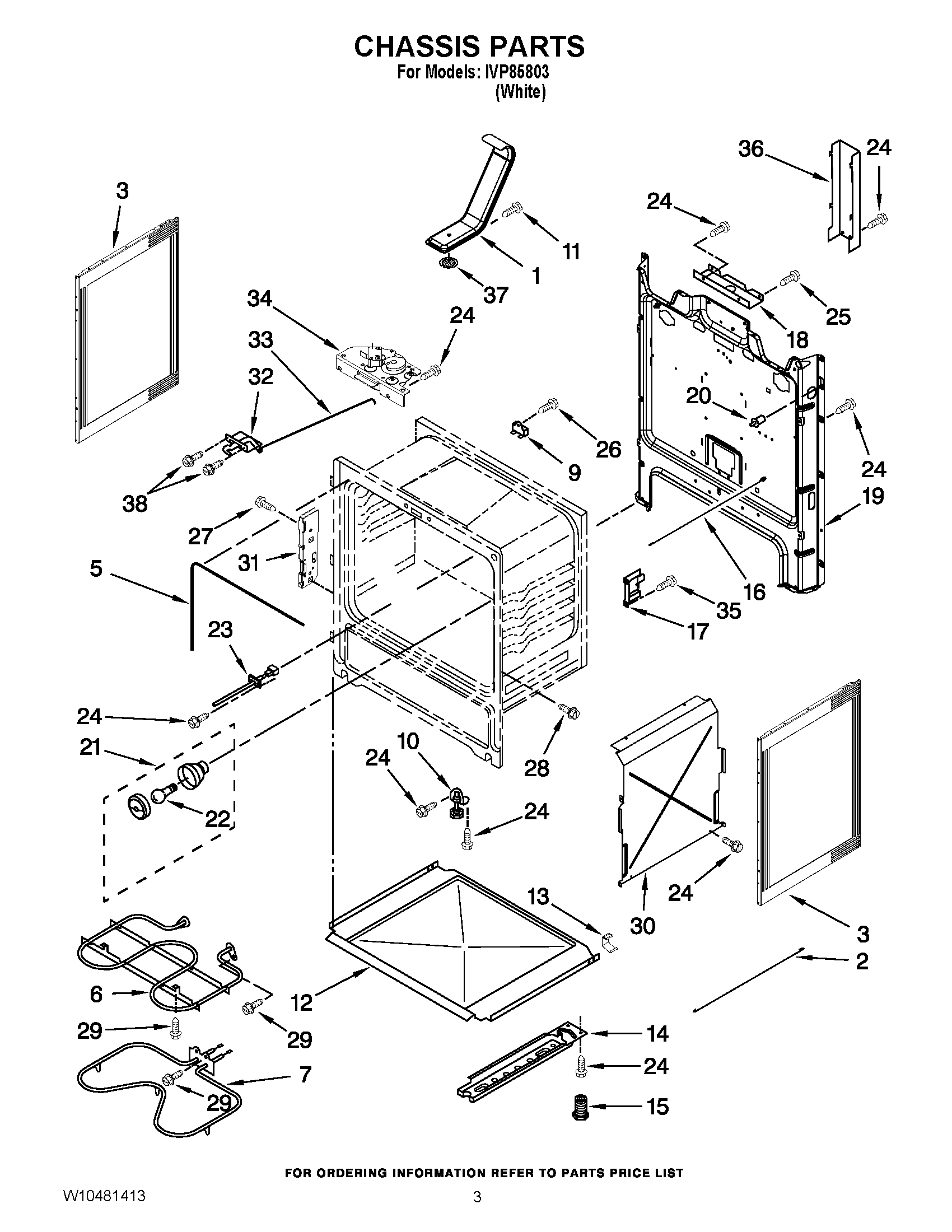

IVP85803 03 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	WP8272612 Whirlpool Insulation
1	WPW10134285 Whirlpool Vent Tube
2	W10465685 Whirlpool Retainer Assembly
3	WPW10575396 Whirlpool Side Panel
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
9	WP3196548 Whirlpool Thermal Fuse
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WP3196154 Whirlpool Screw Assembly
12	WP8054068 Whirlpool Retainer
13	W10137382 Whirlpool Clip
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	9757239 Whirlpool Oven Door Rod
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	BACK, MAIN
20	WP9757262 Whirlpool Light Switch
21	W11594027 Whirlpool Range Oven Light Socket
22	RANGE ONLY 40W 120V APPL BULB
23	WPW10181986 Whirlpool Oven Sensor
24	SCREW
25	WP3400016 Whirlpool Screw Assembly
26	3196172 Whirlpool Oven Screw
27	W10777162 Whirlpool Screw
28	WPW10067840 Whirlpool Screw
29	WP3196174 Whirlpool Screw
30	W10450380 Whirlpool Retainer
31	W10647259 Whirlpool Hinge Receiver
32	WP9761013 Whirlpool Door Latch
33	Rod, Latch
34	WPW10107840 Whirlpool Door Latch
35	WP3196557 Whirlpool Screw
36	WPW10326122 Whirlpool Black Cover
37	9761301 Whirlpool Oven Screen
38	W11169708 Whirlpool Screw
