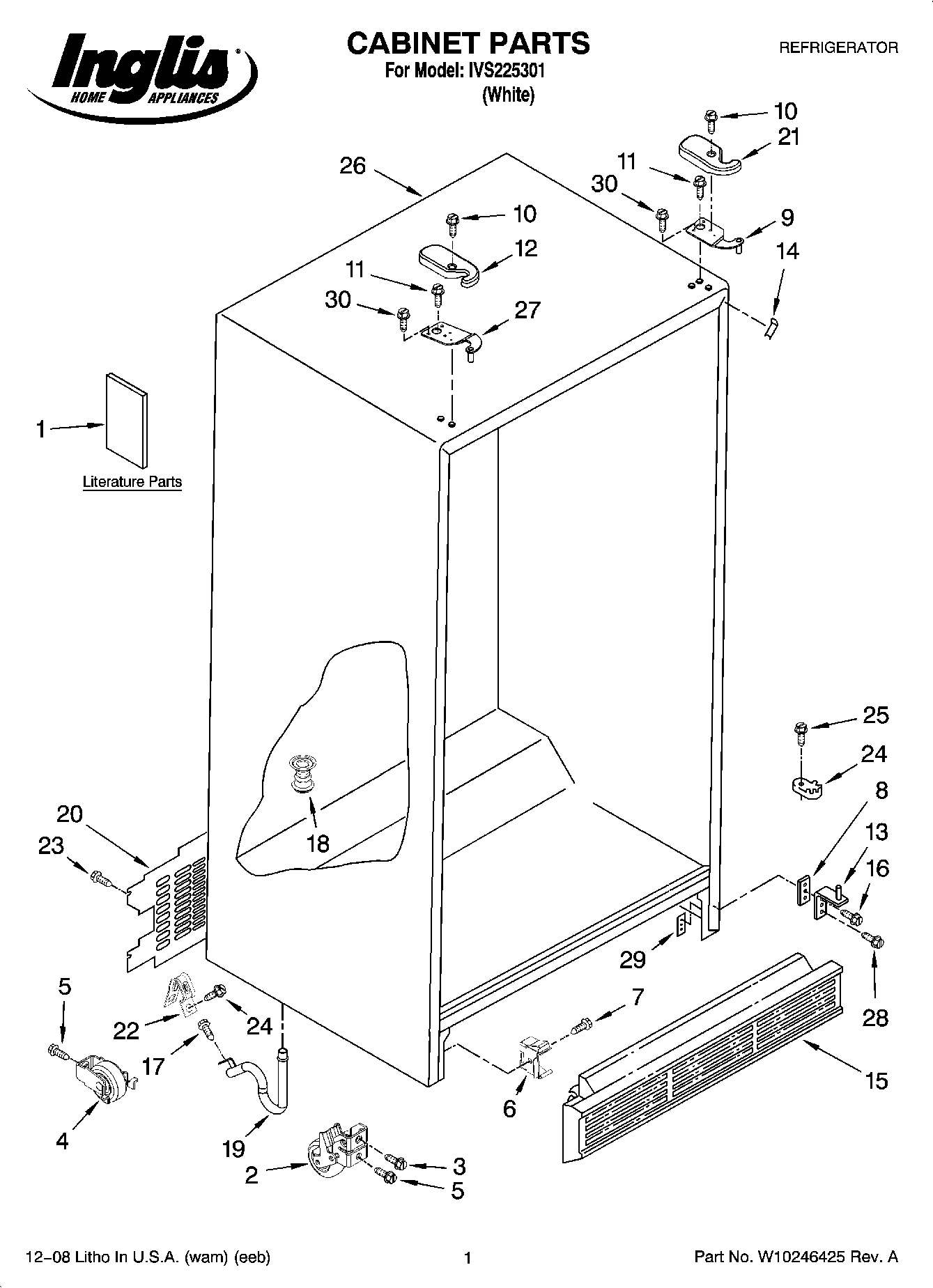

IVS225301 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Service & Wiring Sheet
1INSTRUCTION SHEET, DOOR REMOVAL
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2209697 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP8281227 Whirlpool Screw
11W10853301 Whirlpool Refrigerator Screw
12Hinge Cover (RC) (White)
138201707 Whirlpool Door Hinge
14WPW10283959 Whirlpool Refrigerator Filler
15W10804014 Whirlpool Refrigerator Grille
16WP489497 Whirlpool Screw
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Extension Tube
20WP2188756 Whirlpool Refrigerator Unit Cover
21Hinge Cover (FC) (White)
22549193 Whirlpool Refrigerator Power Clamp
24WPW10329686 Whirlpool Door Cam Black
25WP489483 Whirlpool Screw
26Cabinet, (Not A Serviceable Part)
27WP2203770 Whirlpool Refrigerator Door Hinge
28W10856122 Whirlpool Refrigerator Screw
29WP2304249 Whirlpool Refrigerator Plate
