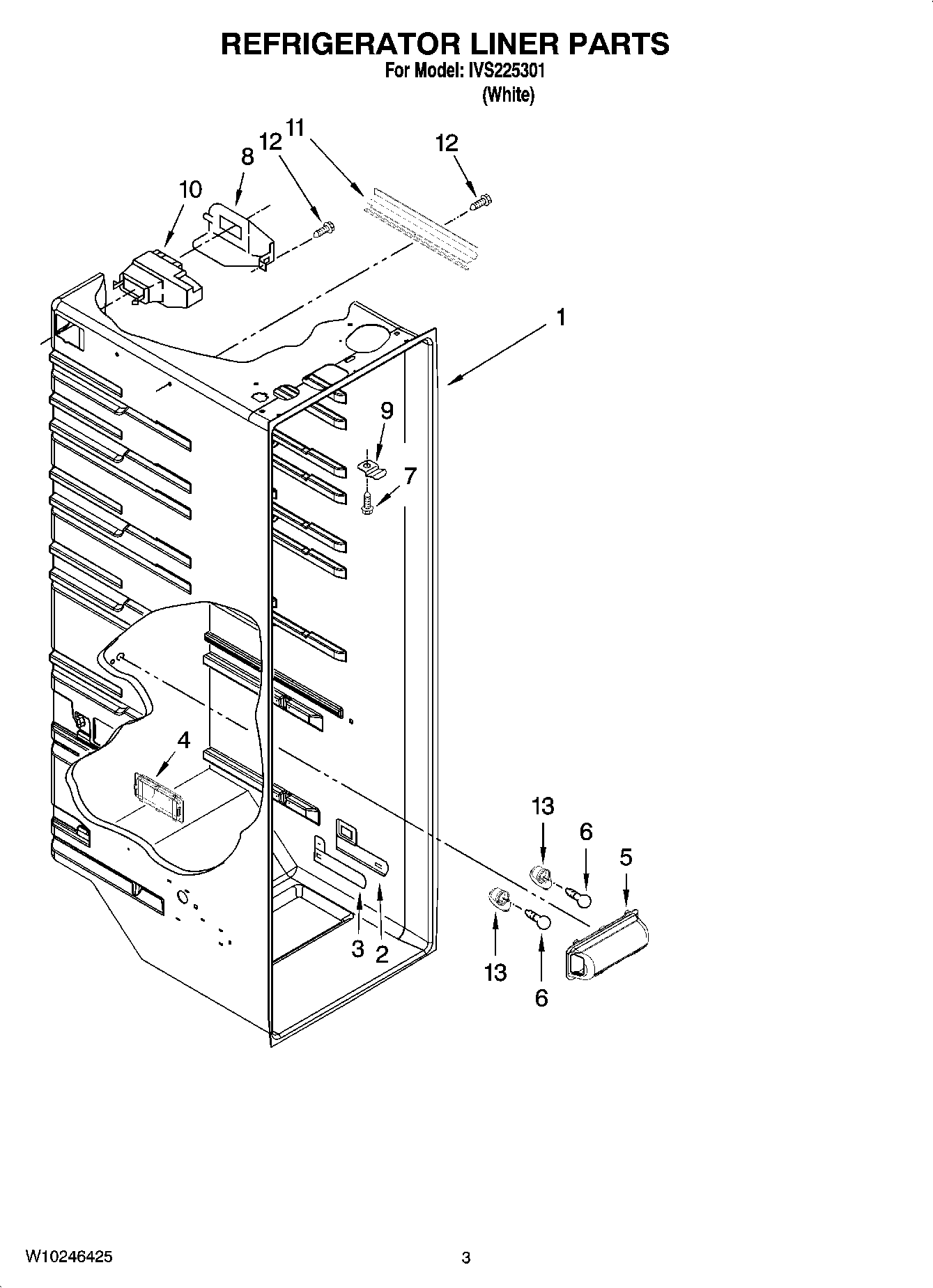

IVS225301 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6RANGE ONLY 40W 120V APPL BULB
7WP488488 Whirlpool Refrigerator Screw
92311612 Whirlpool Refrigerator Clip
10WPW10151374 Whirlpool Refrigerator Diffuser
112150331 Whirlpool Refrigerator Wire Cover
12W10759522 Whirlpool Screw
134387478 Whirlpool Refrigerator Light Socket
