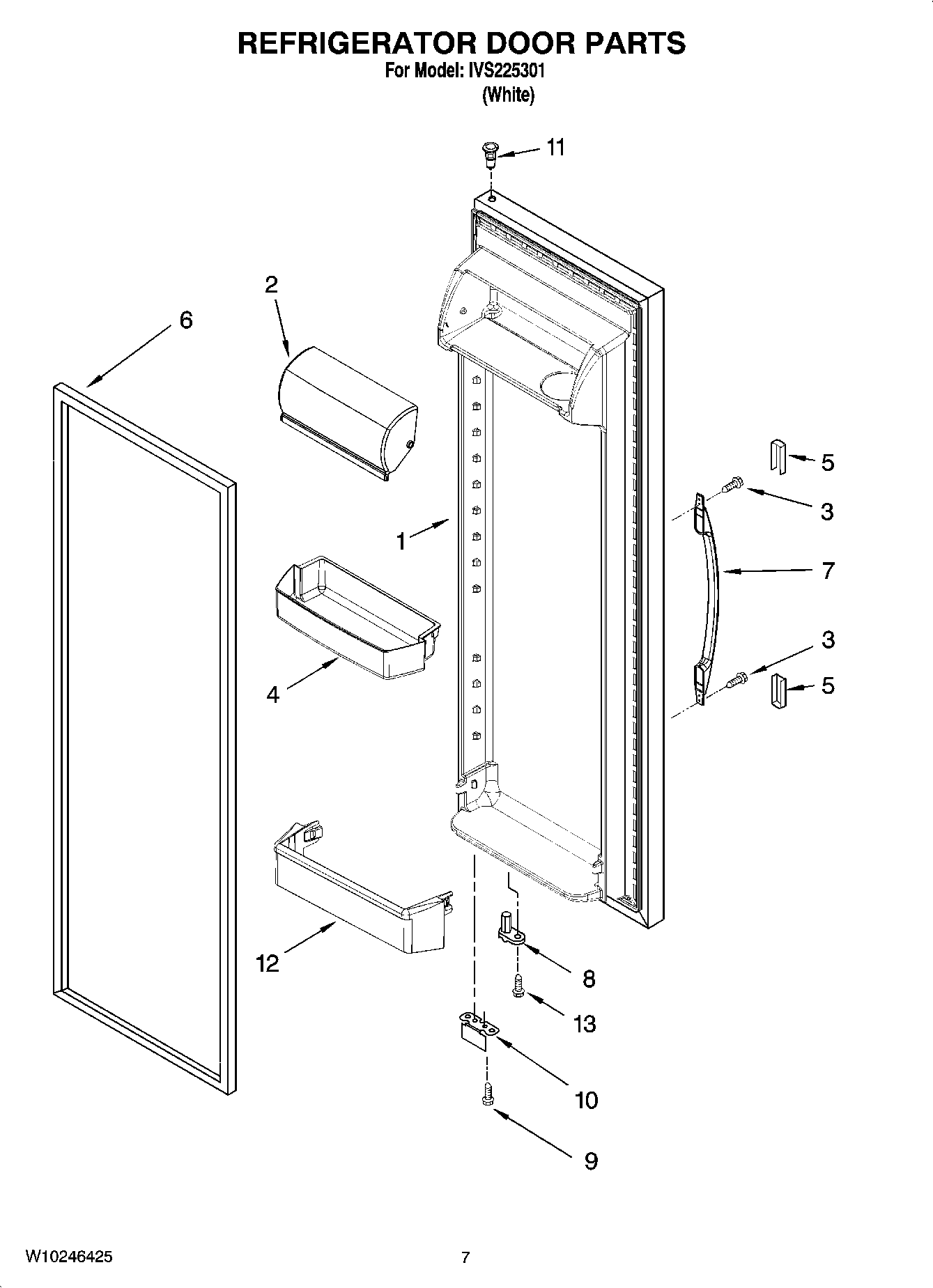

IVS225301 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4WP2187172 Whirlpool Refrigerator Door Shelf Bin
5Trim, Handle (White)
62159073 Whirlpool Refrigerator Door Gasket
7Handle (White)
8WP2182179 Whirlpool Cam Closer
9WP489483 Whirlpool Screw
10WP2206629B Whirlpool Refrigerator Bracket
11WP2182181 Whirlpool Refrigerator Thimble
12WP2156022 Whirlpool Refrigerator Door Trim
13WP3400012 Whirlpool Refrigerator Screw
