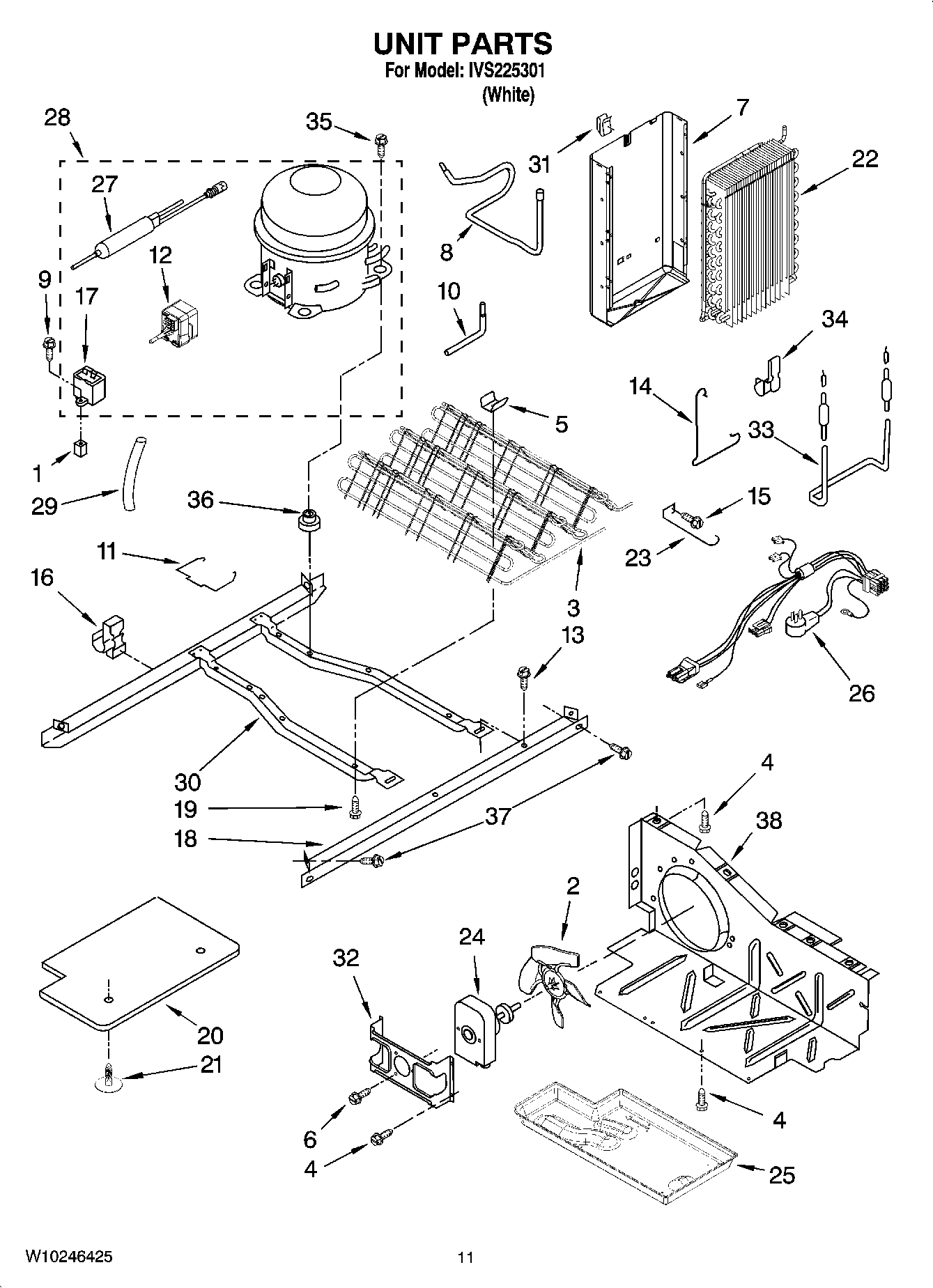

IVS225301 07 – UNIT PARTS

IVS225301 07 – UNIT PARTS

Written by

in

IVS225301 07 – UNIT PARTS

Products

PositionProduct
WP978025 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
Following Parts Not Illustrated and Optional Parts Not Included
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.0 oz. (R-134A)
VALVE, ACCESS (5/8“)
1Screw Grommet
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
6WP8533993 Whirlpool Refrigerator Screw
7WPW10194474 Whirlpool Refrigerator Shield
82220642 Whirlpool Refrigerator Tube
9W11693756 Whirlpool Screw Assembly
10W10858105 Whirlpool Refrigerator Tube
112212996 Whirlpool Refrigerator Retainer
12WP2188831 Whirlpool Refrigerator Start Device
13WP489427 Whirlpool Refrigerator Screw
15WP489478 Whirlpool Refrigerator Screw
16Clip, Wire & Tube
17WP65889-4 Whirlpool Refrigerator Capacitor
18WPW10196323 Whirlpool Refrigerator Rail Assembly
19W11544659 Whirlpool Refrigerator Screw
20W11115203 Whirlpool Control Panel
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
231105612 Whirlpool Fan Guard
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Unit, Harness
27WPW10143759 Whirlpool Dryer Filter
28W10355489 Whirlpool Refrigerator Compressor
29SLEEVE
302304903 Whirlpool Refrigerator Frame
31Clip, Heat Shield
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clamp
36876811 Whirlpool Grommet
36W11661108 Whirlpool Grommet
37489340 Whirlpool Refrigerator Screw
38Air Baffle
