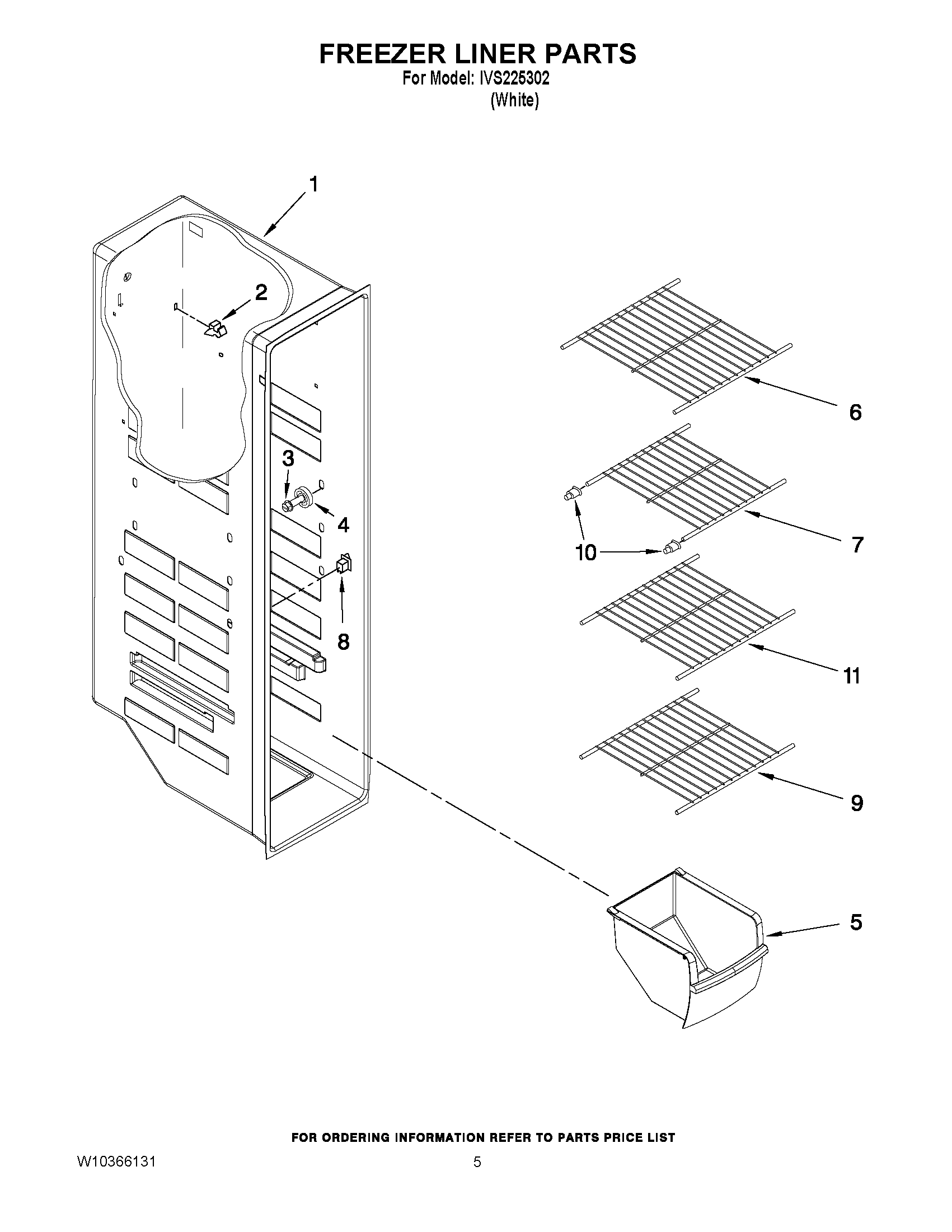

IVS225302 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22215823 Whirlpool Refrigerator Clip
3W11527119 Whirlpool Refrigerator Shelf Stud
4WPW10191952 Whirlpool Refrigerator Screw
5WP2309758 Whirlpool Refrigerator Freezer Bin
6WPW10318949 Whirlpool Refrigerator Wire Shelf
7WPW10318953 Whirlpool Wire Shelf
8W11384469 Whirlpool Door Switch
9WPW10318952 Whirlpool Wire Shelf
10WPW10130299 Whirlpool Refrigerator Cup
11WPW10318951 Whirlpool Refrigerator Wire Shelf
