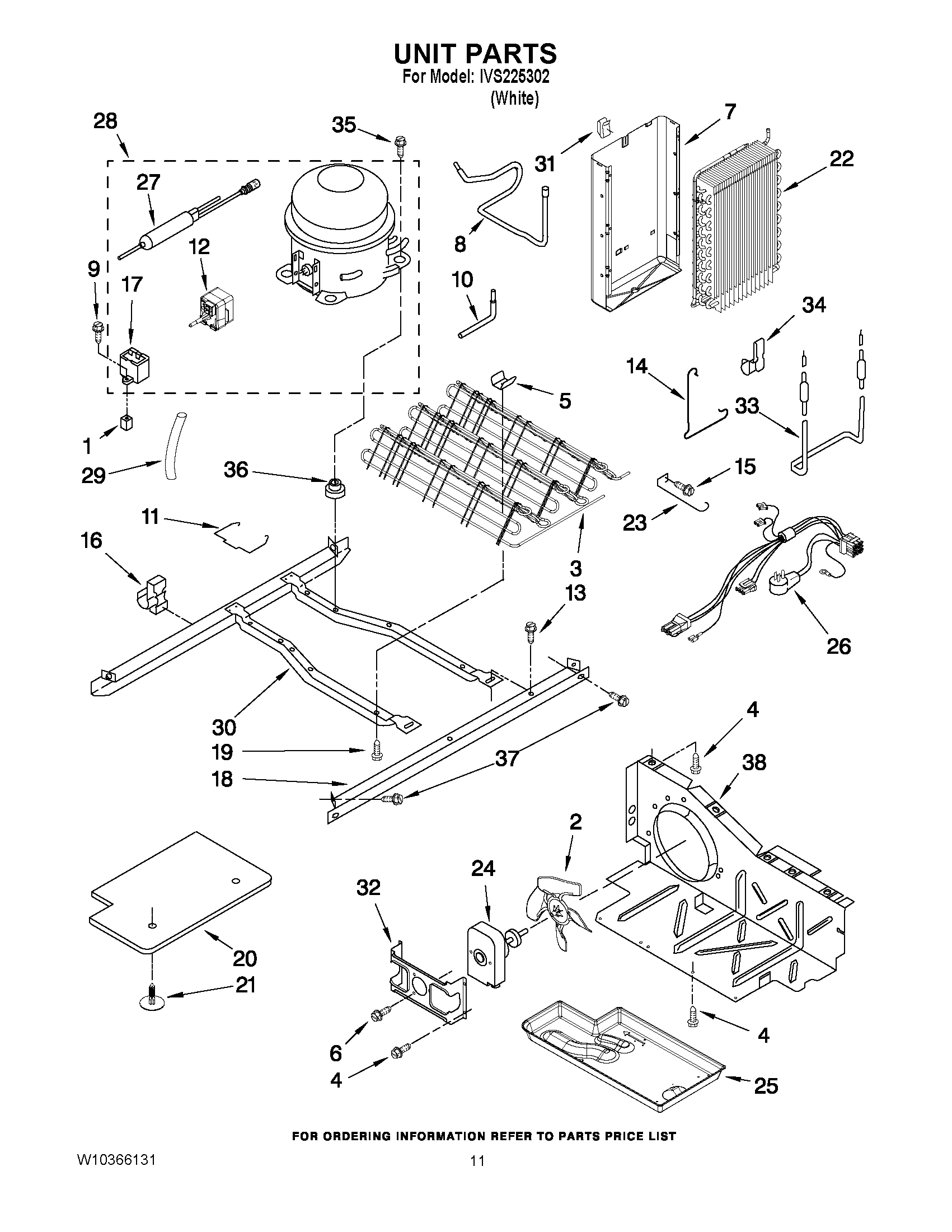

IVS225302 07 – UNIT PARTS

IVS225302 07 – UNIT PARTS

Written by

in

IVS225302 07 – UNIT PARTS

Products

PositionProduct
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
NICABINET (NOT A SERVICEABLE PART)
1Screw Grommet
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
6WP8533993 Whirlpool Refrigerator Screw
7WPW10194474 Whirlpool Refrigerator Shield
82220642 Whirlpool Refrigerator Tube
9W11693756 Whirlpool Screw Assembly
10W10858105 Whirlpool Refrigerator Tube
112255009 Whirlpool Retainer
12WPW10240344 Whirlpool Refrigerator Start Device
13WP489427 Whirlpool Refrigerator Screw
15WP489478 Whirlpool Refrigerator Screw
16Clip, Wire & Tube
17WP65889-4 Whirlpool Refrigerator Capacitor
18W10207512 Whirlpool Rail Unit
19W11544659 Whirlpool Refrigerator Screw
20W11115203 Whirlpool Control Panel
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
231105612 Whirlpool Fan Guard
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26UNIT, HARNESS (INCLUDES POWER CORD)
27WPW10143759 Whirlpool Dryer Filter
28W10355489 Whirlpool Refrigerator Compressor
29SLEEVE
302304903 Whirlpool Refrigerator Frame
31Clip, Heat Shield
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clamp
35SCREW
36W11661108 Whirlpool Grommet
37489340 Whirlpool Refrigerator Screw
38BAFFLE, AIR
