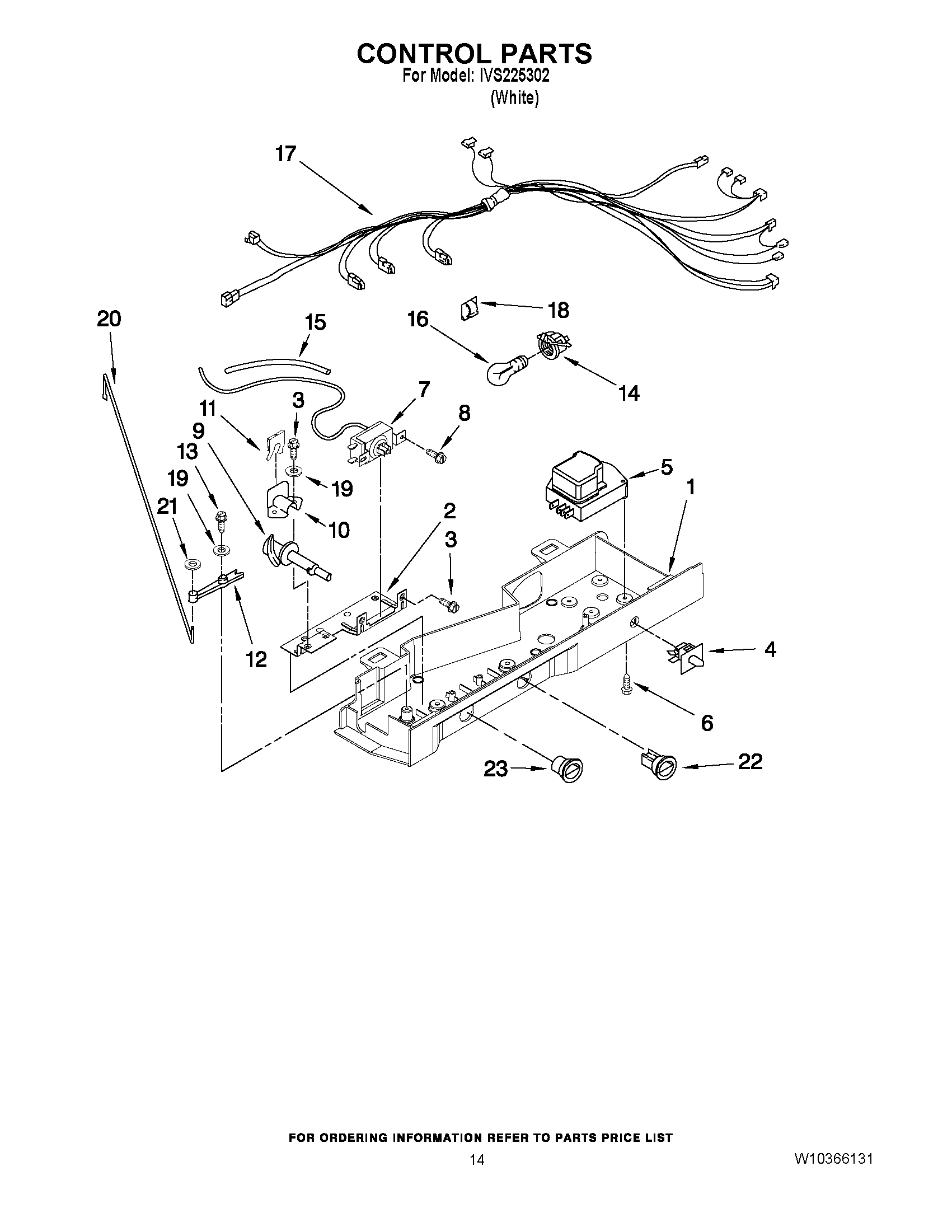

IVS225302 09 – CONTROL PARTS

Products

PositionProduct
1Control Box
22311611 Whirlpool Refrigerator Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5W10822278 Whirlpool Defrost Timer
6489392 Whirlpool Refrigerator Screw
7WP2198202 Whirlpool Refrigerator Temperature Thermostat
8WP965173 Whirlpool Dishwasher Screw
9WP2182195 Whirlpool Refrigerator Cam
101110560 Whirlpool Refrigerator Bearing
11WP2196062 Whirlpool Refrigerator Clip
12Pivot Arm
13627068 Whirlpool Refrigerator Screw
144387478 Whirlpool Refrigerator Light Socket
15WP2196003 Whirlpool Refrigerator Bar Riser
16RANGE ONLY 40W 120V APPL BULB
172311636 Whirlpool Refrigerator Wire Harness
18WP1115374 Whirlpool Refrigerator Clip
19489203 Whirlpool Refrigerator Washer
202311631 Whirlpool Refrigerator Rod
21Fastener, Push-On
22W10723843 Whirlpool Refrigerator Thermostat Knob
232311615 Whirlpool Refrigerator Knob
