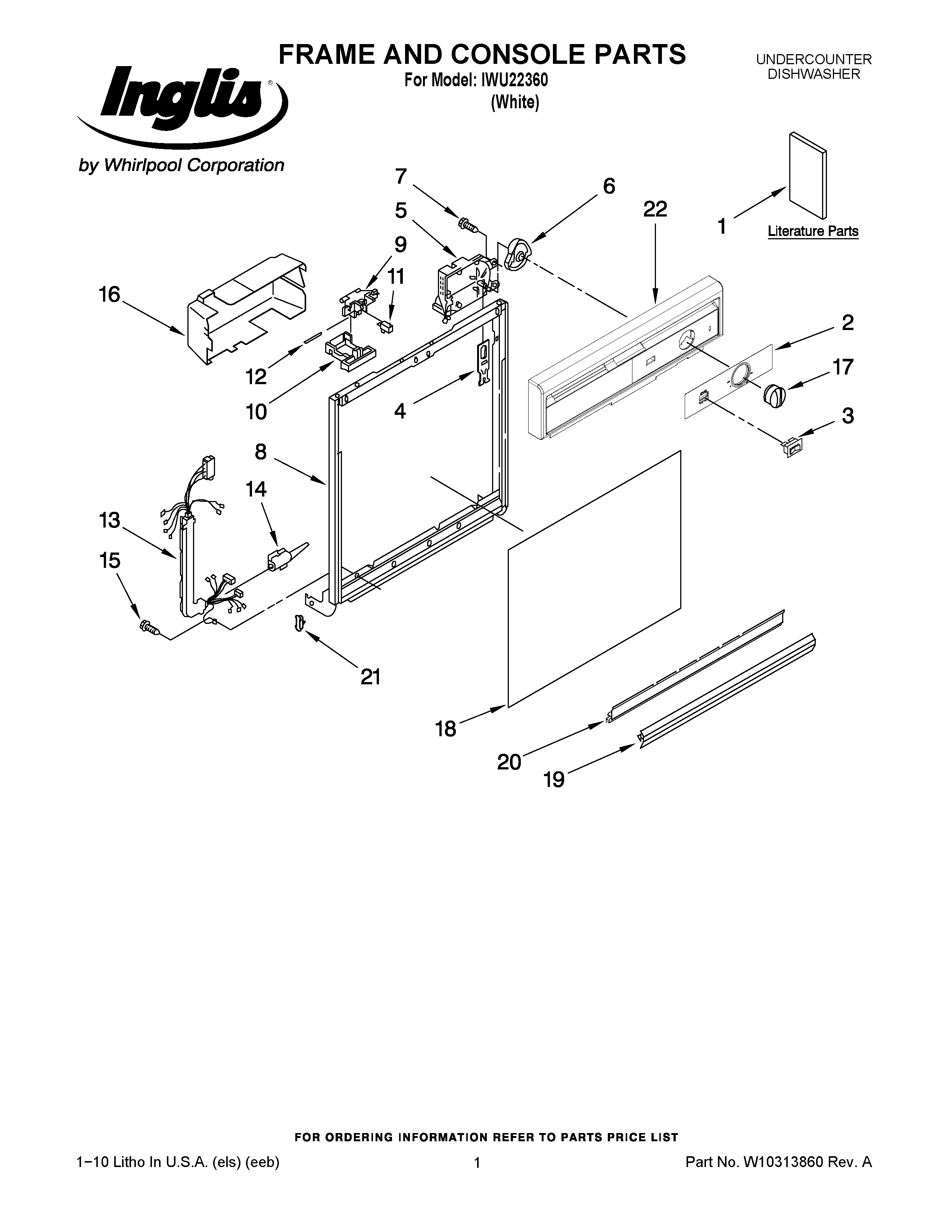

IWU22360 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1ENERGY GUIDE
1DIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
2INSERT, CONSOLE (WHITE)
38051730 Whirlpool Dishwasher Switch
38051729 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5WPW10199588 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16COVER TIMER
178275308 Whirlpool Dishwasher Timer Knob
18Panel Front (White Model)
19Retainer, Panel
20WP3374716 Whirlpool Dishwasher Channel
21WP3373234 Whirlpool Dishwasher Bearing
22CONSOLE (INCLUDES ITEM 2) (WHITE)
