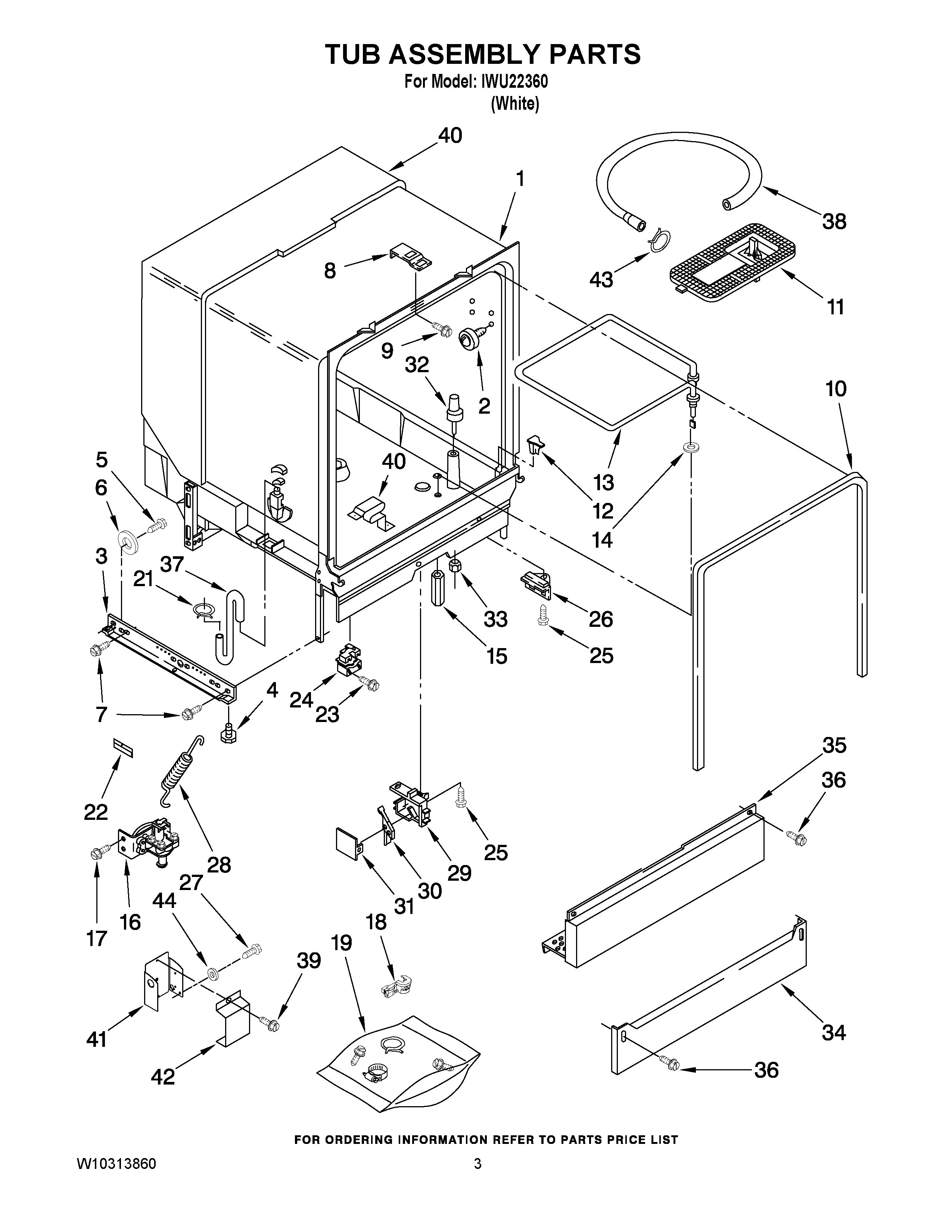

IWU22360 03 – TUB ASSEMBLY PARTS

Products

Position	Product
1	Tub Assembly
2	WP8528831 Whirlpool Dishwasher Mounting
3	Runner (2)
4	8193716 Whirlpool Leveling Leg
5	Screw (2)
6	WP302819 Whirlpool Dishwasher Wheel
7	SCREW
8	Plate, Latch
9	WP3374720 Whirlpool Dishwasher Screw
10	WPW10509257 Whirlpool Door Gasket
11	WP3369322 Whirlpool Cover Assembly
12	DEFLECTOR-DISHWASHER
13	WPW10082894 Whirlpool Dishwasher Heater
14	WP717273 Whirlpool Dishwasher Rubber Washer
15	WPW10477552 Whirlpool Dishwasher Terminal Nut
16	W10844024 Whirlpool Water Inlet Valve
17	WP489069 Whirlpool Compactor Screw
18	W11384788 Whirlpool Dishwasher Relief Strainer
19	Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
21	WP596669 Whirlpool Hose Clamp
22	Friction Pad (Velcro)
24	W10102260 Whirlpool Dishwasher Motor Relay
25	WP304231 Whirlpool Dishwasher Screw
26	WP3368928 Whirlpool Dishwasher Fuse
27	WP3400014 Whirlpool Dishwasher Screw
28	WP3374343 Whirlpool Dishwasher Spring
29	Housing, Float Switch
30	Switch, Float
31	8318219 Whirlpool Dishwasher Cover Housing
32	WP8519552 Whirlpool Dishwasher Float
33	Nut
34	WP3379921 Whirlpool Dishwasher Toe Panel
34	WP3379920 Whirlpool Dishwasher Toe Panel
35	Access Panel (White)
36	WP302868 Whirlpool Screw
37	Hose, Inlet
38	WP3374077 Whirlpool Dishwasher Drain Hose
39	WP489399 Whirlpool Refrigerator Screw
40	3379740 Whirlpool Dishwasher Heater Support
41	Terminal Box
42	300068 Whirlpool Dishwasher Cover Assembly
43	WP356138 Whirlpool Hose Clamp
44	WP3378128 Whirlpool Dishwasher Washer
