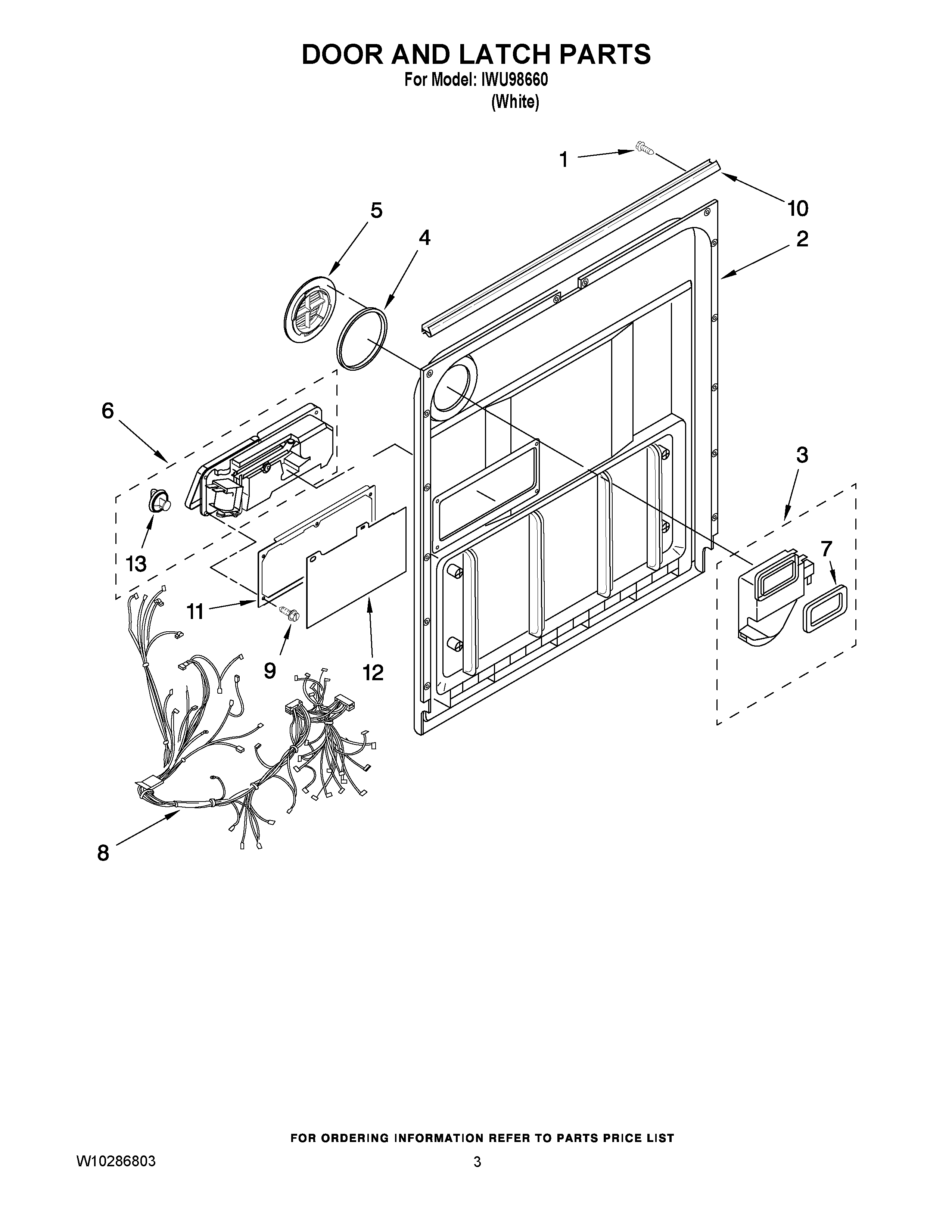

IWU98660 03 – DOOR AND LATCH PARTS

IWU98660 03 – DOOR AND LATCH PARTS

Written by

in

IWU98660 03 – DOOR AND LATCH PARTS

Products

PositionProduct
2WP3378179 Whirlpool Inner Door Panel
3WP8558980 Whirlpool Dishwasher Vent
5Deflector, Vent (Also Order Item 6)
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7WP8269259 Whirlpool Air Vent Gasket
8WIRING HARNESS MAIN
9WPW10348413 Whirlpool Dishwasher Screw
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WP8531865 Whirlpool Dishwasher Door Shield
13WP8558307 Whirlpool Rinse Aid Dispenser Cap
