IWU98665 03 – INNER DOOR PARTS

IWU98665 03 – INNER DOOR PARTS

Written by

in

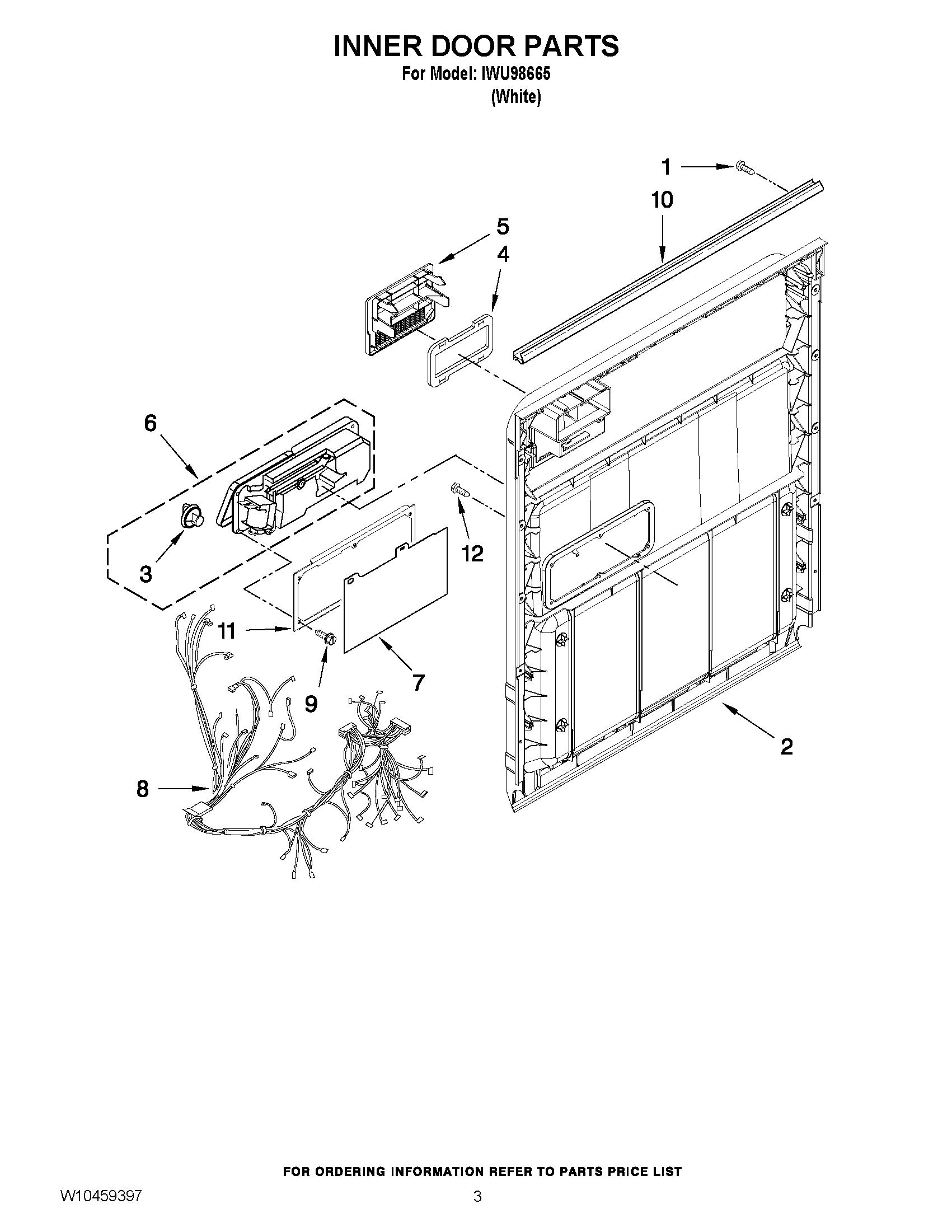

IWU98665 03 – INNER DOOR PARTS

Products

PositionProduct
2WPW10254547 Whirlpool Dishwasher Inner Door
3WP8558307 Whirlpool Rinse Aid Dispenser Cap
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7W10385977 Whirlpool Dishwasher Cover Assembly
8WIRING HARNESS
10WP8269296 Whirlpool Dishwasher Seal
11WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
12WPW10348413 Whirlpool Dishwasher Screw
