IWU98665 05 – TUB AND FRAME PARTS

IWU98665 05 – TUB AND FRAME PARTS

Written by

in

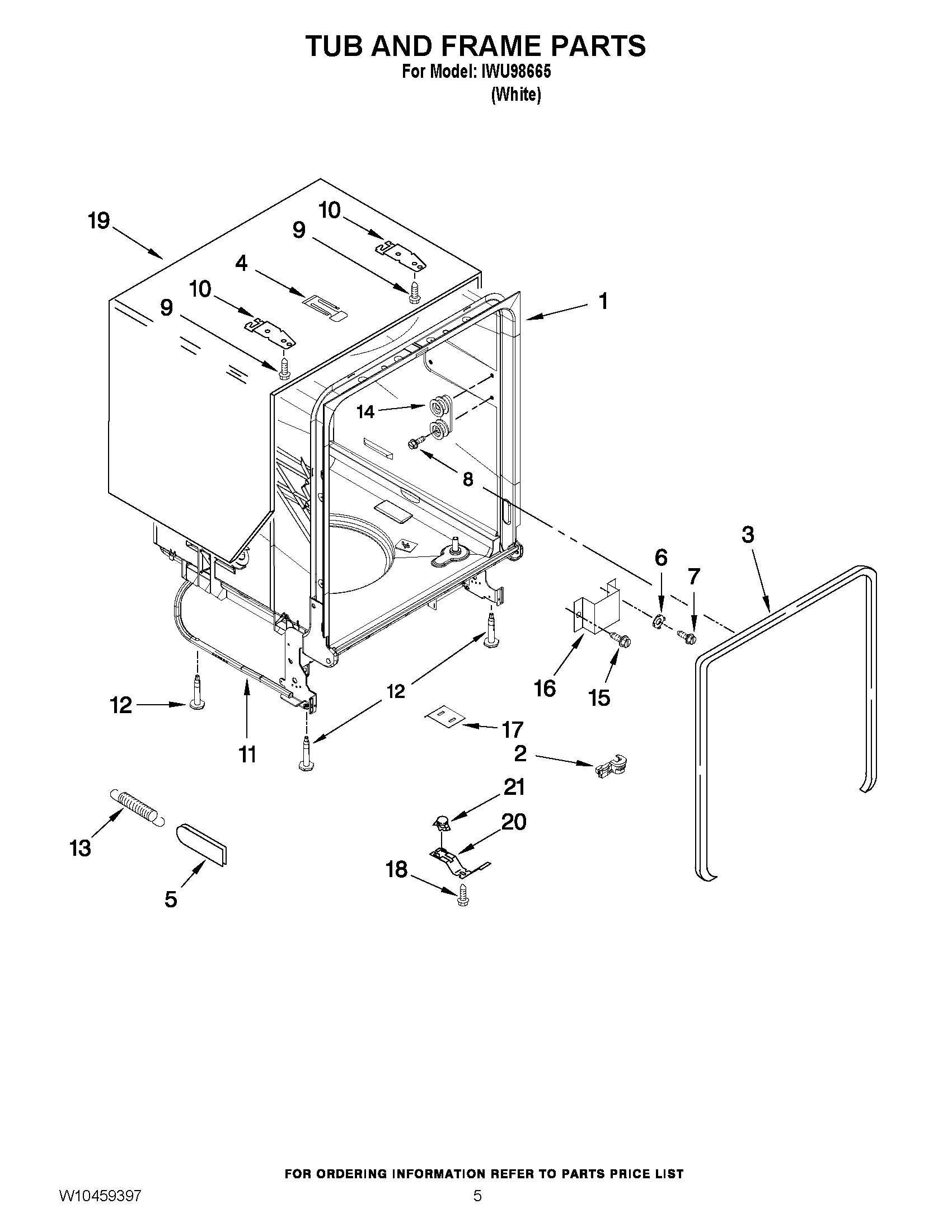

IWU98665 05 – TUB AND FRAME PARTS

Products

PositionProduct
1W10266934 Whirlpool Dishwasher Tub
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WP8580309 Whirlpool Dishwasher Strike
5WP8268990 Whirlpool Dishwasher Door Spring Bushing
6WP3378128 Whirlpool Dishwasher Washer
7WP3400014 Whirlpool Dishwasher Screw
8W10817436 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
10WP8269145 Whirlpool Dishwasher Mounting Bracket
11WPW10271702 Whirlpool Dishwasher Support
128193716 Whirlpool Leveling Leg
13WPW10337934 Whirlpool Spring Assembly
14WP8270016 Whirlpool Dishwasher Tub Wheel
15WP3400892 Whirlpool Dishwasher Screw
16WP8268991 Whirlpool Dishwasher Cover Assembly
17W10321574 Whirlpool Dishwasher Shield
18WP304231 Whirlpool Dishwasher Screw
19W11086533 Whirlpool Dishwasher Shield
20W10539489 Whirlpool Dishwasher Bracket-Stat
21WP661566 Whirlpool High Limit Thermostat
