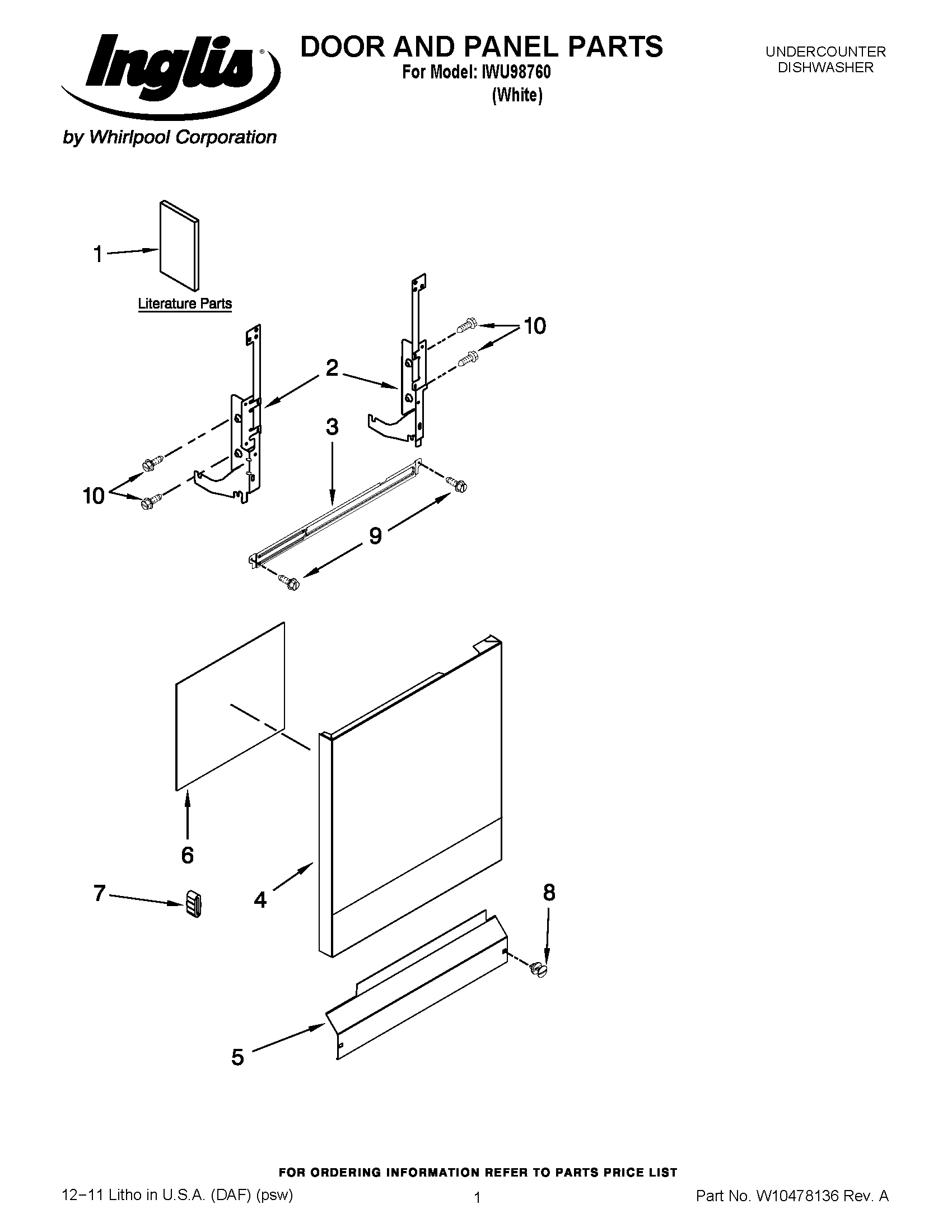

IWU98760 01 – DOOR AND PANEL PARTS

IWU98760 01 – DOOR AND PANEL PARTS

Written by

in

IWU98760 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1INSTALLATION, INSTRUCTIONS
1USE & CARE GUIDE
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10274896 Whirlpool Dishwasher Panel
5WPW10441007 Whirlpool Dishwasher Panel
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WP8268961 Whirlpool Friction Pad
8WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WPW10109200 Whirlpool Screw
