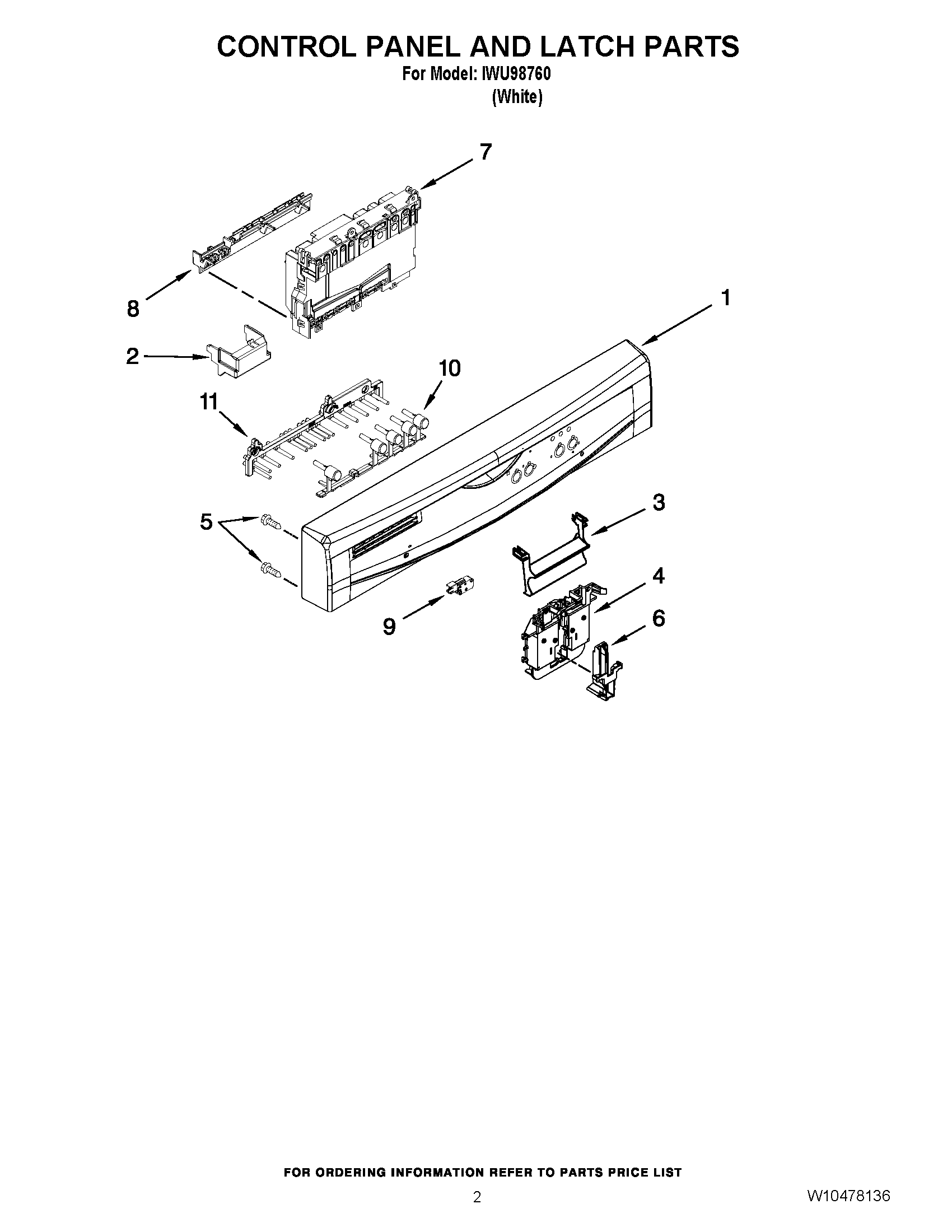

IWU98760 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY
2	W10783730 Whirlpool Dishwasher Connector
3	WP8269323 Whirlpool Dishwasher Handle
4	BOLT-LATCH
5	WPW10348413 Whirlpool Dishwasher Screw
6	WP8524471 Whirlpool Dishwasher Actuator
7	W10906418-includeCORE Whirlpool W10906418 Dishwasher Electronic Control Board + Core
8	WPW10372484 Whirlpool Dishwasher Brace
9	WPW10274880 Whirlpool Switch
10	W10274843 Whirlpool Dishwasher Button
11	PIPE, LIGHT
