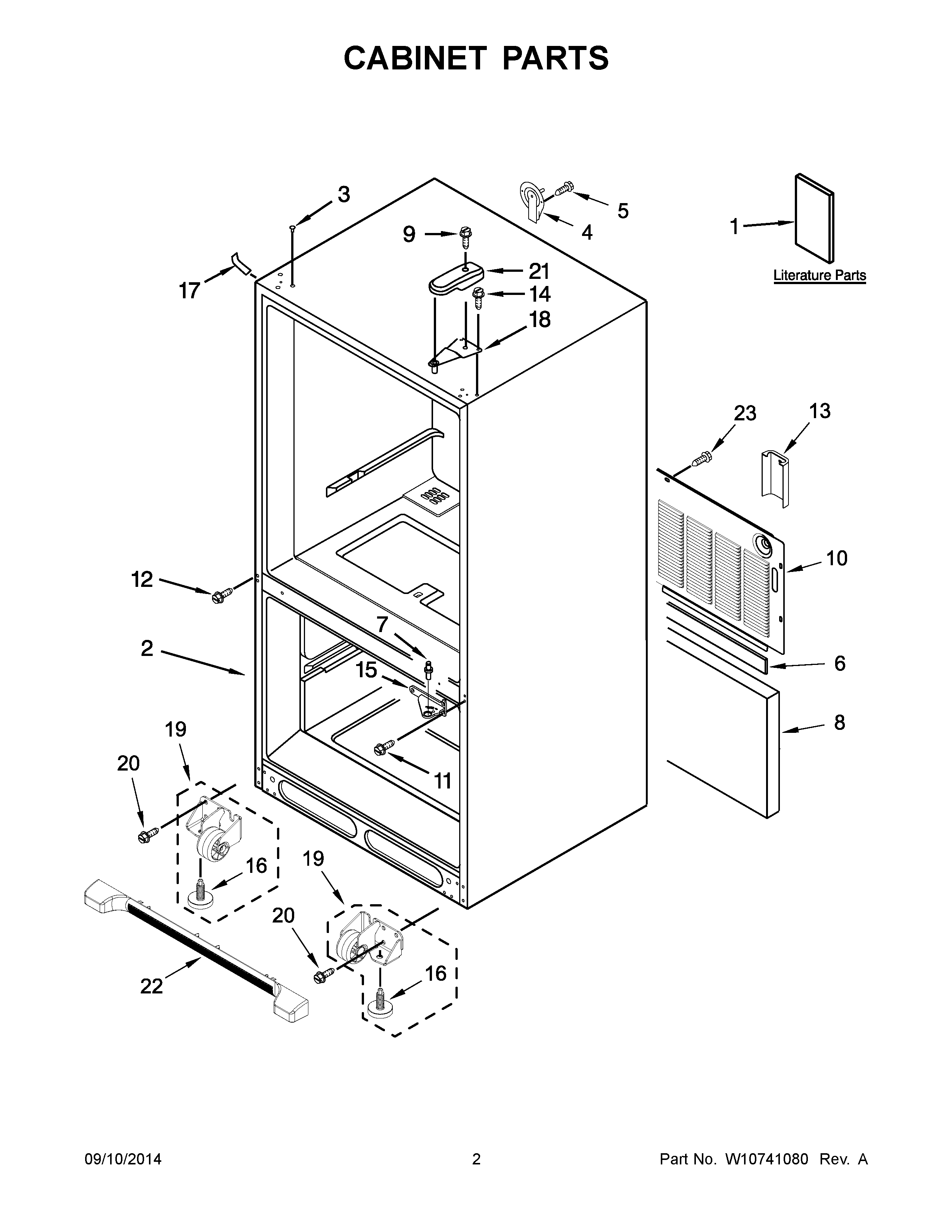

IX3HHEXDSM00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3WP12246610 Whirlpool Refrigerator Handle Plug
412726003 Whirlpool Refrigerator Water Cover
5WP98165 Whirlpool Screw
6B5759655 Whirlpool Refrigerator Gasket
7WP67006642 Whirlpool Refrigerator Pin
8INSULATION, SOUND
9WP8281196 Whirlpool Screw
10W10210978 Whirlpool Refrigerator Back Cover
11WP67006380 Whirlpool Screw
13W10208592 Whirlpool Refrigerator Valve Cover
14WP489349 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
16WPW10141622 Whirlpool Leveler
17WP12587703AP Whirlpool Refrigerator Filler
18WP12566606ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
21W11106366 Whirlpool Refrigerator Door Hinge
22WPW10534165 Whirlpool Refrigerator Front Grille
2367006425 Whirlpool Refrigerator Screw
