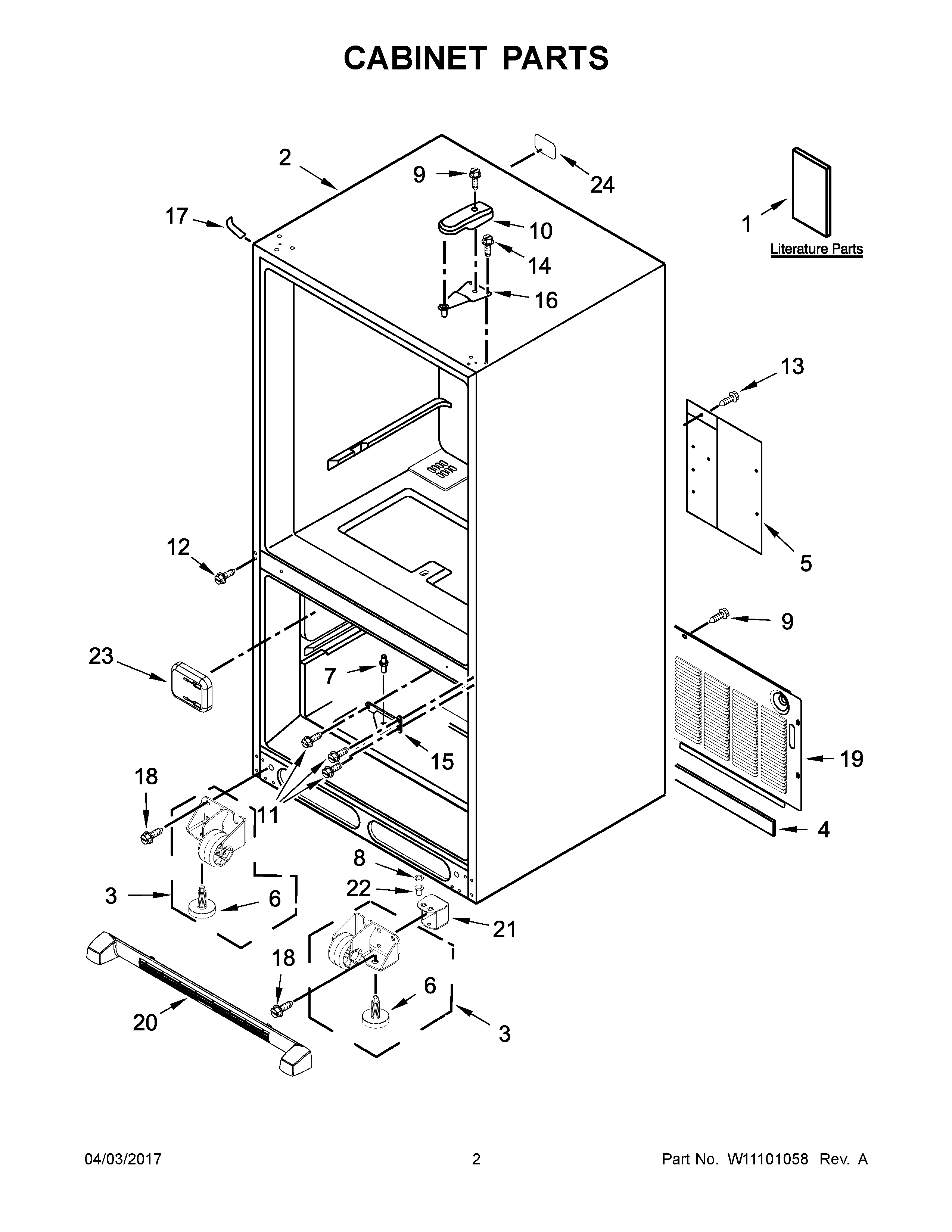

IX3HHGXSS000 02 – CABINET PARTS

IX3HHGXSS000 02 – CABINET PARTS

Written by

in

IX3HHGXSS000 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
2CABINET (NOT A SERVICEABLE PART)
3AWPW10515762 Whirlpool Refrigerator Cabinet Roller
3WPW10515763 Whirlpool Refrigerator Cabinet Roller
4B5759655 Whirlpool Refrigerator Gasket
5W11684617 Whirlpool Valve Cover
6WPW10141622 Whirlpool Leveler
7WP67006744 Whirlpool Refrigerator Center Pin
8WPM0274062 Whirlpool Refrigerator Shim
9WP8281196 Whirlpool Screw
10W11106366 Whirlpool Refrigerator Door Hinge
11WP489349 Whirlpool Refrigerator Screw
12WP98165 Whirlpool Screw
1367006425 Whirlpool Refrigerator Screw
1512607103AP Whirlpool Refrigerator Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
17WP12587703AP Whirlpool Refrigerator Filler
1867006564 Whirlpool Refrigerator Screw
19W10210978 Whirlpool Refrigerator Back Cover
20WPW10534165 Whirlpool Refrigerator Front Grille
21W10617441 Whirlpool Door Hinge
2267007018 Whirlpool Refrigerator Bottom Hinge PIN
23WP67001098 Whirlpool Refrigerator Tube Cover
24W11685757 Whirlpool Label
