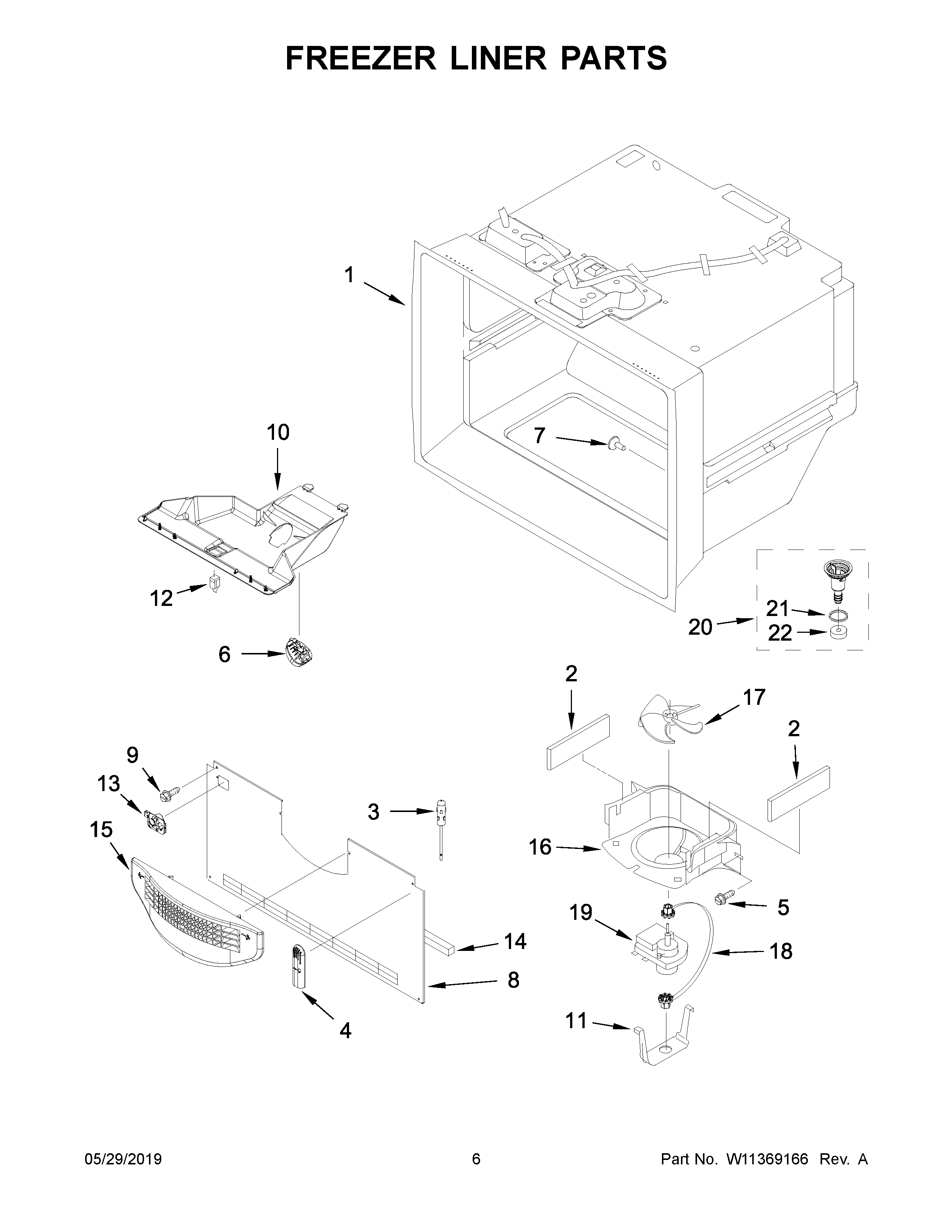

IX3HHGXSS001 04 – FREEZER LINER PARTS

IX3HHGXSS001 04 – FREEZER LINER PARTS

Written by

in

IX3HHGXSS001 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10856123 Whirlpool Refrigerator Gasket
312002355 Whirlpool Refrigerator Thermistor Kit
4WP67003924 Whirlpool Refrigerator Cover
5WP98165 Whirlpool Screw
6MODULE
7WP67001130 Whirlpool Refrigerator White Button Plug
8WPW10308414 Whirlpool Refrigerator Evaporator Cover
9Screw
10WPW10277025 Whirlpool Refrigerator Housing
11CLIP, EVAPORATOR MOTOR
12W11396033 Whirlpool Refrigerator Rocker Switch
13W11448709 Whirlpool Refrigerator Bracket
14A3189394 Whirlpool Refrigerator Gasket
15WPW10175909 Whirlpool Grille Assembly
16WPW10167023 Whirlpool Refrigerator Shroud
17WP2169142 Whirlpool Fan Blade
18W10121318 Whirlpool Refrigerator Grommet
19WPW10128551 Whirlpool Evaporator Fan Motor
20W10815413 Whirlpool Refrigerator Funnel
21WPM0500703 Whirlpool Refrigerator O-Ring Seal
22WPB8381501 Whirlpool Refrigerator Door Gasket
