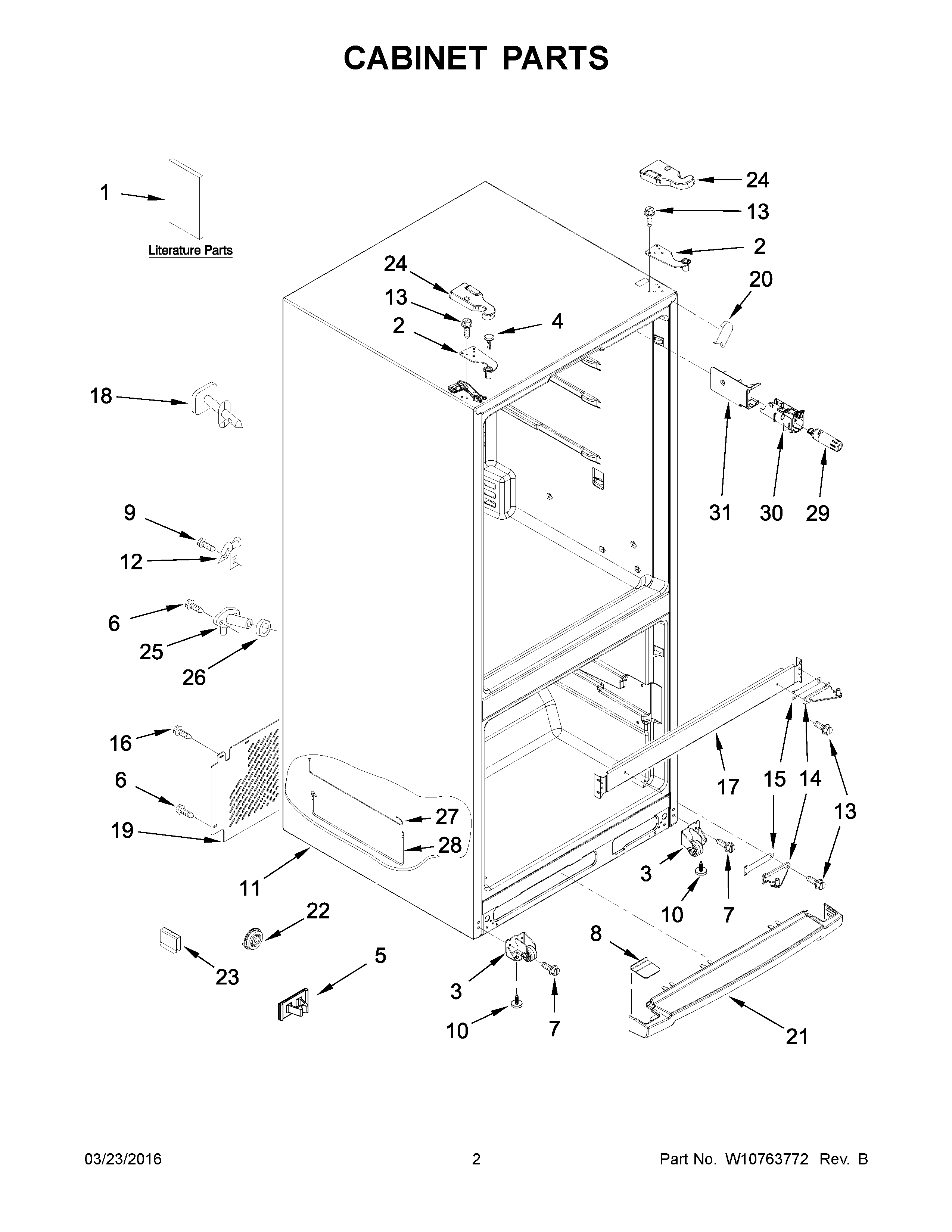

IX5BBEXDS00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1C	Modular Icemaker Service Sheet
1	SERVICE & WIRING SHEET
1B	USE & CARE GUIDE
2A	W11573371 Whirlpool Refrigerator Door Hinge
2	W10546298 Whirlpool Refrigerator Door Hinge
3A	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
10	WPW10141622 Whirlpool Leveler
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	W10770878 Whirlpool Refrigerator Door Hinge
14A	W11417064 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP489442 Whirlpool Refrigerator Screw
18	CABINET (NOT A SERVICEABLE PART)
19	COVER, UNIT
20	W10851579 Whirlpool Refrigerator Filler
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	WP2174706 Whirlpool Refrigerator Pin Hitch
24A	W10465767 Whirlpool Refrigerator Cover
24	W10465768 Whirlpool Hinge Cover
25	WPW10601149 Whirlpool Refrigerator Fitting
26	WP1106508 Whirlpool Refrigerator Gasket
27	W11195038 Whirlpool Refrigerator Water Tube
28	W10801011 Whirlpool Refrigerator Reservoir
29	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
30	W10844267 Whirlpool Refrigerator Housing
31	WPW10306392 Whirlpool Refrigerator Filter Cover
