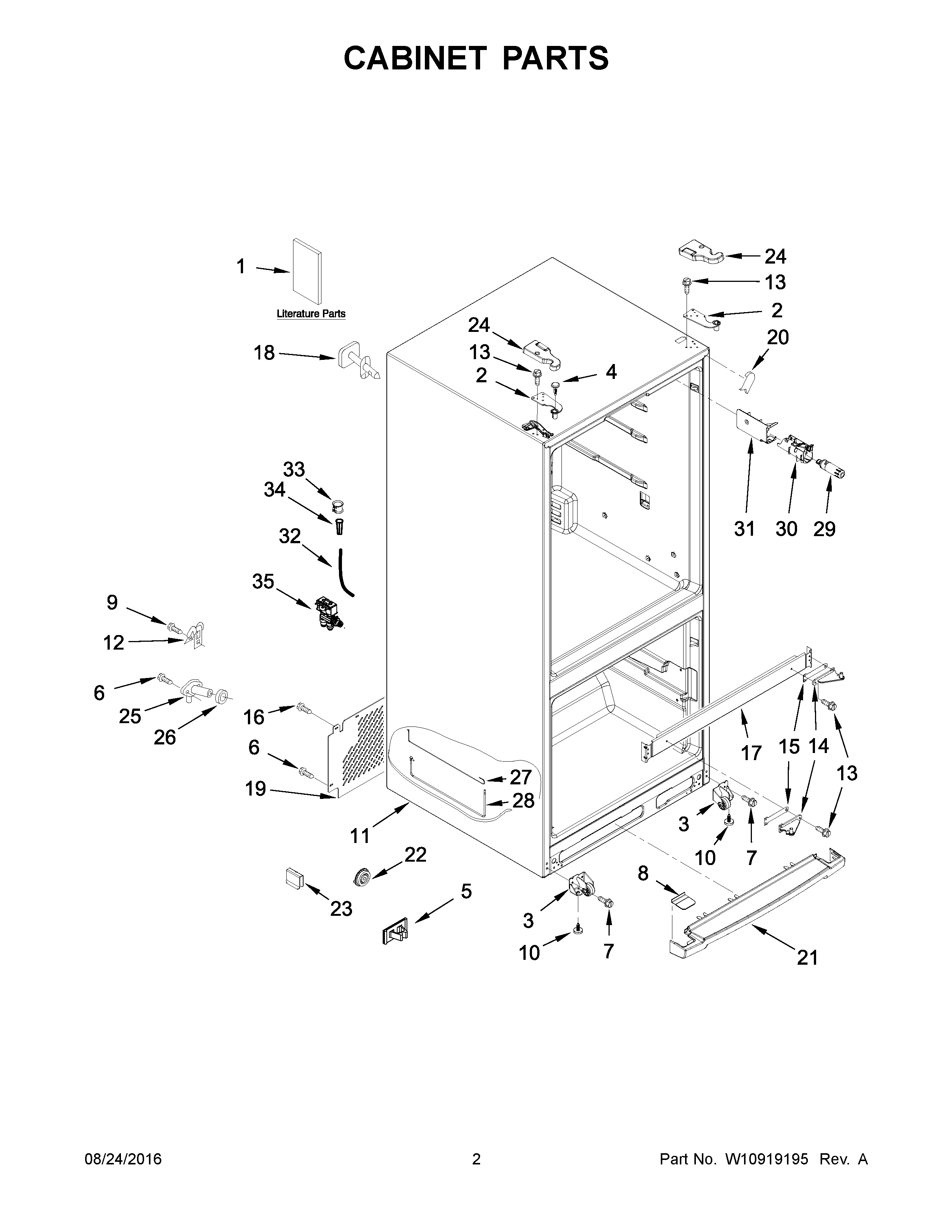

IX5BBEXDS01 02 – CABINET PARTS

IX5BBEXDS01 02 – CABINET PARTS

Written by

in

IX5BBEXDS01 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1AENERGY GUIDE
1BUSE & CARE GUIDE
1CModular Icemaker Service Sheet
2W10546298 Whirlpool Refrigerator Door Hinge
2AW11573371 Whirlpool Refrigerator Door Hinge
3WPW10359256 Whirlpool Cabinet Roller
3AWPW10359255 Whirlpool Cabinet Wheel
4WPW10520307 Whirlpool Refrigerator Replacement Plug Button
5W11501419 Whirlpool Refrigerator Clip
6WP488729 Whirlpool Refrigerator Door Screw
8WPW10353932 Whirlpool Refrigerator Grille Endcap
10WPW10141622 Whirlpool Leveler
12549193 Whirlpool Refrigerator Power Clamp
13WP489497 Whirlpool Screw
14W10770878 Whirlpool Refrigerator Door Hinge
14AW11417064 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WP489442 Whirlpool Refrigerator Screw
18CABINET (NOT A SERVICEABLE PART)
19COVER, UNIT
20W10851579 Whirlpool Refrigerator Filler
21WPW10353935 Whirlpool Refrigerator Grille
22W10331226 Whirlpool Refrigerator Clip
23WP2174706 Whirlpool Refrigerator Pin Hitch
24AW10465767 Whirlpool Refrigerator Cover
24W10465768 Whirlpool Hinge Cover
25WPW10601149 Whirlpool Refrigerator Fitting
26WP1106508 Whirlpool Refrigerator Gasket
27W11195038 Whirlpool Refrigerator Water Tube
28W10801011 Whirlpool Refrigerator Reservoir
29EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
30W10844267 Whirlpool Refrigerator Housing
31WPW10306392 Whirlpool Refrigerator Filter Cover
32WPW10496649 Whirlpool Refrigerator Water Tube
33W10861184 Whirlpool Refrigerator Clamp
344387491 Whirlpool Refrigerator Insert
35WPW10279866 Whirlpool Refrigerator Inlet Valve
