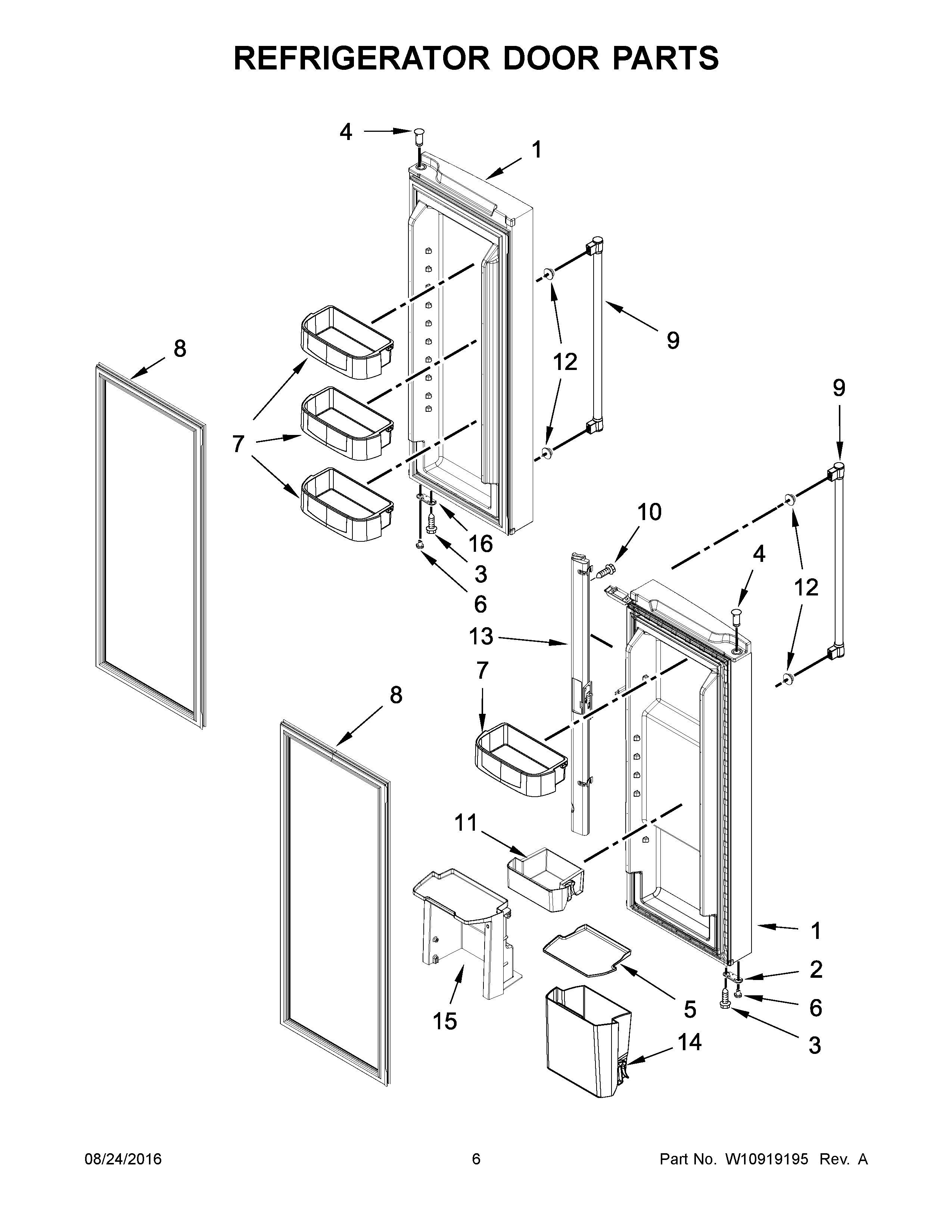

IX5BBEXDS01 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	LW10721542 Whirlpool Refrigerator Door Assembly
1	LW10721548 Whirlpool Refrigerator Door FIP
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4	W11189115 Whirlpool Refrigerator Thimble
5	WPW10317192 Whirlpool Refrigerator Mat
6	WPW10470155 Whirlpool Refrigerator Door Closing Cam
7	WPW10308869 Whirlpool Door Bin
8	GASKET-FIP
9	WPW10202821 Whirlpool Refrigerator Handle
10	W10854958 Whirlpool Refrigerator Screw
11	WPW10326335 Whirlpool Refrigerator Cantilever Bin
12	WPW10170540 Whirlpool Screw
13	WPW10624450 Whirlpool Refrigerator Mullion Rail
14	WPW10411219 Whirlpool Refrigerator Bin
15	WPW10317224 Whirlpool Refrigerator Container
16	WPW10397055 Whirlpool Refrigerator Hinge Bracket
