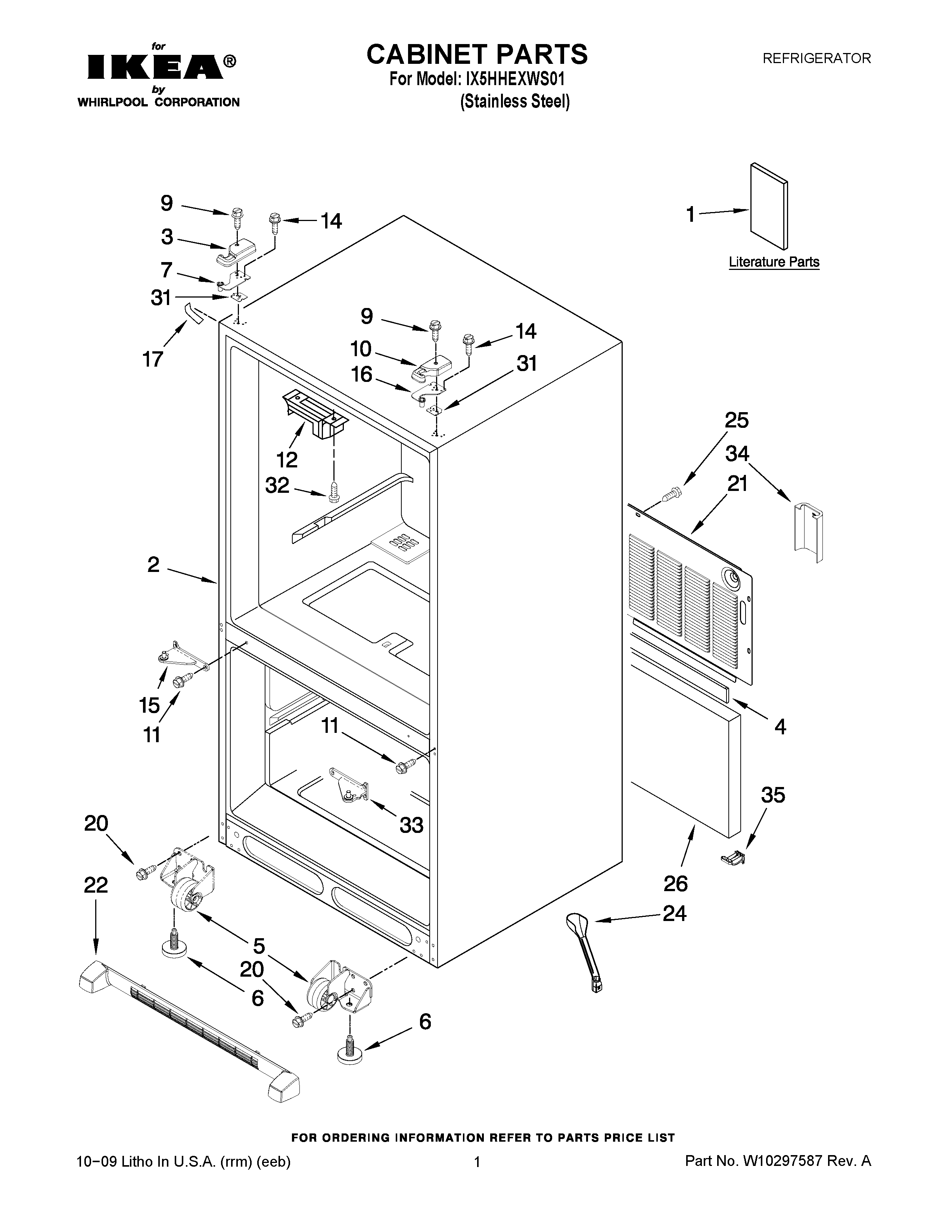

IX5HHEXWS01 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	USE & CARE GUIDE
1	Tech Sheet
2	CABINET (NOT A SERVICEABLE PART)
3	B5759655 Whirlpool Refrigerator Gasket
4	Gasket
5	WPW10515762 Whirlpool Refrigerator Cabinet Roller
5	WPW10515763 Whirlpool Refrigerator Cabinet Roller
6	W11177593 Whirlpool Leveling Feet
7	WP12566607ED Whirlpool Refrigerator Door Hinge
9	WP8281196 Whirlpool Screw
10	Cover, Right Hinge (Black)
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
15	W10918164 Whirlpool Refrigerator Door Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
20	67006564 Whirlpool Refrigerator Screw
21	W10211854 Whirlpool Refrigerator Back Cover
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24	W10619951 Whirlpool Drain Tube with Grommet
25	67006425 Whirlpool Refrigerator Screw
26	INSULATION, SOUND
31	Shim, Hinge
32	WP7101P126-60 Whirlpool Screw
33	W10918168 Whirlpool Refrigerator Door Hinge
34	W10208592 Whirlpool Refrigerator Valve Cover
35	SWEEP, WATER VALVE
