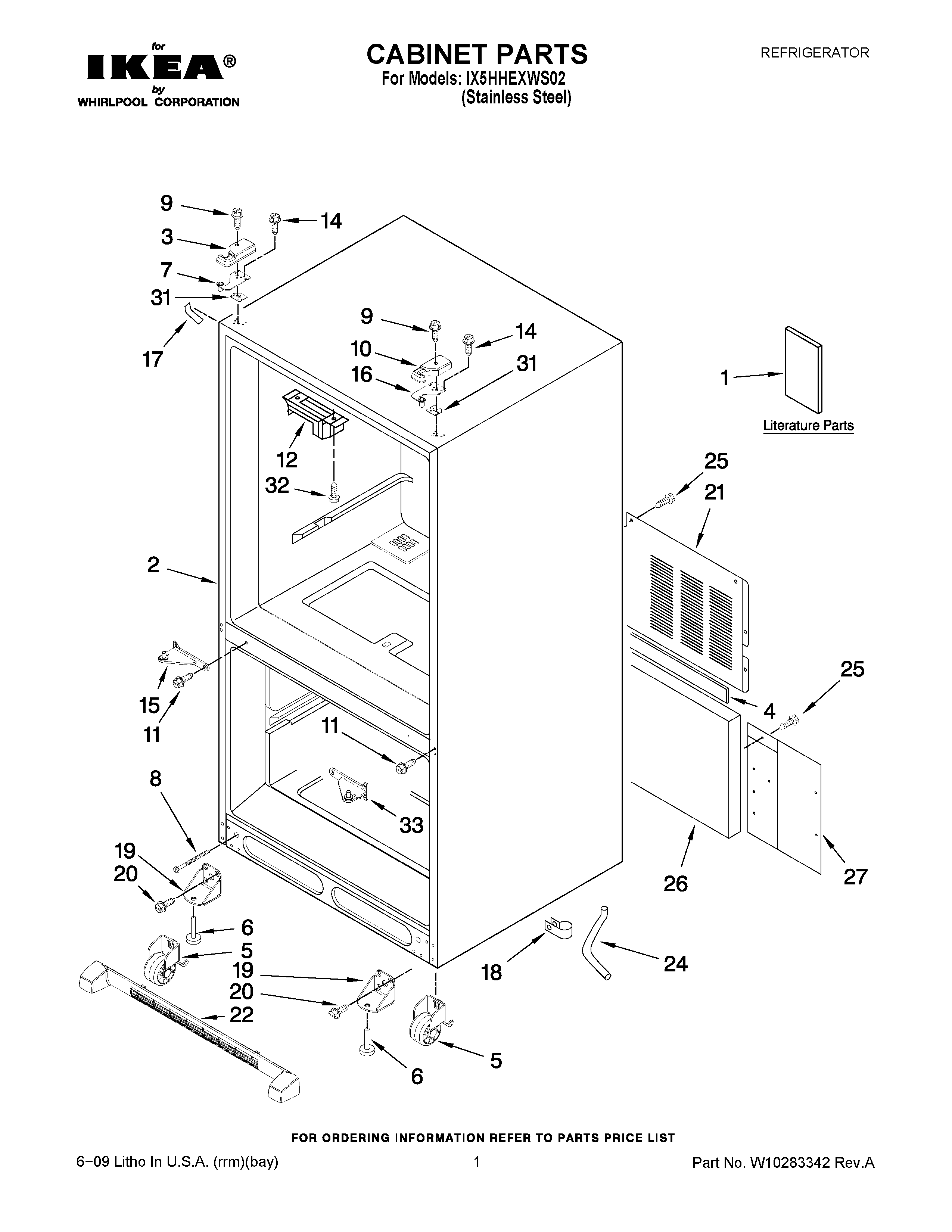

IX5HHEXWS02 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
1	Energy Guide
2	CABINET (NOT A SERVICEABLE PART)
3	Cover, Left Hinge (Black)
4	Gasket
5	ROLLER ASSY.(REAR)
6	W11177593 Whirlpool Leveling Feet
7	WP12566607ED Whirlpool Refrigerator Door Hinge
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	Cover, Right Hinge (Black)
11	WP489349 Whirlpool Refrigerator Screw
12	WP67003405 Whirlpool Pivot Block
15	W10918164 Whirlpool Refrigerator Door Hinge
16	WP12566606ED Whirlpool Refrigerator Door Hinge
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Clip, Drain Tube
19	12906303WD Whirlpool Refrigerator Bracket
20	67006564 Whirlpool Refrigerator Screw
21	COVER, UNIT
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24	W10164397 Whirlpool Refrigerator Drain Tube
25	67006425 Whirlpool Refrigerator Screw
26	67003796 Whirlpool Refrigerator Fiber Acoustic
27	Cover, Water Valve
31	Shim, Hinge
32	WP7101P126-60 Whirlpool Screw
33	W10918168 Whirlpool Refrigerator Door Hinge
