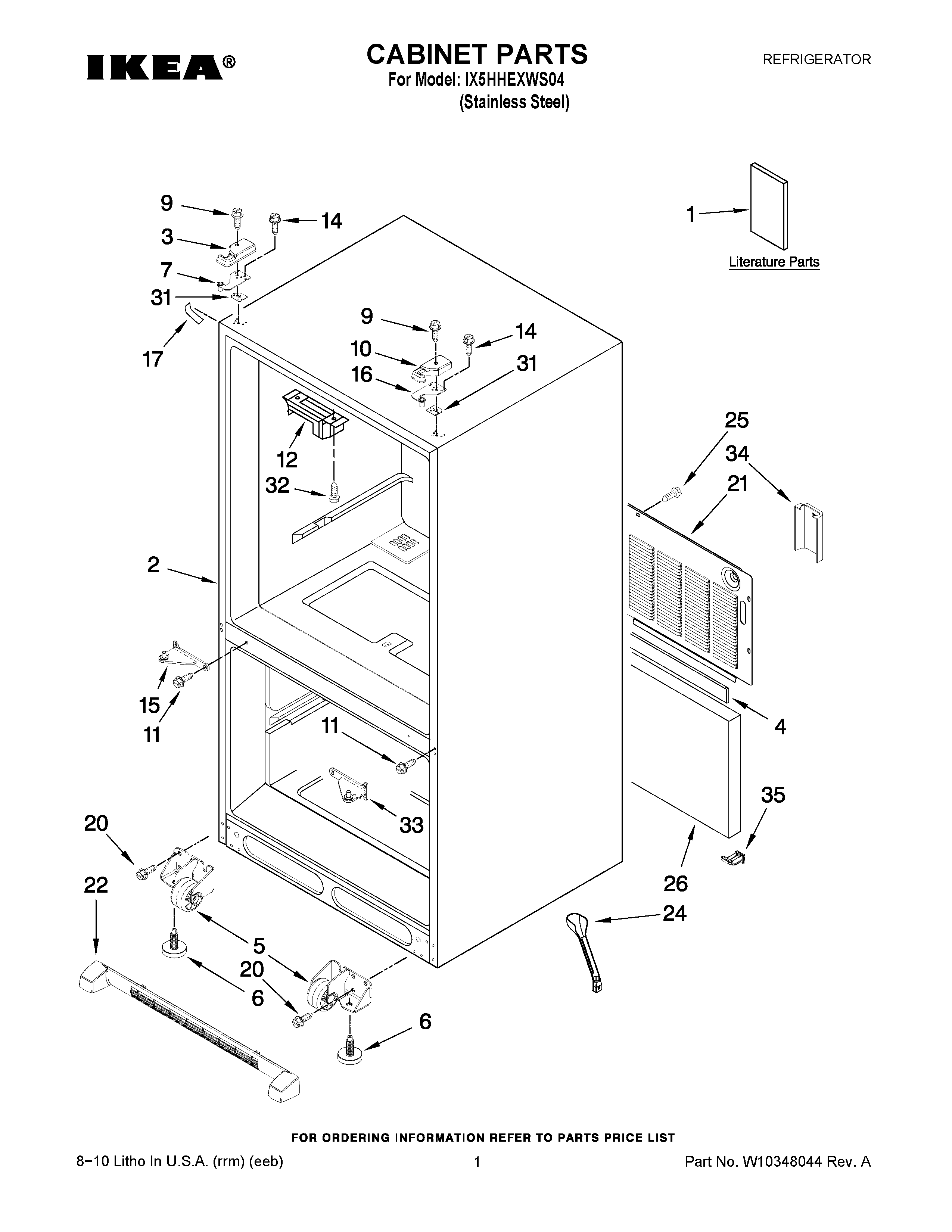

IX5HHEXWS04 01 – CABINET PARTS

IX5HHEXWS04 01 – CABINET PARTS

Written by

in

IX5HHEXWS04 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1ENERGY GUIDE
2CABINET (NOT A SERVICEABLE PART)
3COVER, LEFT HINGE (BLACK)
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7WP12566607ED Whirlpool Refrigerator Door Hinge
9WP8281196 Whirlpool Screw
10Cover, Right Hinge (Black)
11WP489349 Whirlpool Refrigerator Screw
12WP67003405 Whirlpool Pivot Block
15W10918164 Whirlpool Refrigerator Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
2067006564 Whirlpool Refrigerator Screw
21W10211854 Whirlpool Refrigerator Back Cover
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
31Shim, Hinge
32WP7101P126-60 Whirlpool Screw
33W10918168 Whirlpool Refrigerator Door Hinge
34W10208592 Whirlpool Refrigerator Valve Cover
35SWEEP, WATER VALVE
