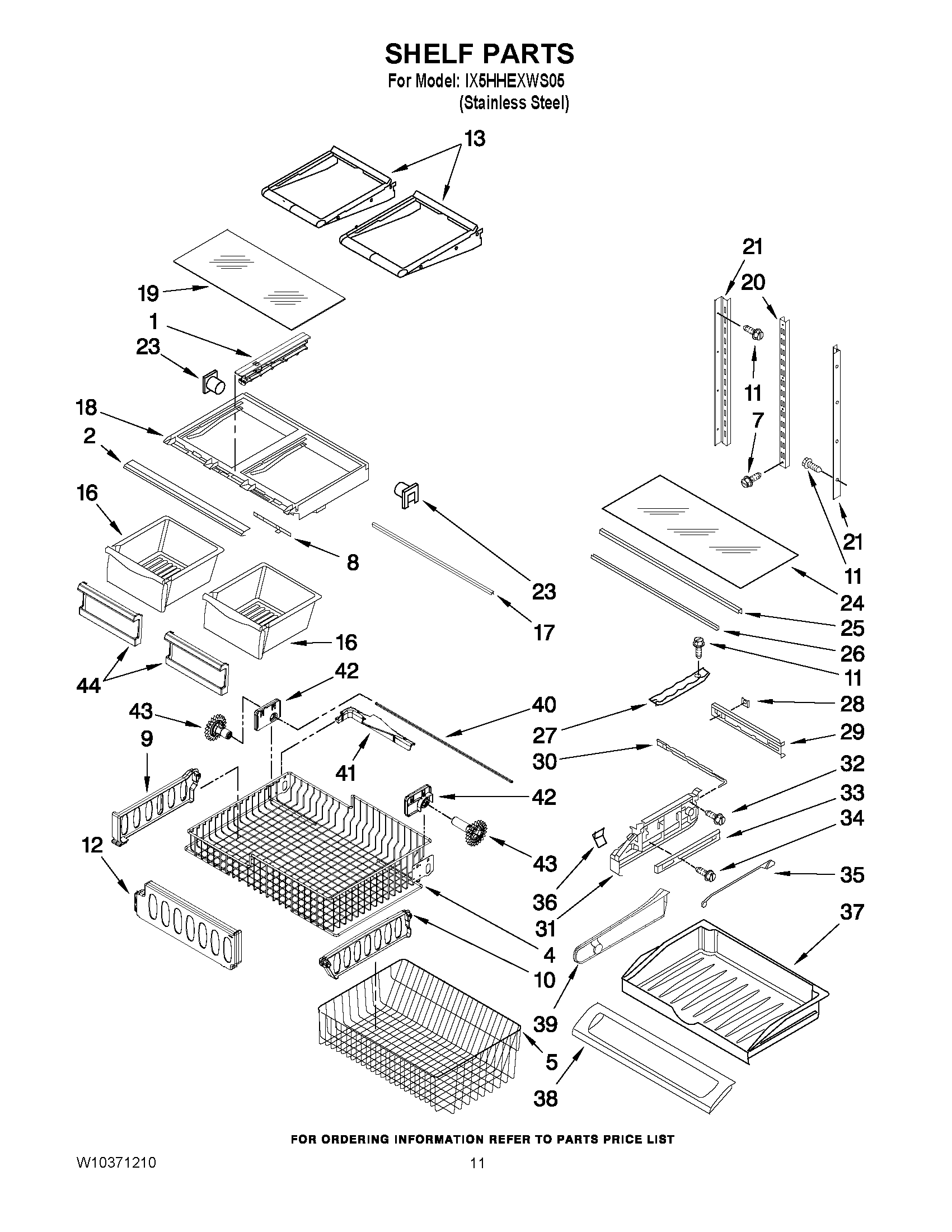

IX5HHEXWS05 07 – SHELF PARTS

IX5HHEXWS05 07 – SHELF PARTS

Written by

in

IX5HHEXWS05 07 – SHELF PARTS

Products

Position	Product
1	WPW10326469 Whirlpool Drawer Slide Rail
2	WPW10231345 Whirlpool Refrigerator Shelf Trim
4	WPW10348246 Whirlpool Refrigerator Freezer Basket
5	Basket, Freezer (Lower)
7	W10215666 Whirlpool Refrigerator Screw
8	SLIDE
9	W10241046 Whirlpool Refrigerator Divider
10	W10847995 Whirlpool Divider Assembly
11	67006425 Whirlpool Refrigerator Screw
12	W10171558 Whirlpool Refrigerator Divider
13	W10205737 Whirlpool Refrigerator Glass Shelf
16	WP67004515 Whirlpool Crisper Drawer
17	WP12642303WD Whirlpool Refrigerator Drawer Support
18	WPW10329866 Whirlpool Frame
19	WP67006704 Whirlpool Glass Crisper Cover
20	W10273463 Whirlpool Refrigerator Ladder
21	W10251971 Whirlpool Ladder Assembly
23	WP13062602 Whirlpool Refrigerator Support
24	W11033333 Whirlpool Glass Shelf
25	WP67006010 Whirlpool Refrigerator Shelf Trim
26	WP12227305WD Whirlpool Drawer Support
27	WP67001719 Whirlpool Refrigerator Track
28	67002329 Whirlpool Refrigerator Pantry Gasket
29	12656202 Whirlpool Refrigerator Housing
30	WP67003793 Whirlpool Refrigerator Temperature Slide
31	W10874836 Whirlpool Endcap Assembly Left Hand and Right
32	WP98165 Whirlpool Screw
33	WPW10235370 Whirlpool Refrigerator Glide
34	WP67006415 Whirlpool Refrigerator Screw
35	WP67003795 Whirlpool Refrigerator Temperature Control Bar
36	W11498983 Whirlpool Refrigerator Knob
37	WP67003531 Whirlpool Drawer Assembly
38	W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
39	WP67002759 Whirlpool Refrigerator Divider
40	W11173556 Whirlpool Refrigerator Shaft
41	W10149389 Whirlpool Refrigerator Handle
42	W10348260 Whirlpool Refrigerator Bracket
42	W10348259 Whirlpool Refrigerator Bracket Assembly
43	WPW10474715 Whirlpool Refrigerator Gear
43	WPW10474716 Whirlpool Refrigerator Gear
44	WP67005923 Whirlpool Refrigerator Front Cover
