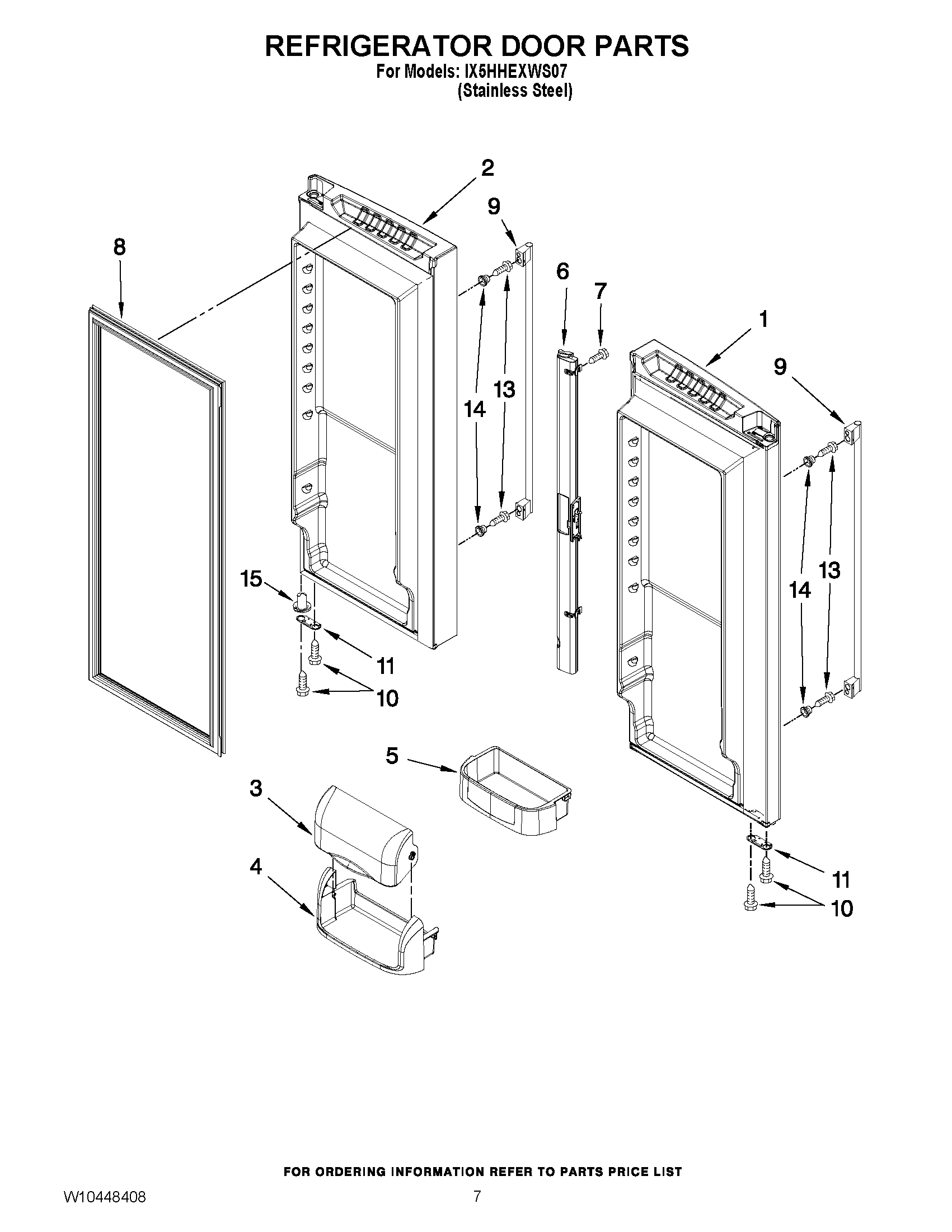

IX5HHEXWS07 05 – REFRIGERATOR DOOR PARTS

IX5HHEXWS07 05 – REFRIGERATOR DOOR PARTS

Written by

in

IX5HHEXWS07 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS STEEL)
2DOOR, RIGHT (STAINLESS STEEL)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
5WPW10289494 Whirlpool Refrigerator Cantilever Bin
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9WPW10202821 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
13SCREW
14WP67006113 Whirlpool Stud Bolt
15WP67003639 Whirlpool Refrigerator Closer
