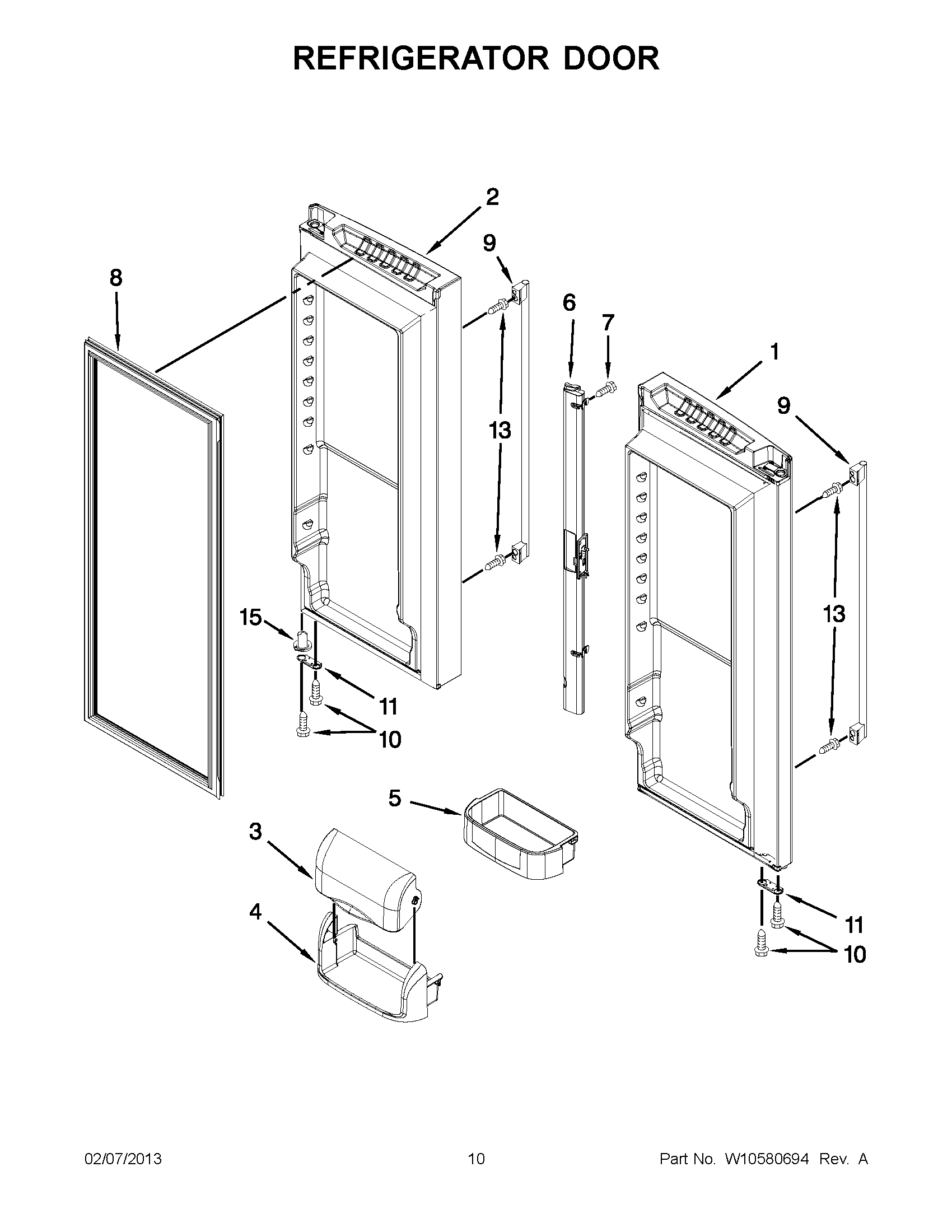

IX5HHEXWS10 05 – REFRIGERATOR DOOR

IX5HHEXWS10 05 – REFRIGERATOR DOOR

Written by

in

IX5HHEXWS10 05 – REFRIGERATOR DOOR

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS STEEL)
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
5WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
6WP12722803B Whirlpool Door Guide
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP
9WPW10202821 Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11708403 Whirlpool Door Stop
12W10190541 Whirlpool Refrigerator Crisp Mount
13WPW10661886 Whirlpool Refrigerator Door Handle Screw
15WP67003639 Whirlpool Refrigerator Closer
