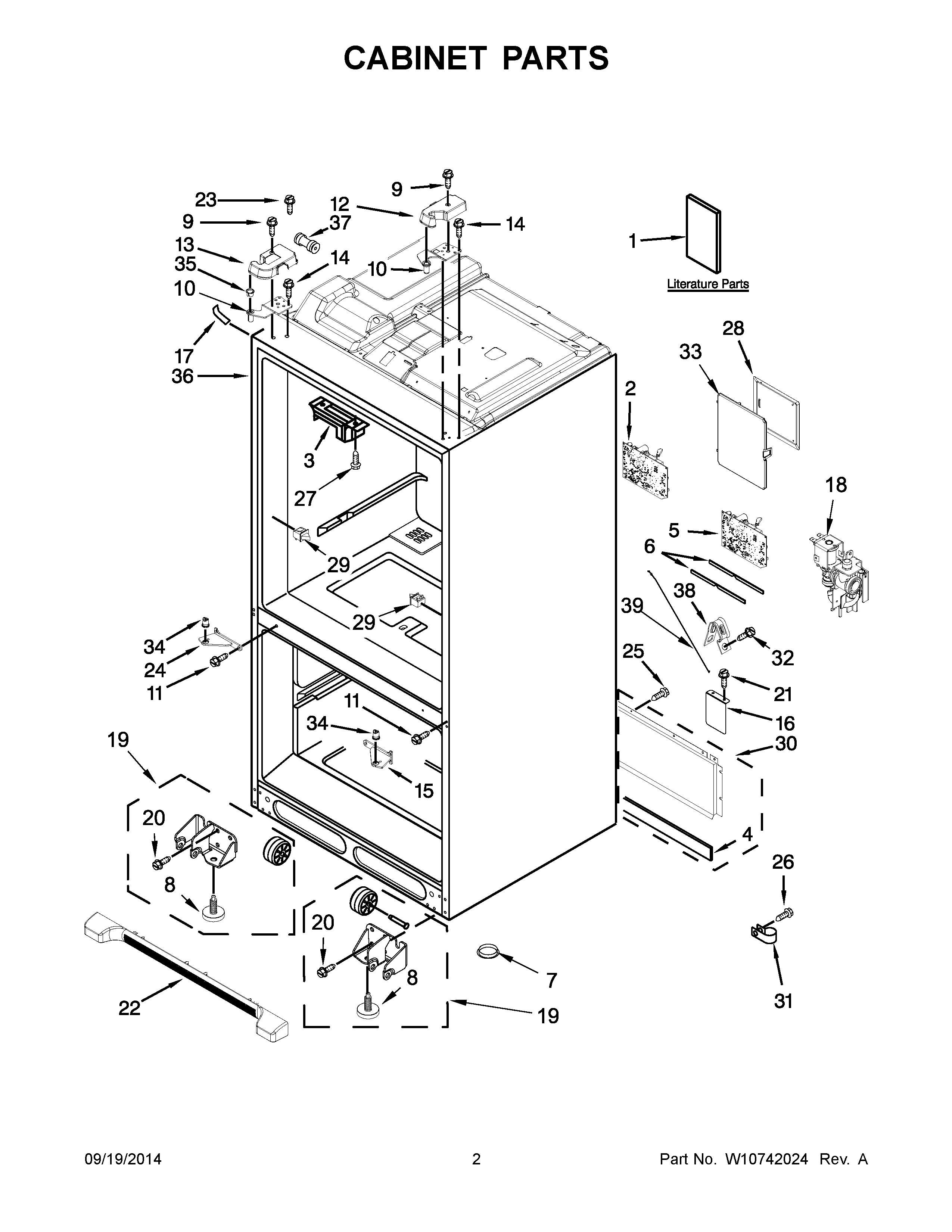

IX7DDEXDSM00 02 – CABINET PARTS

IX7DDEXDSM00 02 – CABINET PARTS

Written by

in

IX7DDEXDSM00 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1BTECH SHEET
1AENERGY GUIDE
2WPW10453401 Whirlpool Refrigerator Electronic Control Board
3WPW10344432 Whirlpool Pivot Block
4W10505487 Whirlpool Refrigerator Gasket
5WPW10589838-includeCORE Whirlpool WPW10589838 Refrigerator Electronic Control Board + Core
6W10415341 Whirlpool Refrigerator Gasket
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10AW11592404 Whirlpool Refrigerator Door Hinge
10W11592405 Whirlpool Door Hinge
11WP67006380 Whirlpool Screw
12WPW10407158 Whirlpool Refrigerator Cover Assembly
13WPW10471618 Whirlpool Refrigerator Cover
14WPW10308751 Whirlpool Screw
15W11240748 Whirlpool Refrigerator Door Hinge
16W10336736 Whirlpool Refrigerator Cover
17WP12587703AP Whirlpool Refrigerator Filler
18W10865826 Whirlpool Refrigerator Water Inlet Valve
19AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21WP33001882 Whirlpool Screw
22WPW10637671 Whirlpool Refrigerator Front Grille
23W11214483 Whirlpool Refrigerator Screw
24W10878115 Whirlpool Refrigerator Door Hinge
2667006425 Whirlpool Refrigerator Screw
27W10854958 Whirlpool Refrigerator Screw
28WPW10485658 Whirlpool Cover Assembly
29W11396033 Whirlpool Refrigerator Rocker Switch
30W11482027 Whirlpool Refrigerator Back Cover
31W11456069 Whirlpool Refrigerator Clamp
32SCREW
33W10277839 Whirlpool Refrigerator Cover
34COUPLER, DOOR
35W10212137 Whirlpool Refrigerator Grommet
36CABINET (NOT A SERVICEABLE PART)
37WP2300868 Whirlpool Refrigerator Fitting
38549193 Whirlpool Refrigerator Power Clamp
39W11308813 Whirlpool Refrigerator Water Tube
